INSTALLATION AT DIFFERENT LEVELS

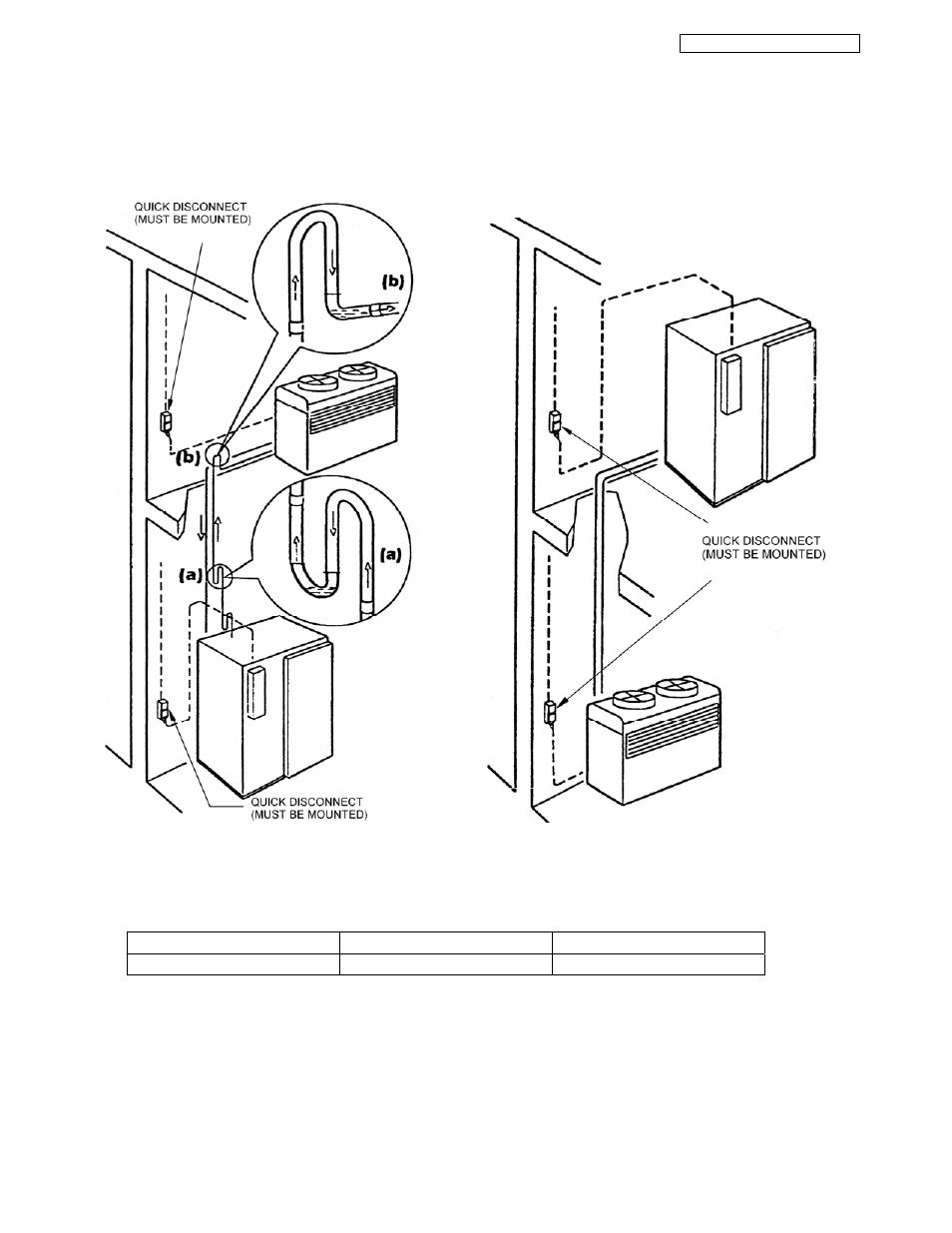

If the remote condensing unit is installed at a higher level than the cabinet (FIG. 6) insert a siphon
in the return line at every 6 ft. of difference in height. If the remote condensing unit is installed at a
lower level than the cabinet (FIG. 7) it is not necessary to insert any siphons.
FIG. 6 FIG. 7
Insert a siphon at the beginning (a) and at the end (b) of each riser
CONNECTION PIPING FOR REMOTE CONDENSING UNITS
MODEL SUPPLY LINE DIA. INTAKE LINE DIA.
AP20BC175-2 1/2" 1-1/8"
