1. INTRODUCTION
Purchasing LTO CONTROL60, you purchase a very powerful equalizer, easy to use and contain in very efficient a
single unit rack package.
Our new CONTROL60 is a versatile and very powerful parametric/graphic PRE-EQ. It is based on 2 extremely
powerful high speed 24
32-bit DSPs and very high quality 20-bit A/D and 24-bit D/A converters, the preserving
pureness of analogue sound in your digital applications. It can be operated in 6 different modes:
Graphic 2 30 Dual Mono 1/3 oct(GR.D.M)
Graphic 2 30 Stereo 1/3 oct(GR.ST)
Graphic 1 60 Mono 1/6 oct(GR.Mono )
Parametric 2 30 Dual Mono(PAR.D.M)
Parametric 2 30 Stereo (PAR.ST)
Parametric 1 60 Mono (PAR.Mono)
allowing the user to obtain the desired sound and timbre out of the musical signals easily.
These algorithms are fully dual mono/stereo algorithms and use very powerful high precision and symmetrical
filters, designed for professional use, able to modify the sound color improving the over
sound quality without all
introducing any loss or distortion.
4
2. FEATURE LIST
Robust and Compact Design
Digital Stereo Equalizer with 24/32-bit High-Speed DSP Processor
Very High-Quality BurrBrown 20-bit A/D and 24 D/A Converters for Pure and Clean Audio Quality
Open Architecture for Easy Software Updates
MPU Control
2
30 or 1 60 Band Parametric Equalizer
Windows Editor for Easy to Use and Powerful Pc Based MIDI Remote Control
SMT Design for Greater Reliability
Optimized Signal Path to Provide Superior Sound
Manufactured Under QS9000, VDA6.1 Quality System
3. CONTROL ELEMENTS

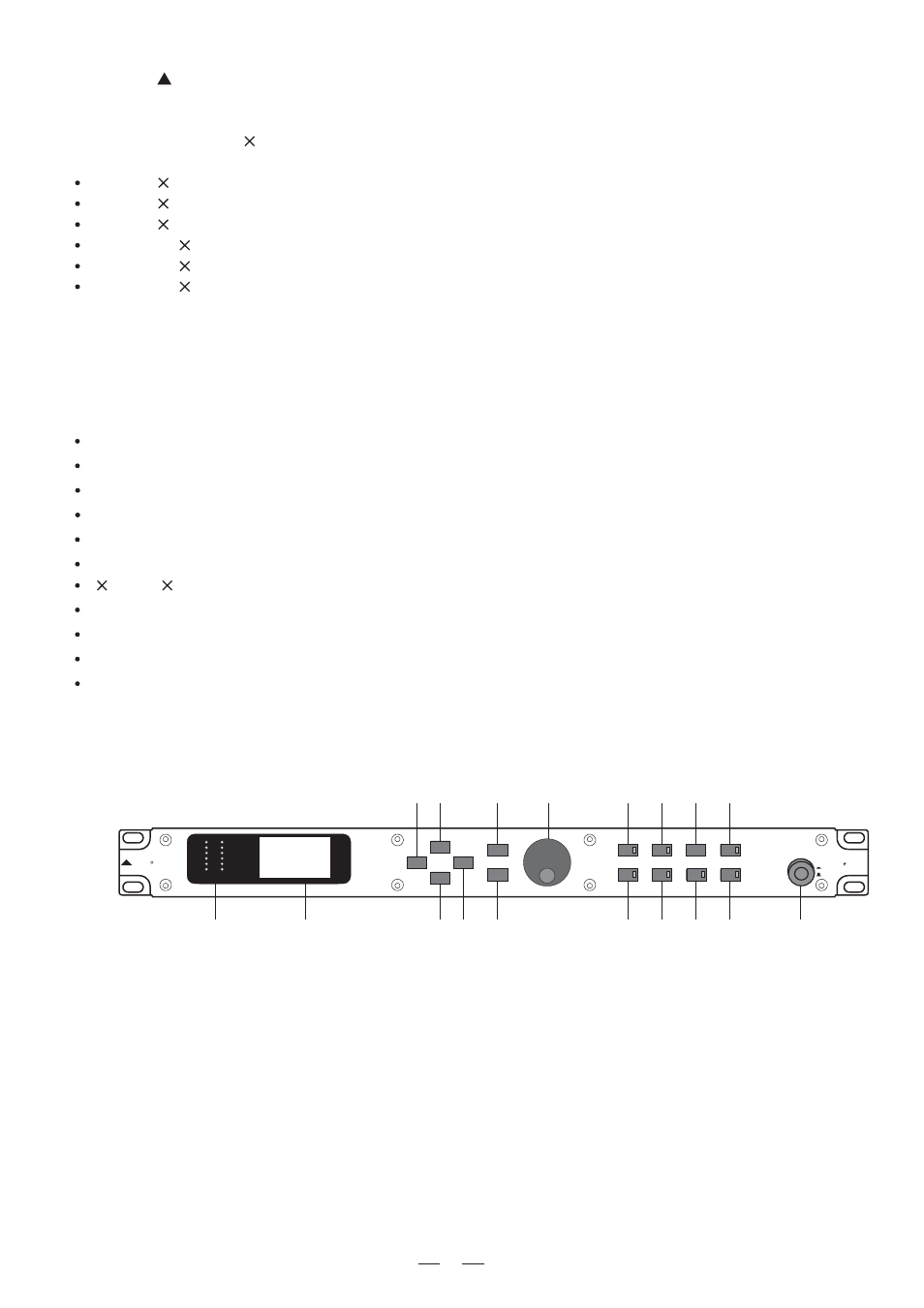

3.1 The Front Panel
1.Power Switch with LED
2.Channel key with LED
3.Flat key
4.Bypass key
LED with
5.Utility key LED with
6.VU meter key LED with
7.AUX key LED with
8.HP/LP key with LED
9.Edit key with LED
10.Dial Control knob
11.Enter key
12.Esc key
18 17 15 14 12 9 8 7 6
5 4 3 2 16 13 11
1
10
Easy to Operate Front Panel Controls and Display
ON
OFF
POWER
UP
LEFT RIGHT
DOWN
ENTER
ESC
UTILITY
EDIT
BYPASS
HP/LP
FLAT
AUX
CHANNEL
VU METER
CONTROL60
30 30 Band
Digital Equalizer
R LTO
-18
-24
-30
-6
-12
CLIP
