Ariens 921012 - DELUXE 27 - Manual (Page 30)

30

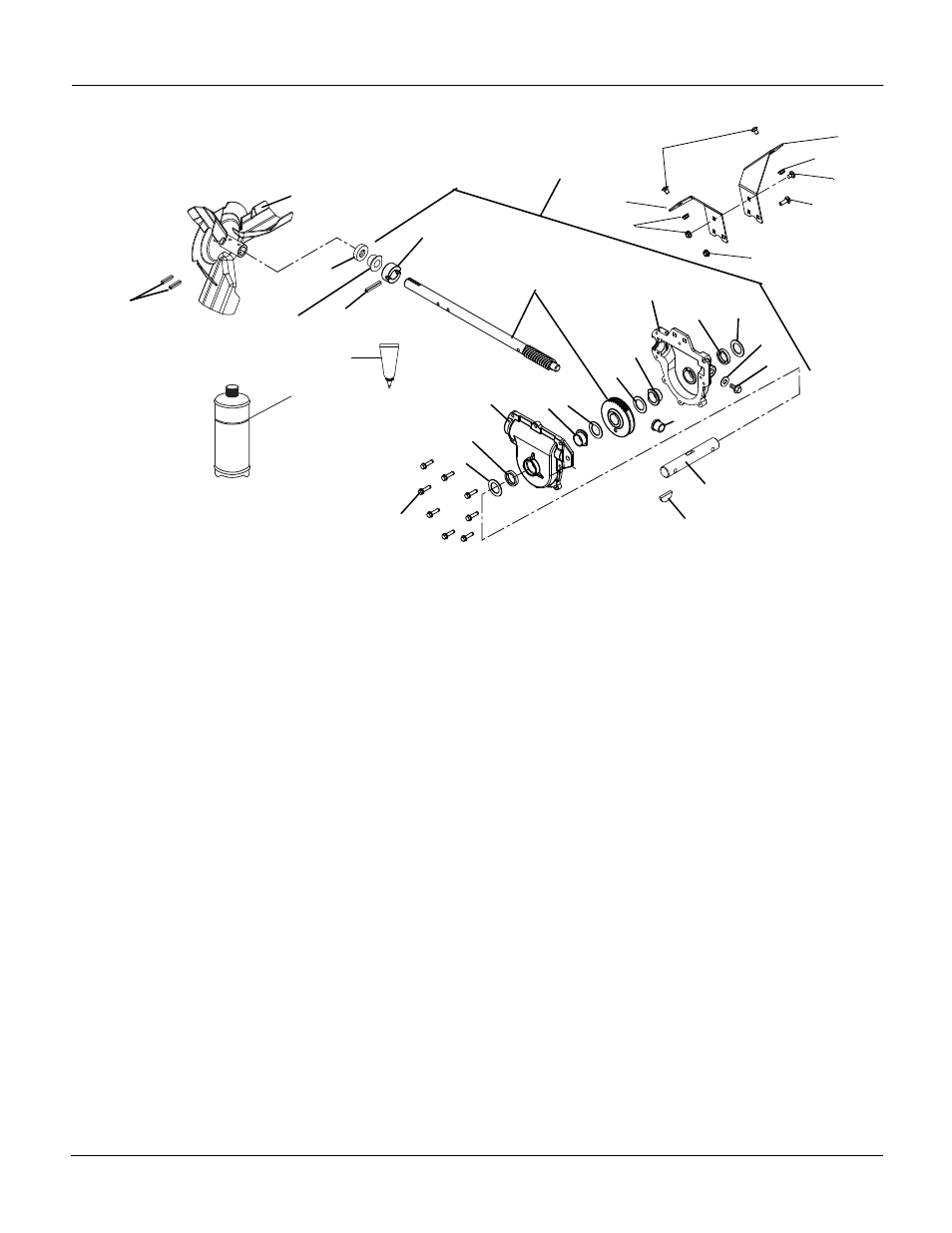

G
EAR
C
ASE
-A
LUMINUM
Model All
Item Part No. Qty. Description
1 05803700 2 Pin, Roll .25 x 1.75
2 00485551 1 Impeller 14" O.D. 3-Blade
3 05600001 1 Seal, Oil
4 05500008 1 Bushing, Flange
5 00255100 1 Thrust Collar
6 05806800 1 Pin, Groove .25 x 1.50 Type E
7 52101000 AR Case, Gear Aluminum (Contains Items 3-6, 8-18, 20, 26)
8 07417000 1 Screw, Tapping Rolok .38-16 x .75
9 05618800 2 Seal, Oil
10 00254100 1 Gearcase, Casting Left Hand
11 05520500 2 Bushing, Flange
12 00031700 1 Locktite 518 Gasket--6ML Tube
13 00254000 1 Gearcase, Casting Right Hand
14 07412400 8 Screw, Tapping Hex Washer Head .25-20 x 1.00
15 06608800 1 Key, Woodruff .25 x .875 Hardened
16 06436300 4 Washer, Flat-Steel 1.010 x 1.505 x .062
17 05500007 1 Bushing, Flange
18 00485400 1 Rake Shaft
19 00008000 1 Ariens 16 Oz. Bottle of L2 Lube (5.0 oz. capacity)
20 52100900 1 Worm Shaft and Gear
21 00485051 1 Bracket, Gearcase Support LH
22 00485151 1 Bracket, Gearcase Support RH
23 06200118 3 Bolt, Round Head Square Short Neck .31-18 x .62
24 06543100 5 Nut, Locking Top Flange .31-18
25 06216100 2 Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
26 06442500 1 Washer, Fiber
PS0283
1
2
3
4
5
6
19
9
10
11
12
20
13
14
15
16
16
9
11
17
18
7
8
23
21
24
22
23
25
24
24
26
16
16
