Page 14
14
W
HEELS
AND
A
XLES

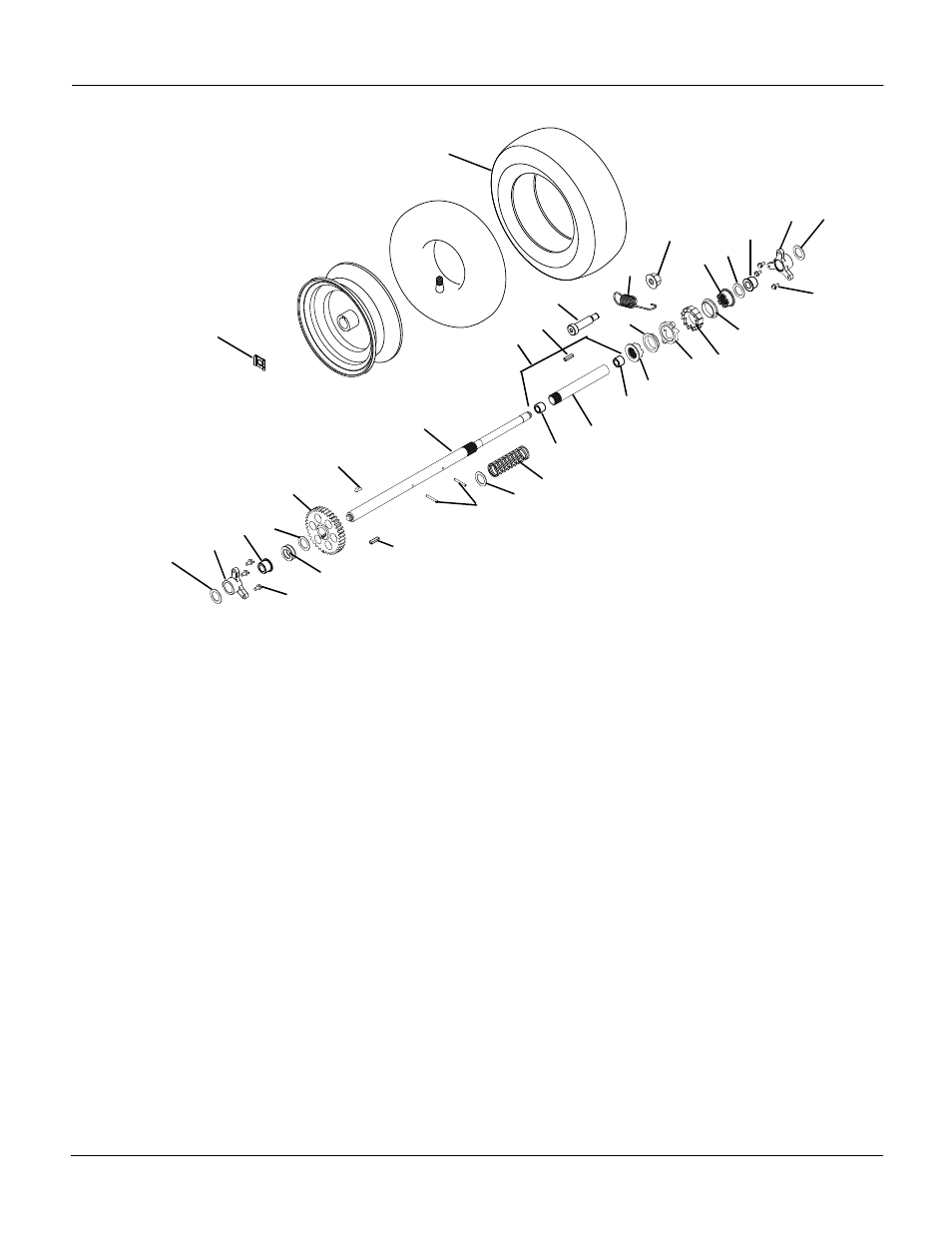

Model 921012, 013, 020,
Item Part No. Qty. Description
1
07100227
1
Tire/Wheel, RH 15 x 5.00-6 Remote
07100228
1
Tire/Wheel, LH 15 x 5.00-6 Remote
07100726
AR
Tire, 15 x 5.00-6 K478
2
05700001
2
Clip, Snap
3
06436300
4
Washer, Flat Steel 1.010 x 1.505 x .062
4
00275100
2
Bushing, Rake Shaft 1"
5
07400034
6
Screw, Tapping Hex Washer Head .25-20 x .50
6
05500122
1
Bushing, Sleeve
7
06601200
1
Woodruff Key .25 x .750 x .313 SAE 91
8
00371000
1
Gear, Spur
9
00865600
1
Axle, Long Clicker
10
00865700
1
Axle, Short Clicker
11
00427700
1
Spring, Compression
12
05800300
2
Pin-Roll .188 x 1.25
13
06600002
2
Key, Rectangular .25 x .188 x 1.00
14
00386900
2
Clutch, Dog Sliding
15
00391100
2
Bushing, Flange
16
00387100
1
Gear, Clutch
17
00387000
1
Gear, Ratchet
18
05500030
2
Bushing, Flange Split Nyliner 1.0" HP
19
08300023
1
Spring, Extension
20
05500023
2
Bushing, Sleeve Bronze
21
52101100
AR
Axle, Clicker With Bushings (Includes 10 and 20)
22
06400332
1
Washer, Flat-Steel 1.010 x 1.250 x .068
23
05900602
1
Bolt, Shoulder .50 x 1.50 .38-16 x .625
24
06542000
1
Nut, Locking-Top-Flange .38-16
