Ariens 921012 - DELUXE 27 - Manual (Page 17)

17

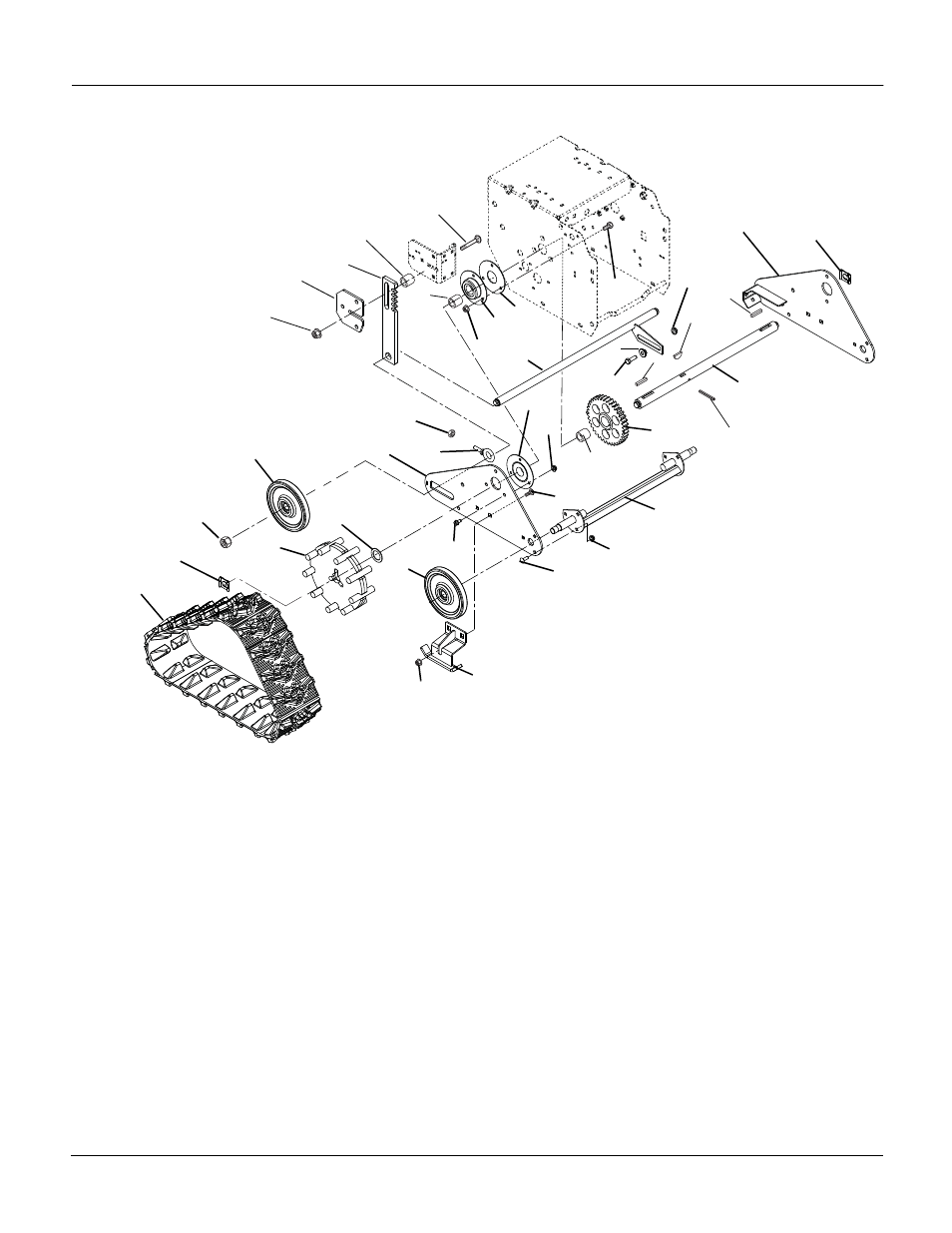

T
RACK AND
A
XLES
Model 921014, 015, 016, 311, 312
Item Part No. Qty. Description
1 00669700 2 Track, Rubber
2 00670351 2 Wheel, Drive-Track
3 06543500 18 Nut, Locking-Top-Flange .25-20
4 05700001 2 Clip, Snap
5 03293600 4 Wheel, Bogie - Single Bearing
6 06219900 6 Bolt, Round Head Square Neck .25-20 x .75 Grade 5
7 03275800 1 Axle, Front
8 05946800 12 Bolt, Hex .25-20 x .75 Grade 5
9 06436300 2 Washer, Flat-Steel 1.010 x 1.505 x .062
10 03375751 1 Side Plate, Right Hand-Track
11 07000040 2 Bolt, Eye
12 03293700 1 Axle, Rear
13 06543100 8 Nut, Locking-Top-Flange .31-18
14 01305900 1 Flange Bushing
15 05946900 1 Bolt, Hex .31-18 x 1.00 Grade 5
16 03291500 1 Axle, Track
17 00371000 1 Gear, Spur
18 06530300 4 Nut, Locking-Nylon .625-18
19 00660751 2 Runner, Guide-Track
20 06215700 4 Bolt, Round Head Square Neck .31-18 x .75 Grade 5
21 06534800 2 Nut, Locking Flange Gr. A .375-16
PS0820
8
2
1
4
9
5
7
10
12
14
13
11
15
16
17
13
19
5
6
20
22
21
23
4
22
8
3
24
28
27
28
26
25
25
13
30
31
29
32
18
3
3
