Page 29
29

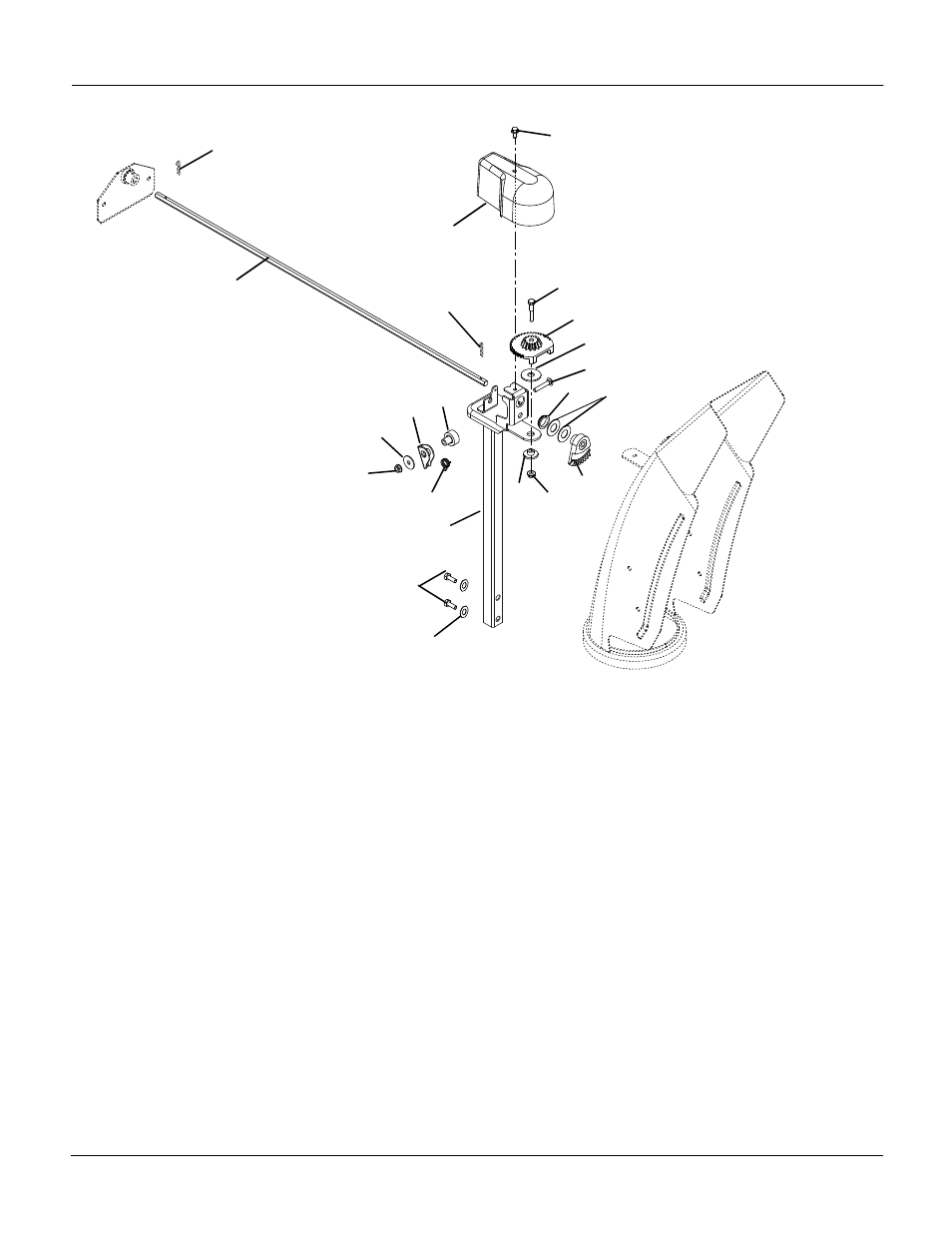

D
ISCHARGE
C
HUTE
Model 921017, 018
Item Part No. Qty. Description
1
00389200
1
Rod, Chute Rotation - Hex
2
00261700
1
Cover, Chute Gear
3
07400034
1
Screw, Tapping Hex Washer Head .25-20 x .50
4
05952500
1
Bolt, Hex .25-20 x 1.50 Grade 5
5
03898700
1
Gear, Chute
6
06222300
1
Bolt, Round Head Square Neck .25-20 x 1.50 Grade 5
7
06400904
1
Washer, Flat Nylon .515 x 1.375 x .093
8
05500027
1
Bushing, Polyliner .75 Snap-in
9
06441400
2
Washer, Flat Steel .754 x 1.125 x .062
10
00184300
1
Gear, Chute - Actuation
11
06543500
2
Nut, Locking Top Flange .25-20
12
05500920
1
Bushing, Flange
13
05958500
2
Bolt, Hex .38-16 x 1.75 Grade 5
14
06308800
2
Washer, Locking .38 x .094
15
06944800
1
Clip, Spring
16
06712900
1
Hairpin, # 7 .094 x 2.31
17
03897451
1
Pedestal, Chute - Quick Stick
18
08300014
1
Spring, Torsion
19
06426600
1
Washer, Flat Steel .281 x 1.00 x .063
20
00180900
1
Arm, Locking
21
05500024
1
Bushing, Lock Arm
1
4
5
7
8
9
10
12
14
15
16
17
20
PS1103
13
11
19
21
3
2
6
11
18
