Ariens 921012 - DELUXE 27 - Manual (Page 13)

13
W
HEELS AND
A
XLES
Model 921011, 019, 305

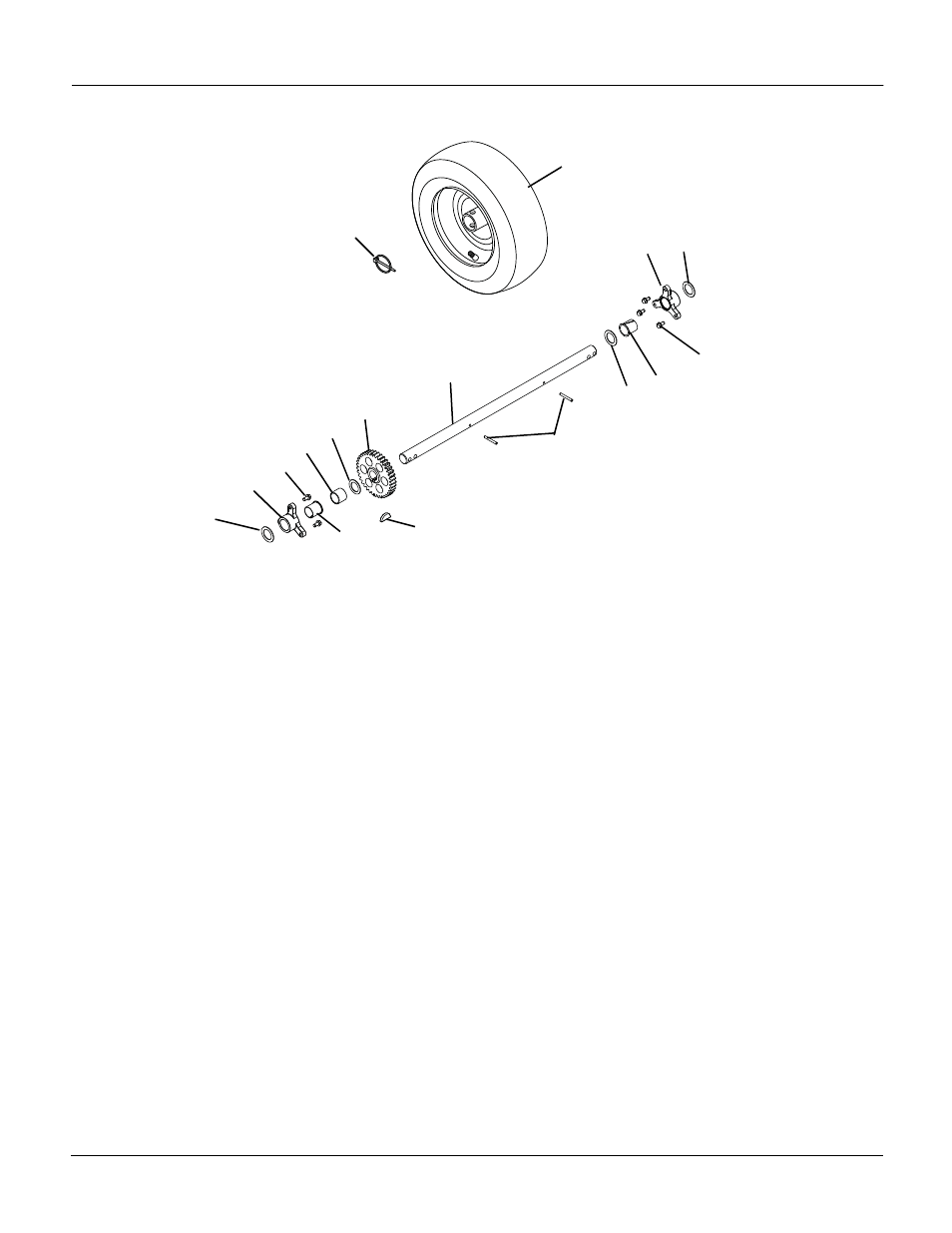

Item Part No. Qty. Description
1 07100225 1 Tire/Wheel, Right Hand 15 x 5.00-6 Pin
07100226 1 Tire/Wheel, Left Hand 15 x 5.00-6 Pin
07100726 AR Tire, 15 x 5.00-6 K478
2 07015800 2 Pin-Lok .31 x 2.00
3 06436300 4 Washer, Flat-Steel 1.010 x 1.505 x .062
4 00275100 2 Bushing, Rake Shaft 1"
5 07400034 6 Screw, Tapping Hex Washer Head .25-20 x .50
6 06601200 1 Key, Woodruff .25 x .750 x .313 SAE 91
7 00371000 1 Gear, Spur
8 05500030 2 Bushing, Flange Split Nyliner 1.0" HP
9 05500122 1 Bushing, Sleeve
10 00658100 1 Axle, 1.00" Solid
11 05800300 2 Pin, Roll .188 x 1.25
1
2
3
4
3
4
5
10
11
6
7
9
3
8
5
8
3
