Chapter 6: Modifying Your Washer
Product Service 1-800-522-7658 40
Installing the Optional Upper Spindle Rack
The Upper Spindle Rack expands the capability of the FlaskScrubber by
providing 30 additional spindles for washing narrow-neck glassware. The rack
may be customized by removing spindles or by installing Multi-Pin Inserts which
hold beakers or other wide mouth glassware.
To install the optional Upper Spindle Rack:

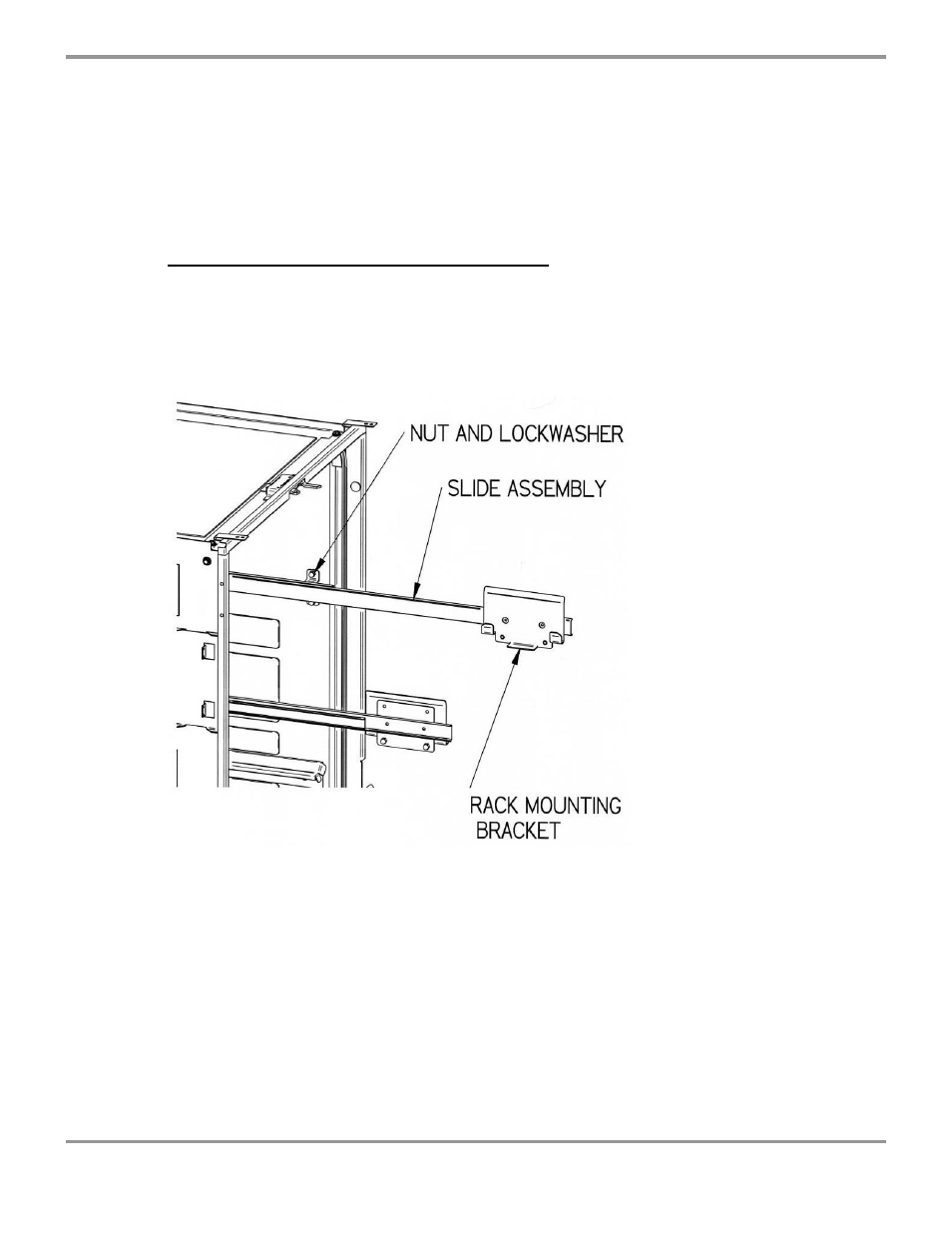

Install the upper rails and the upper spindle rack. See the figure below.
1. Remove the acorn nuts and lockwashers from both upper sides using a 3/8"
wrench. There are 4 on each side.
2. Position brackets on slides over the studs on the sides. The position of the
rack mounting plates must be as shown. Secure the slide assemblies using
lockwashers and acorn nuts removed in Step 1. It may be necessary to
synchronize the travel of the two slides. Pull each slide out firmly to their
maximum travel.
