ACL Cathode B200 Details/Specs - Manual (Page 3)

A Fusion of the Art and Science of Light
Product
(1) For a 7 lamp transformer system refer to our T100 system. For a single lamp standard output ballast system refer to our B100 system.
(2) For multiple selections place a comma after each selection.
High Output
Double Ballast
Cold Cathode
B200
_ _ _ _ _ _
S01
(2)
DI - Dim
ND - Non Dim
S - Surface
R - Recess
Standard Color (s) Dim-able Mount Primary Environment
120V
277V -Special
Order
Note: For a variation (custom) of this product contact ACL to request a variation number and information. S P E C I F I C A T I O N C O D E :
DR - Dry
DP - Damp
See Chart
(1) S01 S
Project Name Linear Feet Date
Architectural Cathode Lighting, Incorporated
ACL INC.
c a t h o d e l i g h t i n g . c o m
5 3 0 1 P a c i f i c B o u l e v a r d
Huntington Park California 90255 USA
Telephone 323.581.8800
Fax 323.581.7971
i n f o @ c a t h o d e l i g h t i n g . c o m
DET
AIL
S
C
ATHODE B200
© 20
10
Ar
chitectural Cat
hode Lighting, Inc.

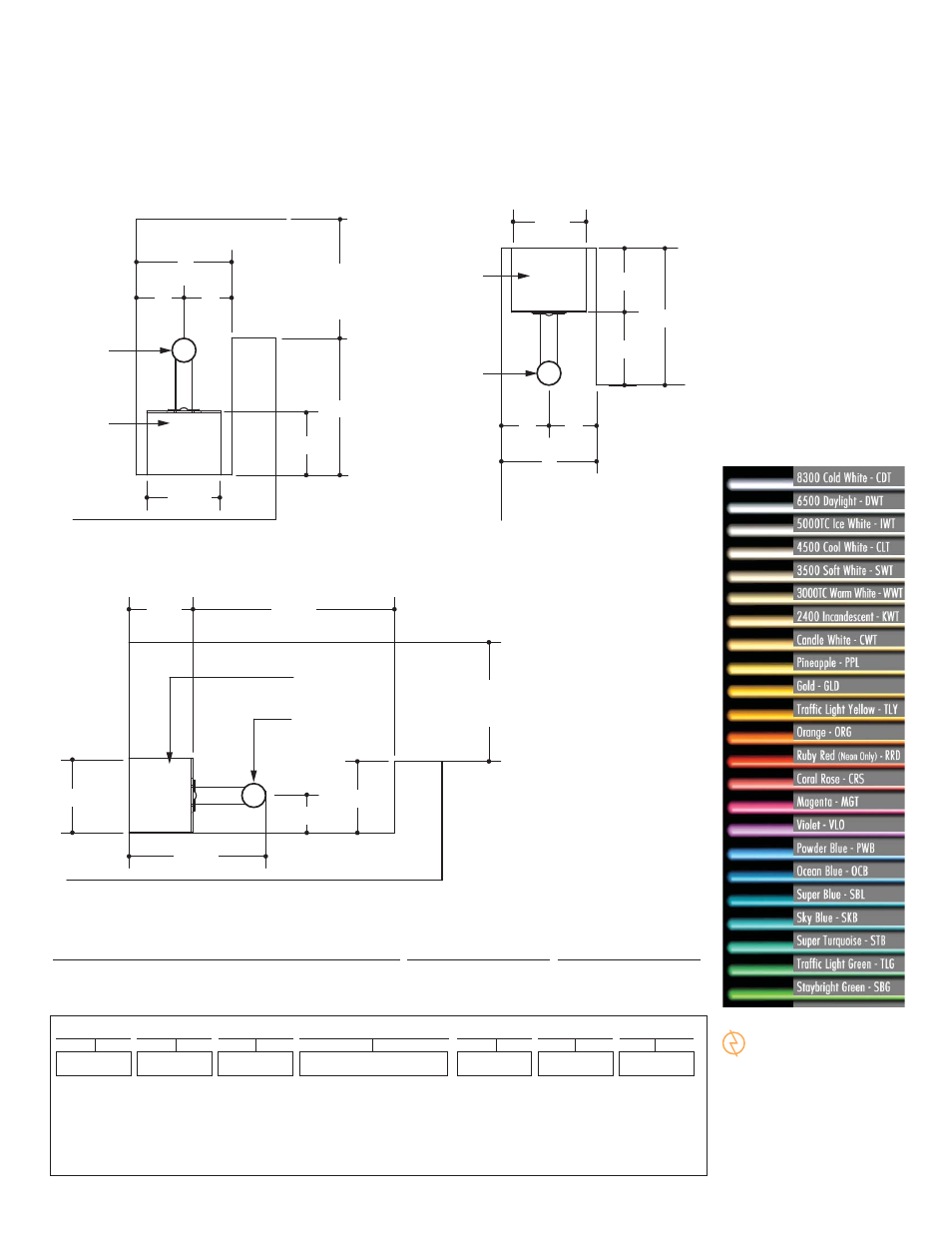

3 1/8"
4"
EQ EQ
25mm Cold
Cathode Lamp
2 3/4"
3"
5 3/4"
3 1/8"
5 3/4"
2 3/4"
4"
EQ EQ
25mm Cold
Cathode Lamp
B200 Surface
Lampholder
6" Min.
Recommended
from 6” to 12”
B200 Surface
Lampholder
3 1/8"
5 3/4"
3"
25MM Cold
Cathode Lamp
B200 Surface
Lampholder
8 1/2" 2 3/4"
1 5/8"
6" Min.
Recommended
from 6” to 12”
C A T H O D E B 2 0 0 P R O D U C T D E T A I L S :
output: High
date: August 21, 2008
sheet description: Surface Details
file: B2details.pdf
page:
3
