1-5 Product Parts Function Description

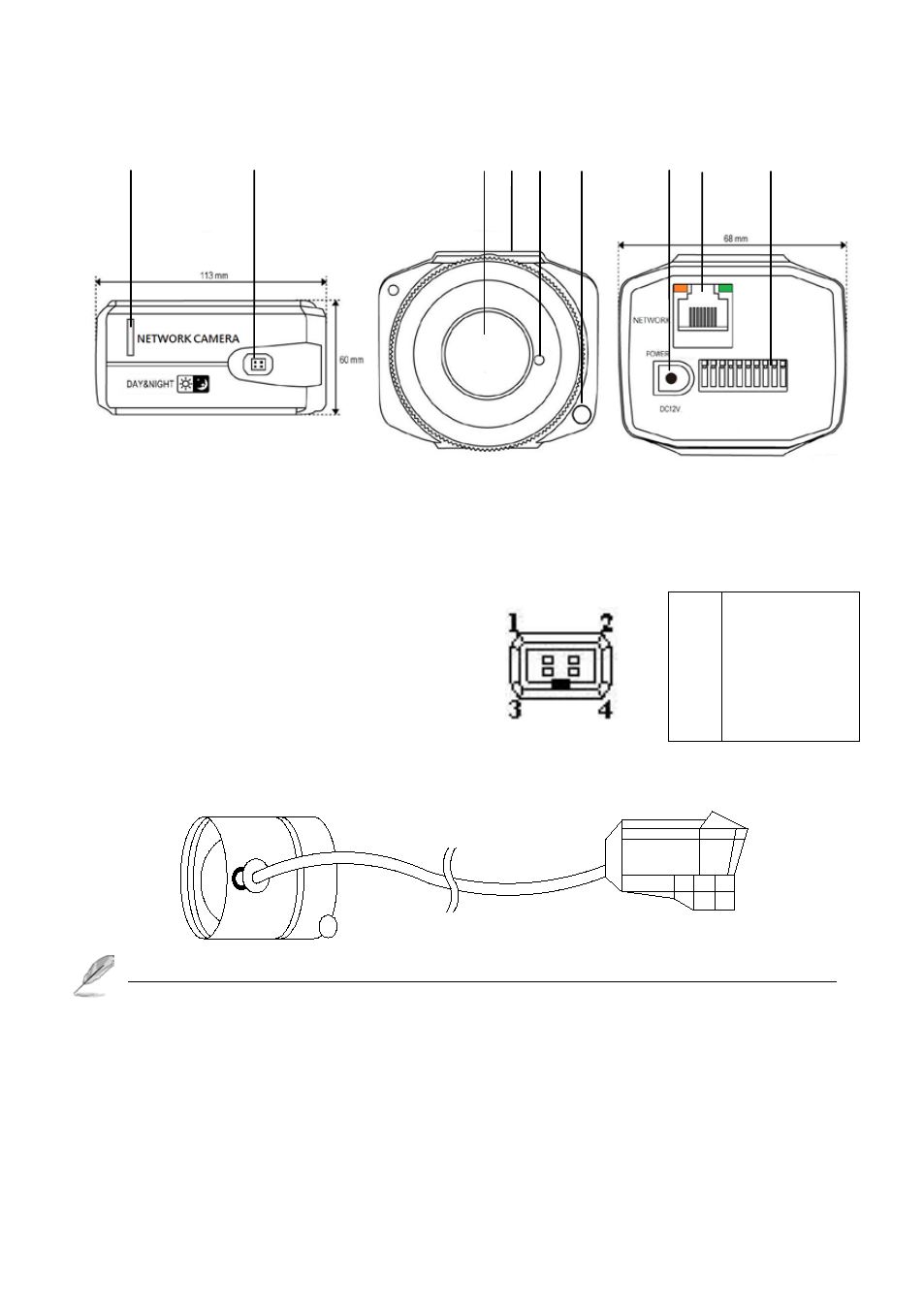

1. Micro SD Slot: Inserts SD card for video/snapshot recording. Max.32GB of SDHD card
supported.
2. Auto IRIS Connector: Connects to lens’s iris control cable.
Auto IRIS Socket: Connect to Auto IRIS Lens
Wipe out a dirty surface of the lens softly with a lens tissue to which you have applied ethanol.
3. Lens Adapter: Mounting C or CS-mount Lens, there is a fix megapixels Lens come with the
camera.
4. Bracket mount hole: Connects to tripod or pan-tilt bracket; there’s another mounting hole located
at the opposite side of IP camera’s body hole.
1
2
3
4
IRIS Control (+)
IRIS Driver (-)
IRIS Control (-)
IRIS Driver (+)
Auto Iris Lens
Connector
