Backplane assembly – Chenbro RM31616 6Gb/s 16-port 3.5 mini-SAS Backplane(80H10331604A0) - Manual User Manual
Page 8
8
16-Port Mini-SAS 6Gb/s Backplane 80H10331604A0 ver. A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

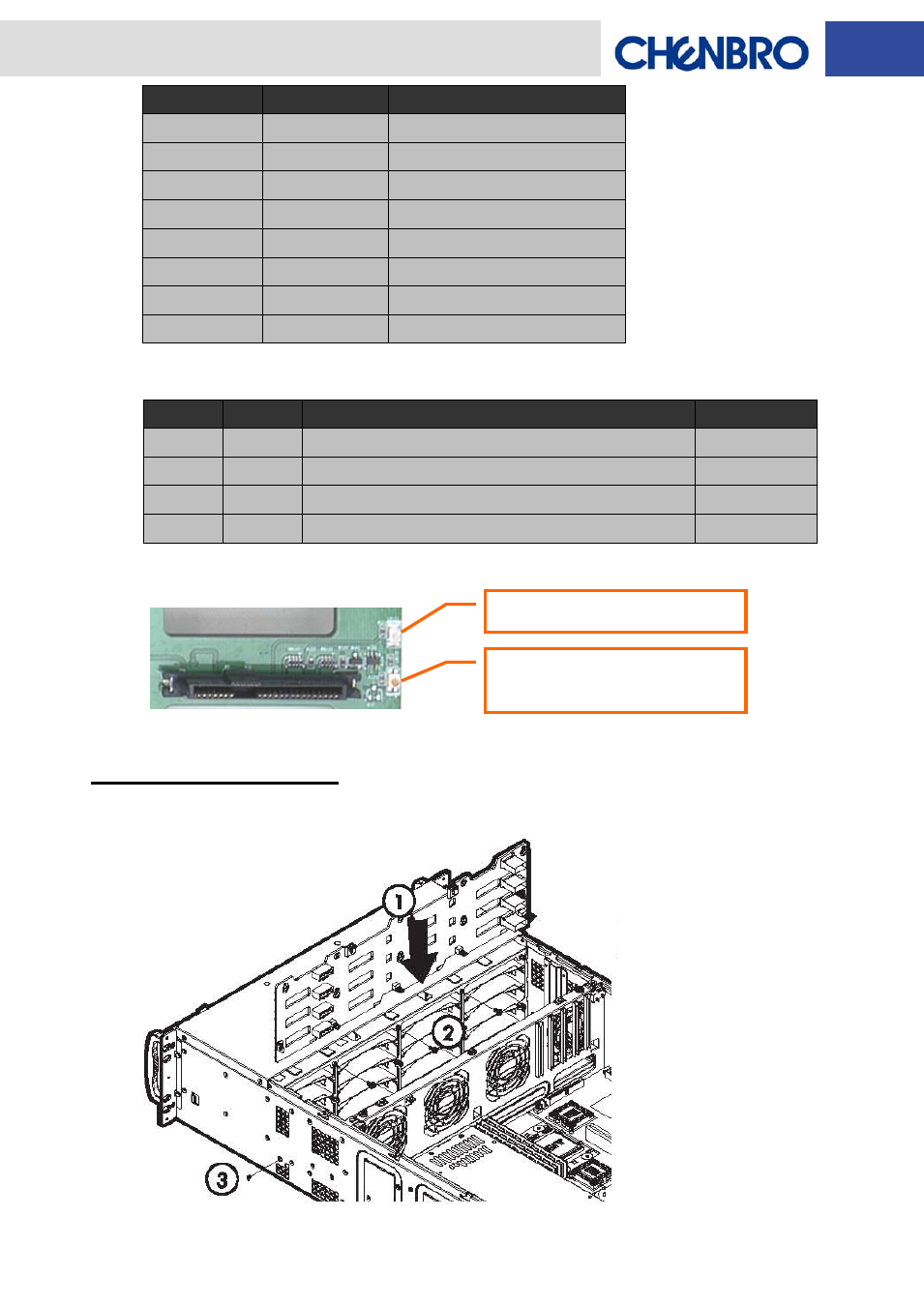

Pin Number
Pin
Signal
A8
Sideband 0
SClock
A9
Sideband 1
SLoad
A10
Sideband 2
Ground
B9
Sideband 3
Ground
B10
Sideband 4
SDataOut
B11
Sideband 5
SDataIn
A11
Sideband 6
Reserved
B8
Sideband 7
*SGPIO Enable / Disable
* The following table shows the SGPIO function which is related to the setting of SW1.
HDD Status Indictor LED
Backplane Assembly
SW-1
SW-2
SGPIO
Pin B8 Signal
On
On
Enable HDD failure and access signal via SGPIO
Low
On
Off
Enable HDD access signal via SGPIO
Low
Off
On
Enable HDD failure signal via SGPIO
Low
Off
Off
Disable HDD failure and access signal via SGPIO
High
1. Insert backplane into chassis
2. Attach 3 screws on back.
3. Attach 1 screw on side.
Blue
LED On - HDD Power On
Green
LED On - HDD active
Red
LED On - HDD failure
