16-Port Mini-SAS 6Gb/s Backplane 80H10331604A0 ver. A0
User’s Manual
15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,
Tel: +886 2 82265500 Fax: +886 2 82265392 Email: [email protected]
w
w
w
.
c
h
e
n
b
r
o
.
c
o
m

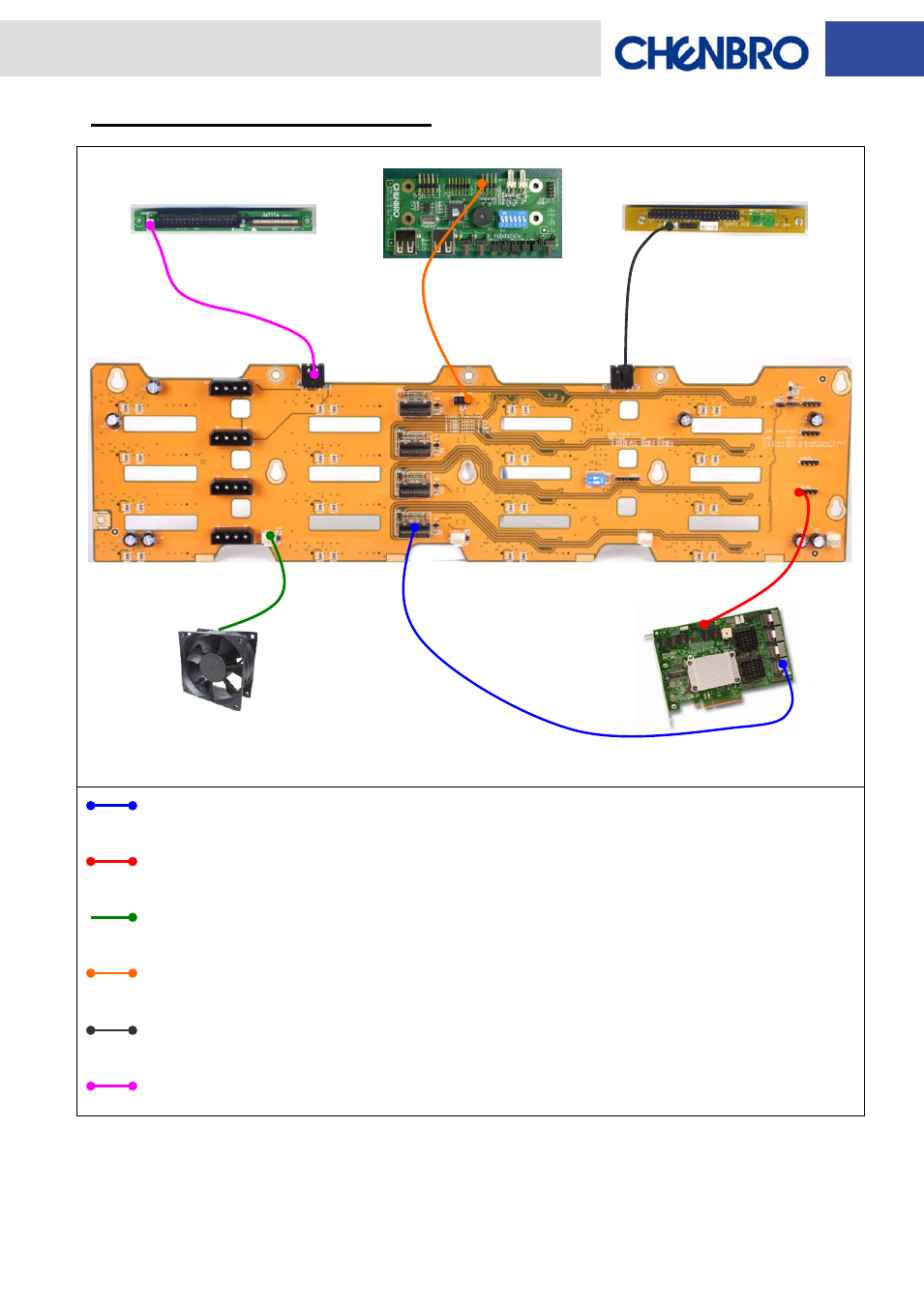

Example for RM31616 Wiring
Mini-SAS cable (BP to Host Adaptor)
HDD Failure Signal cable (if RAID controller support HDD failure signal)
Chassis fans wiring
Fan Signal cable (BP to LED board)
Slim ODD power cable
Slim FDD power cable
Chassis Fan x4
LED Board
SAS RAID / HBA Card
Slim ODD adaptor board
Slim FDD adaptor board
