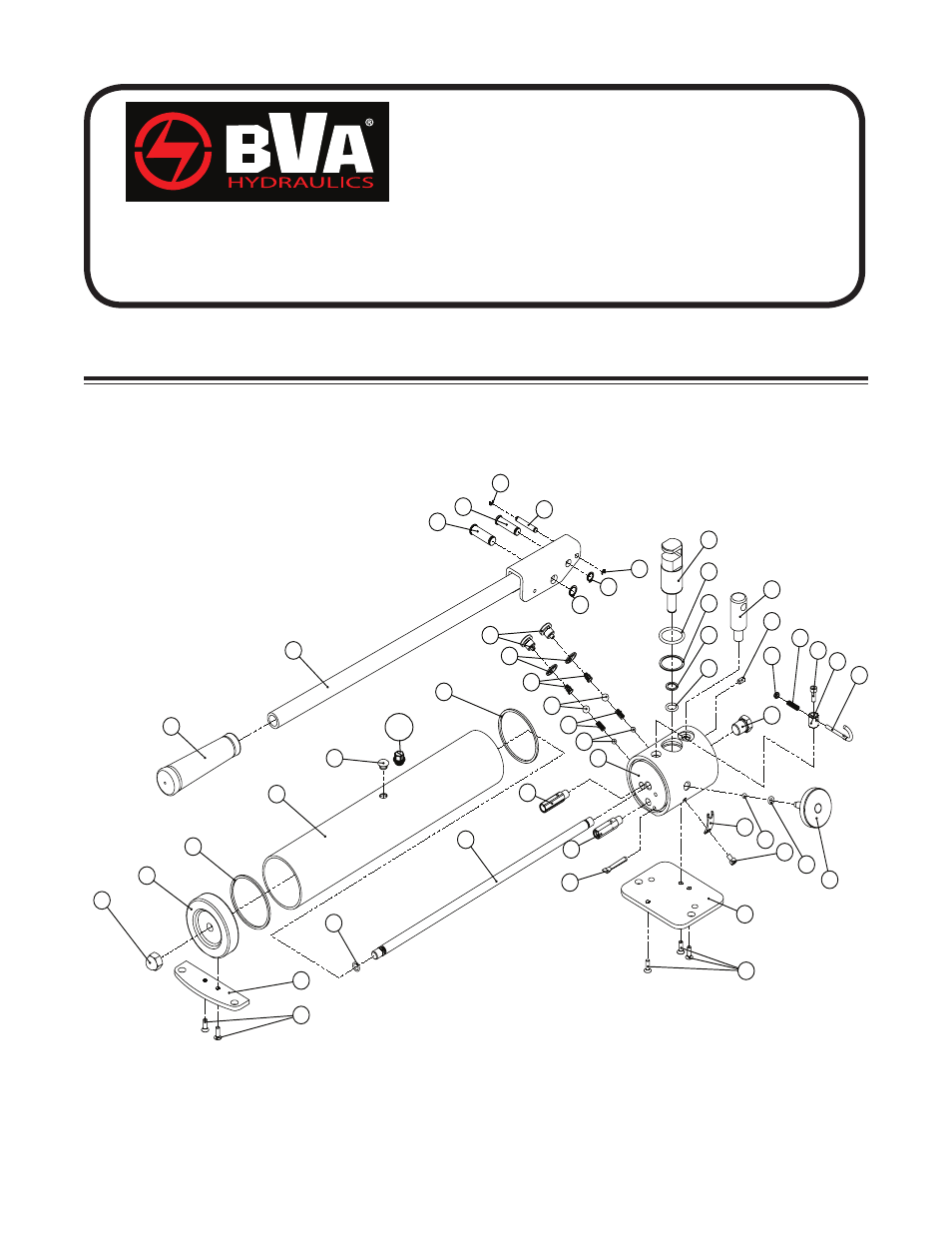

Parts Illustration
Note: Not all components of the pump are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
MODEL: P1000
Hand Pump
Service Parts
