MODELS: H2504, H2506, H2508, H2510, H2512 & H2514
Single Acting Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com

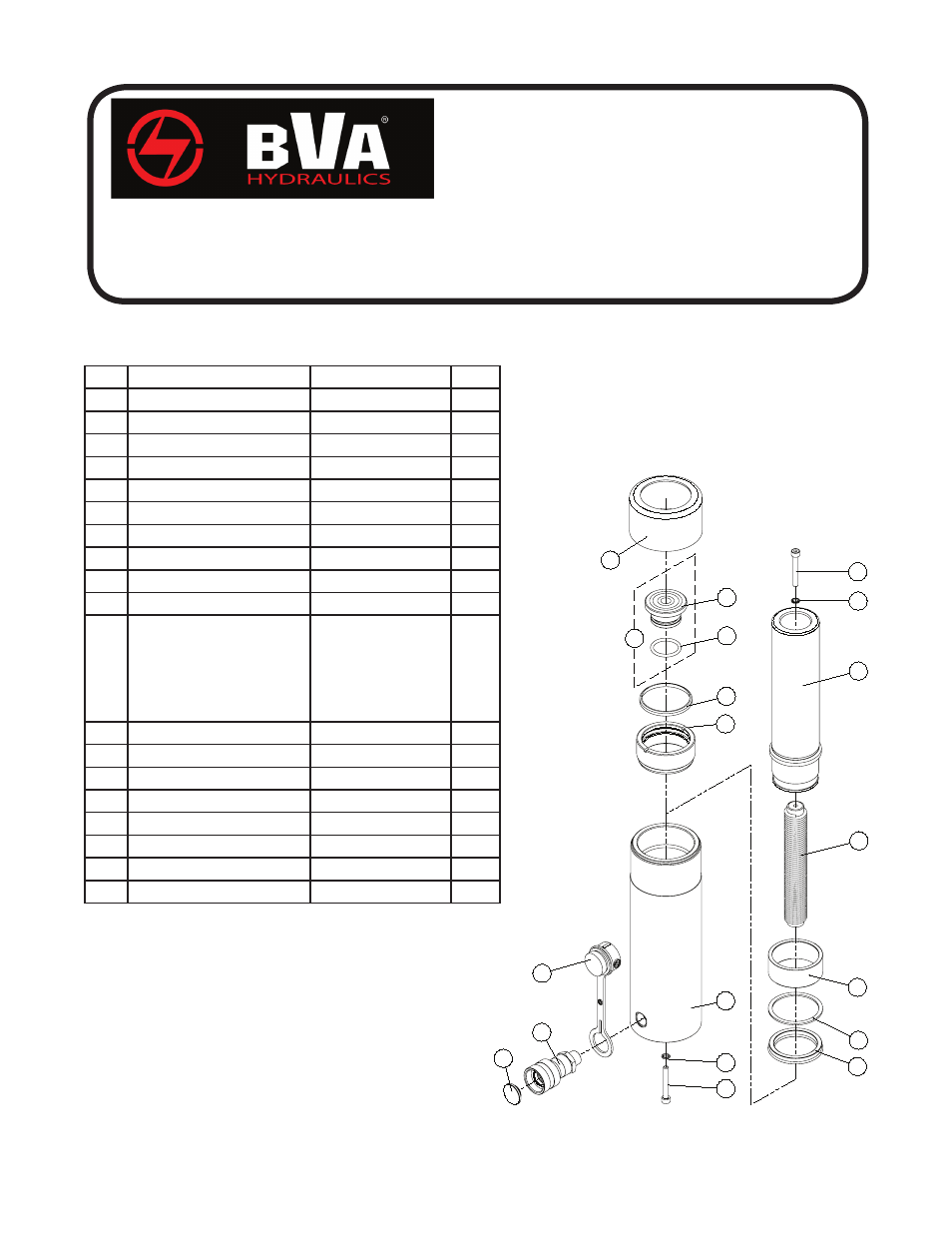

Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and position
in the assembly sequence.
Item
Part Number
Description
Qty
1
N/A
Cylinder
1
2
N/A
Ram
1
3
H25-3-4200-101
Saddle Assy
1
3a
H25-6-1103-106
Saddle
1
3b
*
O-ring
1
4
H25-6-2305-103
Protective Cap
1
5
H25-5-1804-100
Upper Bearing
1
6
*
Dust Seal
1
7
*
Bolt
2
8
*
Special Washer
2
9
H25-4-0204-105 (H2504)
H25-4-0206-109 (H2506)
H25-4-0208-103 (H2508)
H25-4-0210-100 (H2510)
H25-4-0212-104 (H2512)
H25-4-0214-108 (H2514)
Return Spring Assy
1
10
H25-5-1204-102
Bearing
1
11
*
Back-up Ring
1
12
*
U-cup
1
13
H02-4-6001-104
Female Coupler
1
14
H02-4-6003-108
Dust Cover
1
15
H02-6-1008-105
Rubber Plug
1
16
Bolt
1
(*)
H25-3-9901-106
Repair Kit
-
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
7
5
2
9
7
10
1
11
12
8
6
4
8
13
15
14
3b
3a
3
To ensure safe and reliable performance, replace worn
or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.
