15
MODELS: H1006, H1008, H1010 & H1012
Single Acting Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com

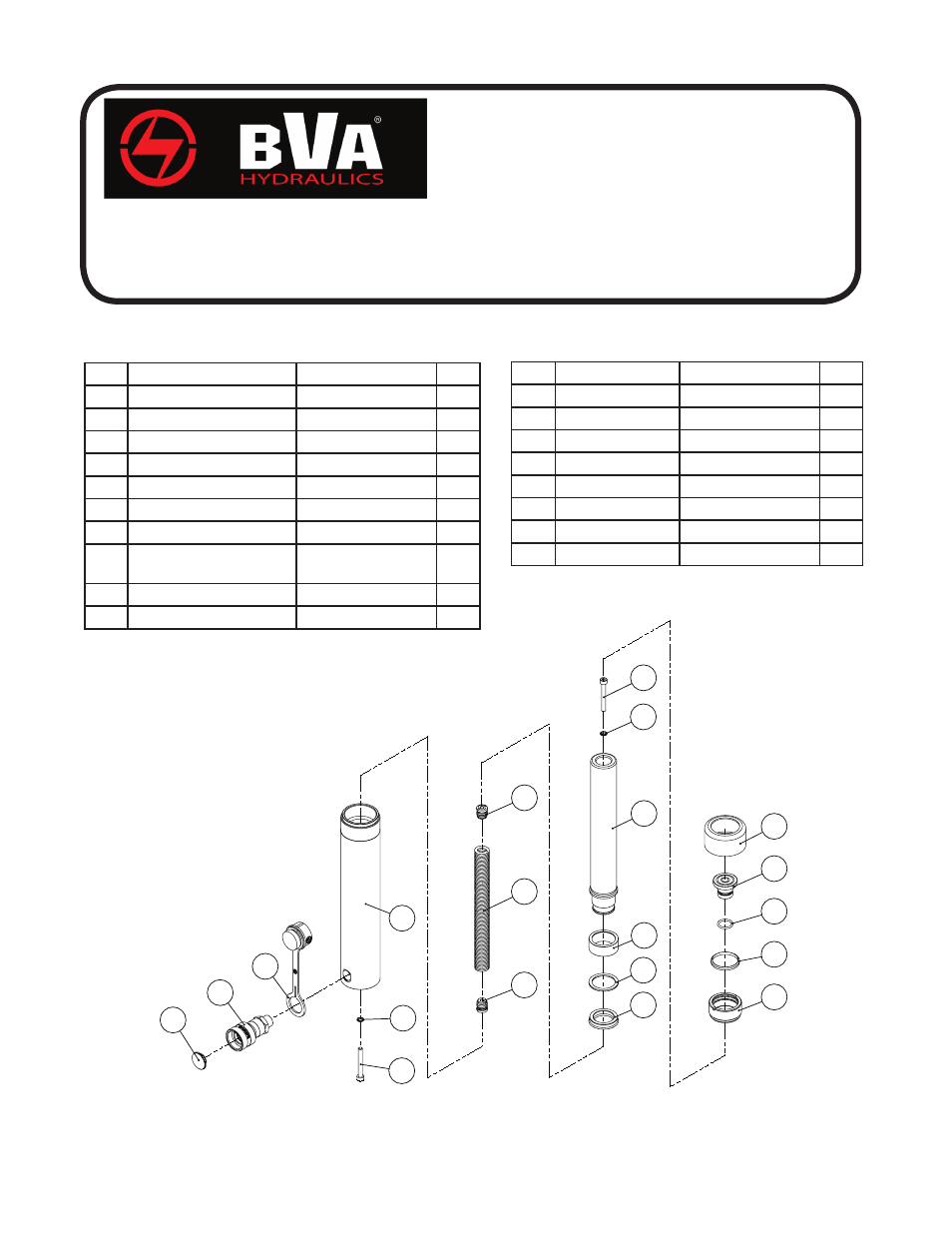

Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and position
in the assembly sequence.
5
3
4
6
7
12
11
14
10
9
2
13
13
1
10
9
16
15
17
8
Item Part Number Description Qty
1 N/A Cylinder 1
2 N/A Ram 1
3 H10-6-1103-105 Saddle 1
4 * O-ring 1
5 H10-6-2305-100 Protective Cap 1
6 H10-5-1804-103 Upper Bearing 1
7 * Dust Seal 1
8
H10-6-0206-108 (H1006)
H10-6-0201-108 (H1012) Return Spring
1
9 * Bolt 2
10 * Special Washer 2
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Item Part Number Description Qty
11 * Back-up Ring 1
12 H10-5-1204-109 Bearing 1
13 H10-6-2100-102 Spring Anchor Block 2
14 * U-cup 1
15 H02-4-6001-104 Female Coupler 1
16 H02-6-1008-105 Rubber Cap 1
17 H02-4-6003-108 Dust Cap Assy 1
(*) H10-3-9901-103 Repair Kit -
To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized Replacement Parts only.
