Page 9
9
Item
Part Number for Model:
Description
Qty.
HF7506
HF10006
1
*
*
Dust Seal
1
2
H24-5-1804-305
H24-5-1804-406
Upper Bearing
1
3
N/A
N/A
Ram Plunger
1
4
644-1-0100-105
644-1-0100-105
Bolt
1
5
H24-4-0420-104
H24-4-0420-104
Return Spring Assy.
1
6
*
*
Back-up Ring
1
7
*
*
O-ring
1
8
H24-5-1204-200
H24-5-1204-301
Bearing
1
9
N/A
N/A
Base
1
10
*
*
Special Washer
1
11
649-1-0100-201
649-1-0100-201
Bolt
1
12
CH38F
CH38F
Coupler, Female 3/8”-18NPTF
1
13
H02-4-6003-108
H02-4-6003-108
Dust Cover
1
14
H02-6-1008-105
H02-6-1008-105
Rubber Plug
1
15
*
*
O-ring
1
(*)
H24-3-9905-107
H24-3-9906-109
Seal Kit
1
3
13
2
6
4
14
1
5
11
7
9
10
8
15
12

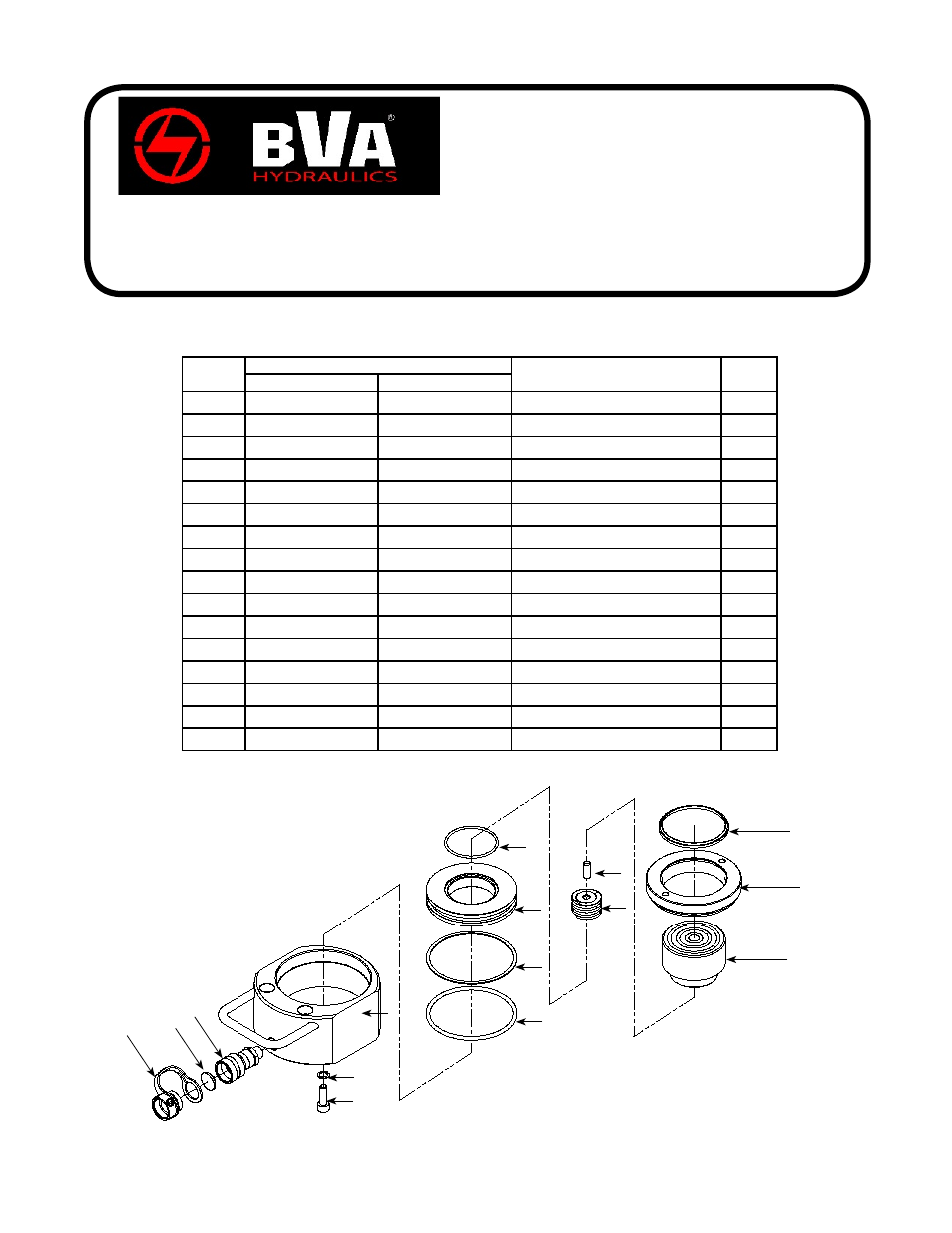

MODELS: HF7506 & HF10006
Single Acting,
Flat Body Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
Note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
HF0503-M0
rev 12/07
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Note: To ensure safe and reliable performance, replace
worn or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.
