6
MODEL: HF0503
Single Acting,
Flat Body Cylinder

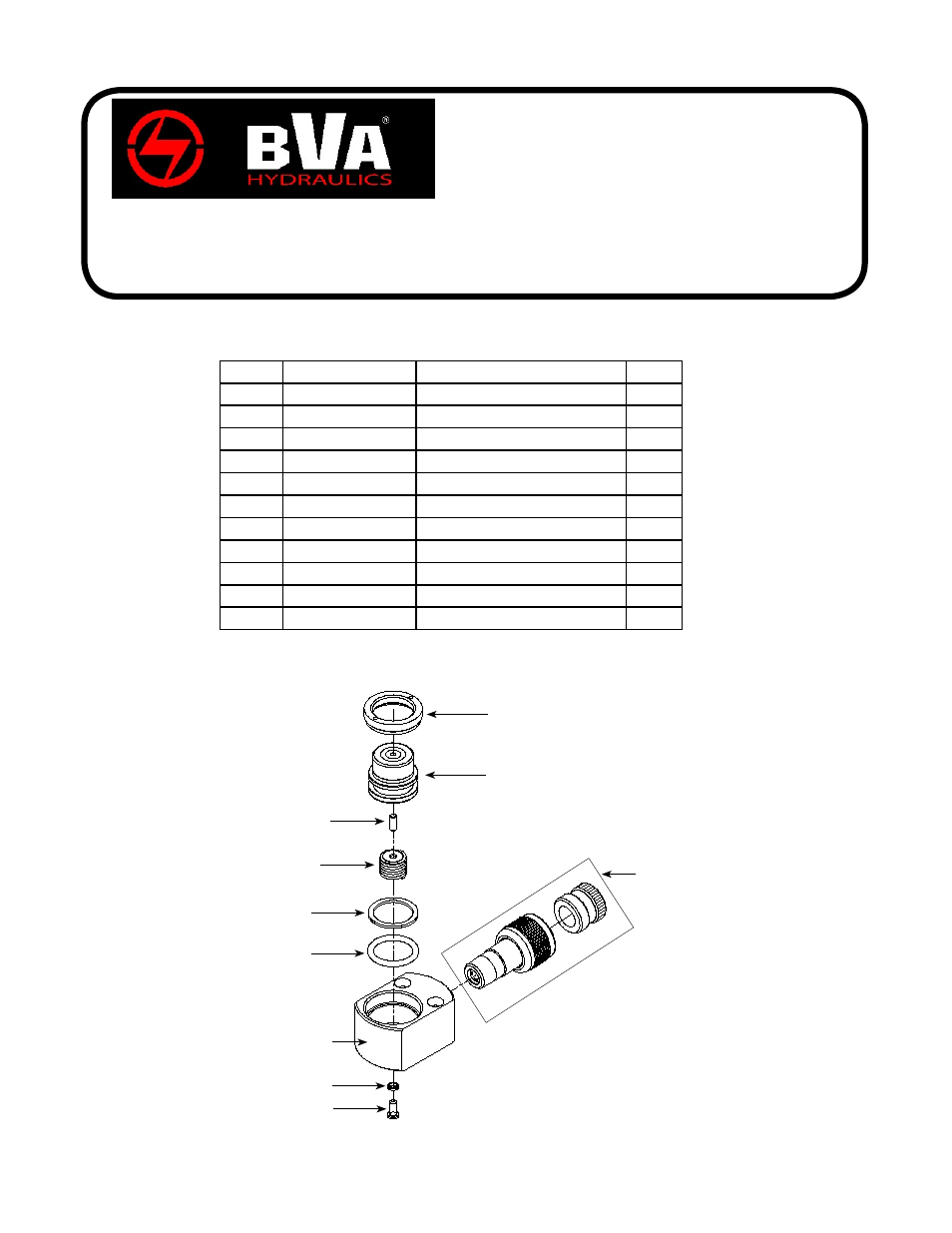

Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
Note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
Item Part Number Description Qty.
1 H23-6-2102-105 Upper Bearing 1
2 N/A Ram Plunger 1
3 * Back-up Ring 1
4 * O-ring 1
5 644-1-0040-103 Bolt 1
6 H23-3-2100-103 Return Spring Assy. 1
7 N/A Base 1
8 * Special Washer 1
9 614-1-0040-109 Bolt 1
10 CR38F Coupler, Female 3/8”-18NPTF 1
(*) H23-3-9901-102 Seal Kit 1
2
1
4
10
3
6
5
8
9
7
HF0503-M0
rev 12/07
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Note: To ensure safe and reliable performance,
replace worn or damaged parts with BVA Hydraulics
Authorized Replacement Parts only.
