BVA Hydraulics HF15006 - Manual (Page 10)

10
2
1
Item Part Number Description Qty.
1 * Dust Seal 1
2 H24-5-1804-507 Upper Bearing 1
3 N/A Ram Plunger 1
4 644-1-0060-200 Bolt 4
5 H24-4-0320-100 Return Spring Assy. 4
6 * Back-up Ring 1
7 * O-ring 1
8 H24-5-1204-402 Bearing 1
9 N/A Base 1
10 * Special Washer 1
11 649-1-0100-201 Bolt 1
12 CH38F Coupler, Female 3/8”-18NPTF 1
13 H02-4-6003-108 Dust Cover 1
14 H02-6-1008-105 Rubber Plug 1
15 * O-ring 1
16 H24-6-2100-209 Spring Base 1
17 614-1-0060-206 Bolt 4
(*) H24-3-9907-101 Seal Kit 1
3
4
5
15
6
14 13
12
11
9
7
8
10
16
17

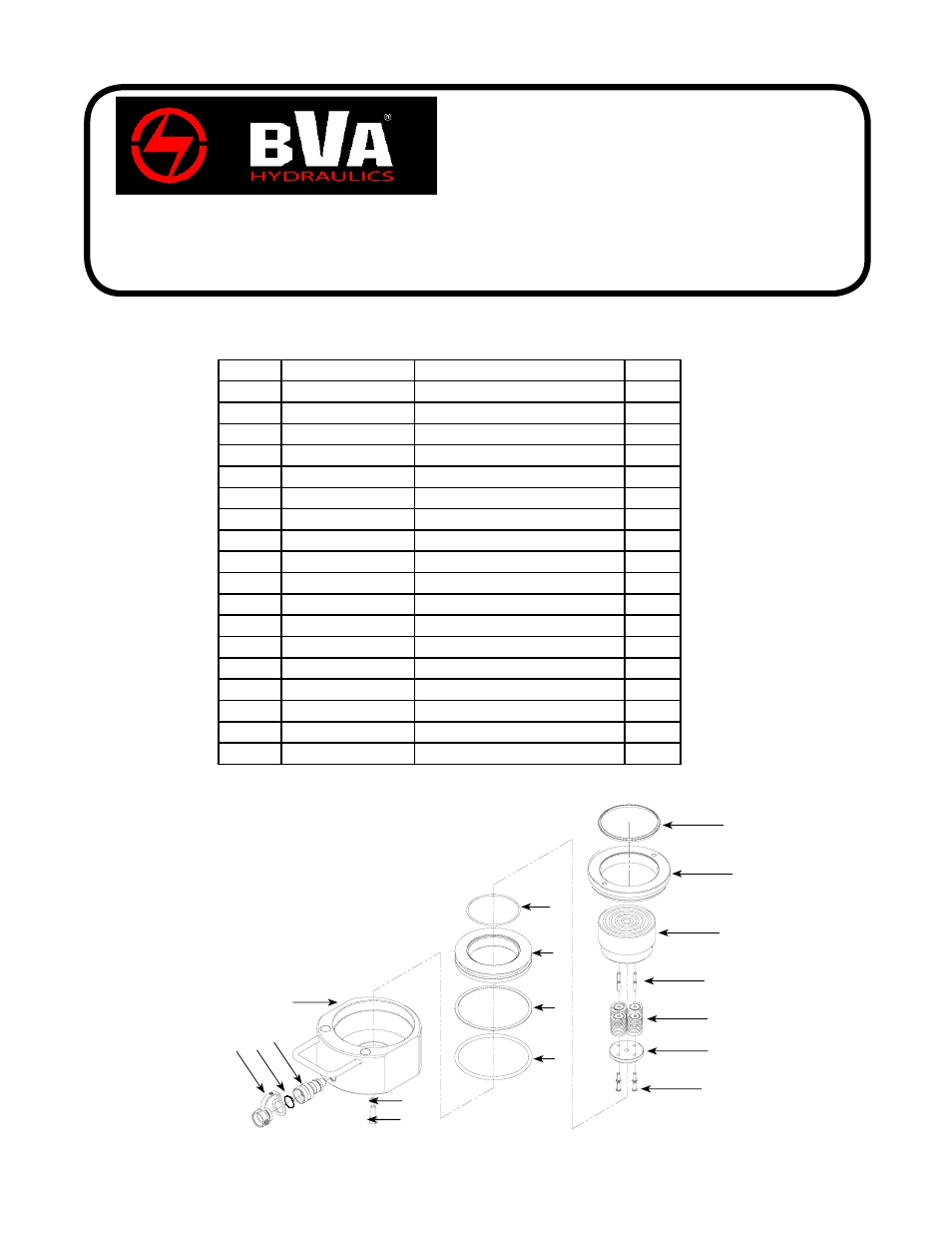

MODEL: HF15006
Single Acting,
Flat Body Cylinder
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
Note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
HF0503-M0
rev 12/07
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Note: To ensure safe and reliable performance,
replace worn or damaged parts with BVA
Hydraulics Authorized Replacement Parts only.
