7
Item
Part Number for Model:
Description
Qty.
HF1005
HF2005
HF3005
1
*
*
*
Dust Seal
1
2
H24-5-1804-103
H24-6-1804-109
H24-5-1804-206
Upper Bearing
1
3
N/A
N/A
N/A
Ram Plunger
1
4
644-1-0060-109
644-1-0060-109
644-1-0060-200
Bolt
1
5
H24-3-0220-100
H24-3-02020-100
H24-3-2828-100
Return Spring Assy.
1
6
*
*
*
Back-up Ring
1
7
*
*
*
O-ring
1
8
H24-5-0730-208
Bearing
1
9
N/A
N/A
N/A
Base
1
10
*
*
*
Special Washer
1
11
649-1-0060-040
649-1-0060-040
614-1-0060-206
Bolt
1
12
CH38F
CH38F
CH38F
Coupler, Female 3/8”-18NPTF
1
13
H02-4-6003-108
H02-4-6003-108
H02-4-6003-108
Dust Cover
1
14
H02-6-1008-105
H02-6-1008-105
H02-6-1008-105
Rubber Plug
1
(*)
H24-3-9901-109
H24-3-9902-101
H24-4-9903-103
Seal Kit
1
3
14
2
7
4
12
1
5
11
8
9
10
13
6

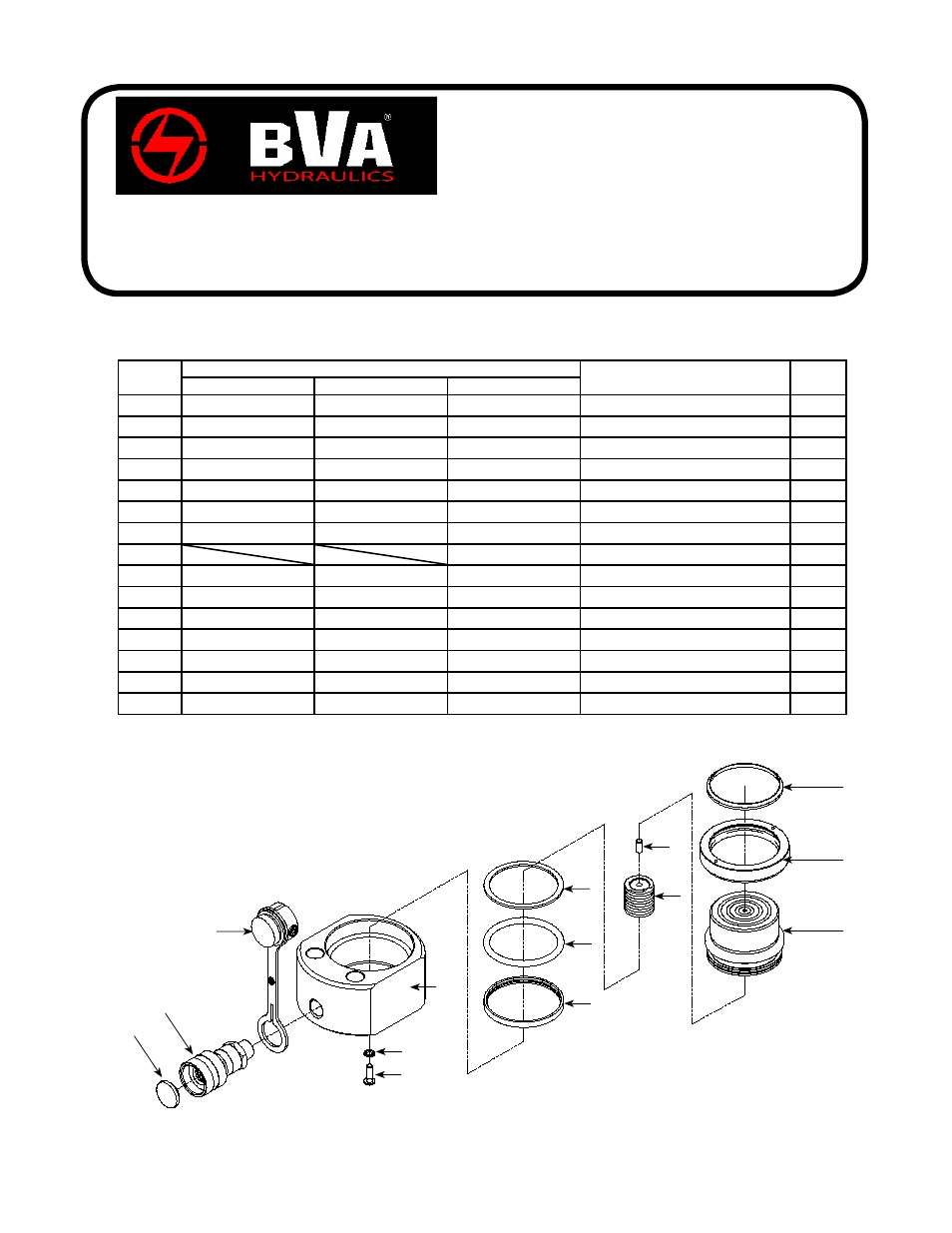

MODELS: HF1005, HF2005 & HF3005
Single Acting,
Flat Body Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: 888-332-6419 * Fax: 816-891-6599
E-mail: [email protected] Website: www.bvahydraulics.com
Note: Not all components of the cylinder are replacement items, but are illustrated as a
convenient reference of location and position in the assembly sequence.
HF0503-M0
rev 12/07
(*) - indicates items included in, and available only as part of Seal Kit
N/A - part is not available as replacement
Note: To ensure safe and reliable performance, replace worn or damaged parts with
BVA Hydraulics Authorized Replacement Parts only.
