16
IMPORTANT

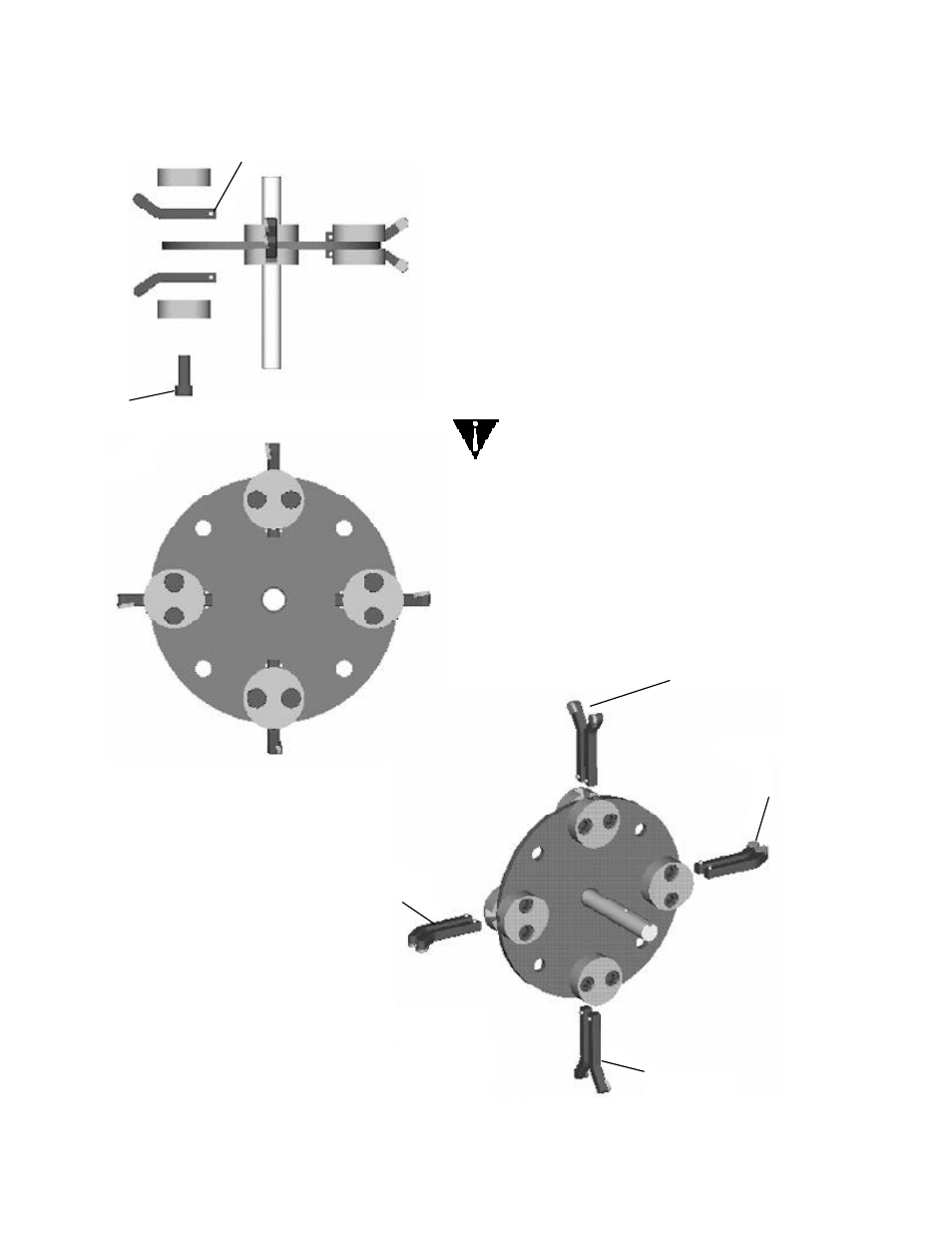

When assembling teeth and
pockets to the cutting wheel,
arrange as shown.
MAINTENANCE & SERVICE
Blade, Pockets and Teeth Removal and Replacement
Slide bolt through one pocket, through blade section
and through pocket on the other side. Tighten bolts to
120 150 ft lb. Make sure that the roll pins sit against
the back of the pockets. This provides the correct
gauging of the correct gauging of the teeth cutting
edge.
Bolts
Roll Pin
WARNING
Cutting teeth may come free of cutting wheel
due to insufficient torque applied to bolts. Be
sure to follow recommended torque settings.
2 Right Teeth
1 Left Tooth
1 Right Tooth
2 Left Teeth
1 Left Tooth
1 Right Tooth
