About the 8540
The B&K Precision 8540 DC electronic load (60V/30A/150W) can
sink DC current in constant current, constant voltage, and constant
resistance modes. Measured values have 10 mV and 1 mA
resolution. Shorts can be simulated. Storage is provided for up
to *40 groups, with 4 instrument setups per group. The instrument is
easy to use and will find many uses for testing DC power supplies,
batteries, and DC to DC converters.

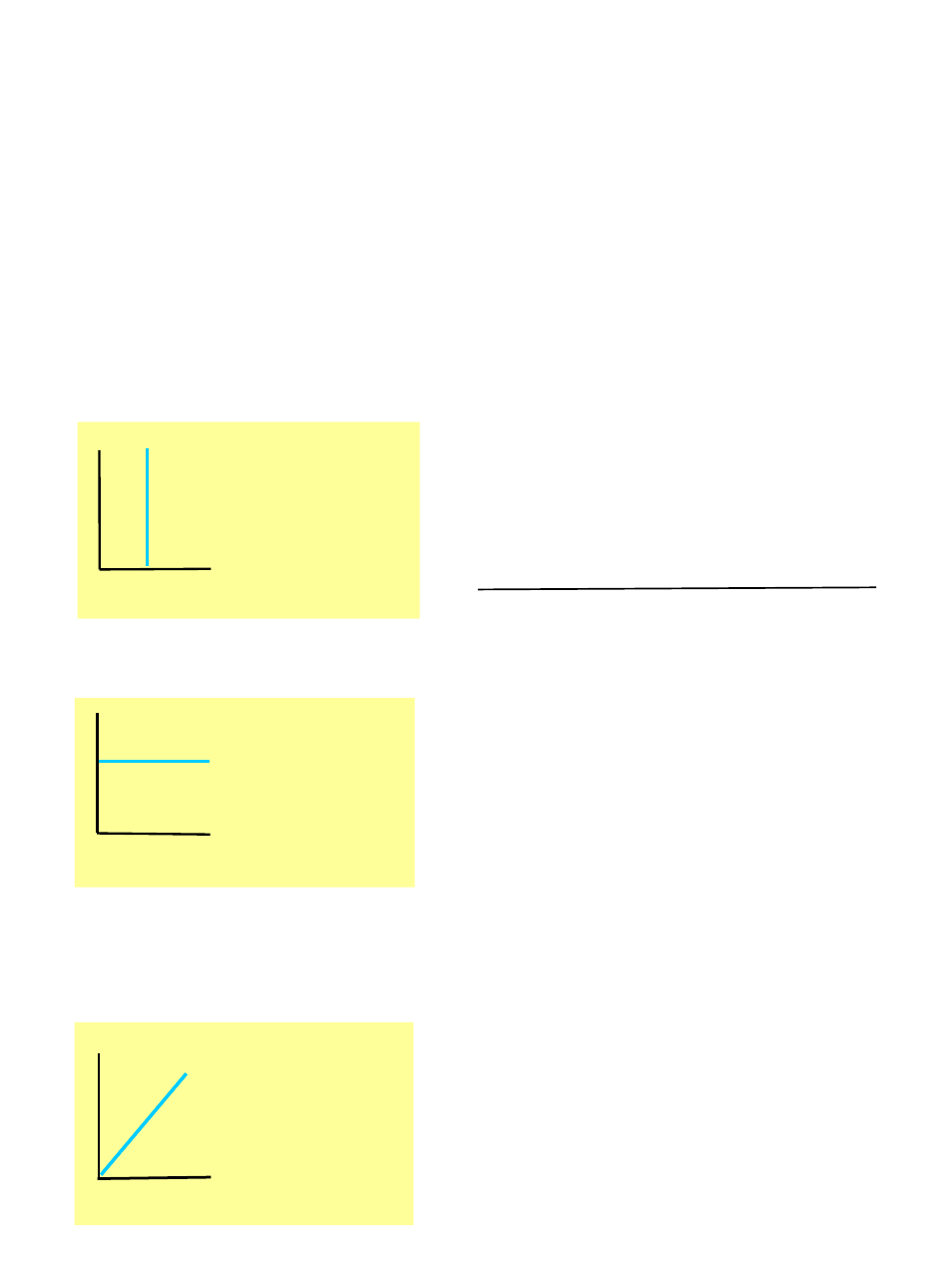

Constant Current (CC) mode
In CC mode, the DC load
V
draws a constant current
regardless of the voltage on
its terminals.
I
Constant current
Constant Voltage (CV) mode
Features
 Full digital control
 1mV /1mA measurement resolution
 Compact size
 Bright, readable LED display
V
Constant v
In CV mode, the DC
load will draw enough
current to keep the
voltage at the
terminals constant.
I
age
 Operating modes: CC/CV/CR
 Input on/off control
 High reliability due to OCP/OVP (over
current, over voltage) protection
 Storage for *40 groups, 4 setups
olt
Constant Resistance (CR) mode
In CR mode, the DC
each
 Easy operation
V
load will sink a current
linearly proportional to
the voltage at the
terminals.
I
Constant resistance
*40 groups are applicable for units with firmware
version 1.60 or above. For versions below 1.60, 100
groups are available. Go to
“Verify firmware” section
