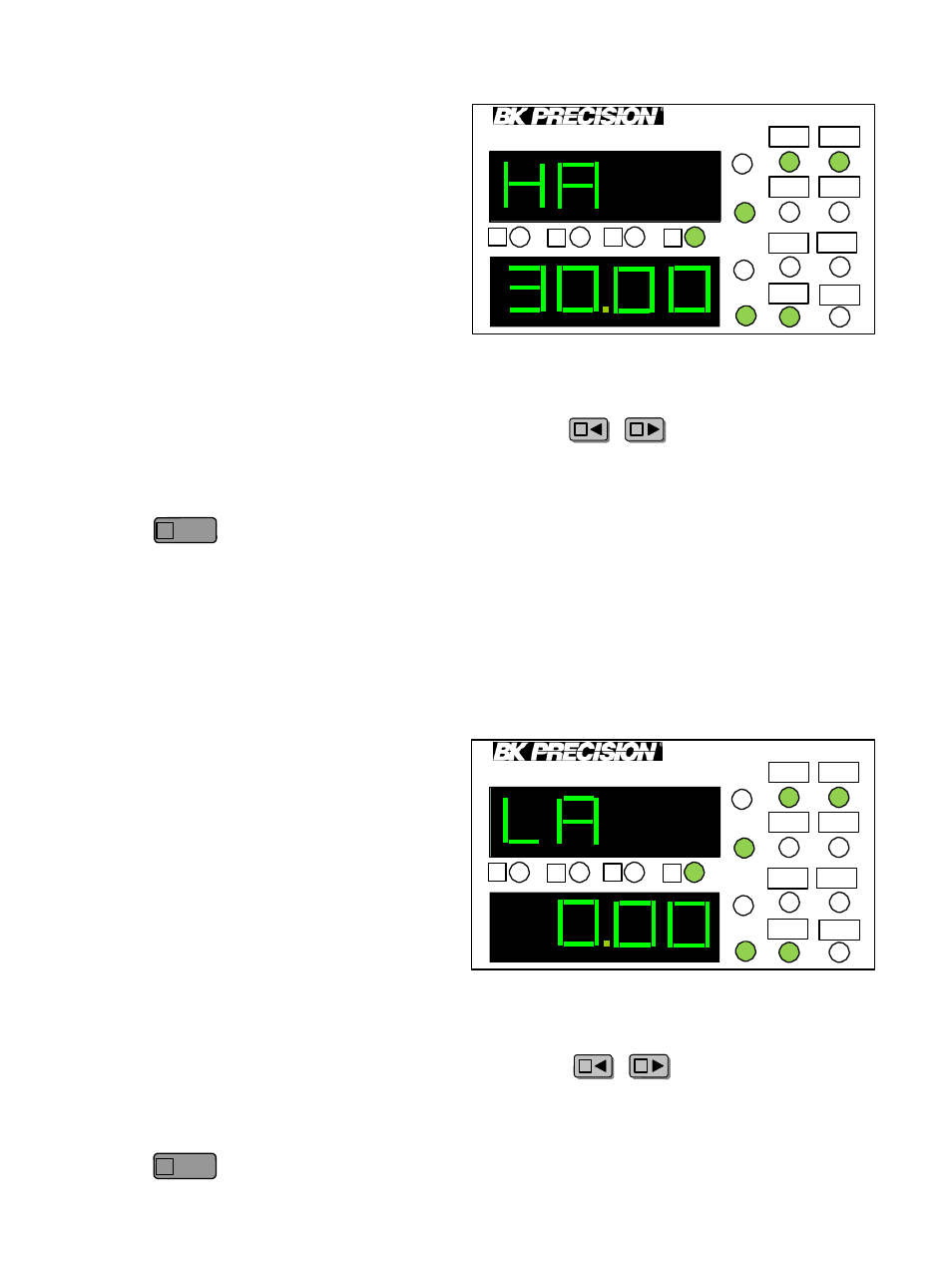

Step 7
– Select upper limit of input
current 150W DC Electronic Load
8540
Set
Recall CC
This parameter is used to limit
testing or test setups that must
stay within a customized range of
values. Change this value to the
upper bound limit for the input
current. If current exceeds this
limit while the sequence is running
this step, it will stop and show an
A B C D
V Short CV
W
30A CR
A OFF Shift
error condition. See
“Error
Programmable Range: 0.00
– 30.00
Condition
” section for details. In
Use the A B keys to change
this example, we will set to 30.00 A.
cursor position shown by the LED light
next to either A, B, C, or D (These four
Press C View to go and configure
denotes cursor position, with A selecting
the next parameter.
the most significant figure and D the
least significant figure.
Step 8
– Select lower limit of input
current 150W DC Electronic Load
8540
Set
Recall CC
This parameter is used to limit
testing or test setups that must
stay within a customized range of
values. Change this value to the
lower bound limit for the input
current. If current is less than this
limit while the sequence is running
this step, it will stop and show an
A B C D
V Short CV
W
30A CR
A OFF Shift
error condition. See
“Error
Programmable Range: 0.00
– 30.00
Condition
” section for details. In
Use the
A B
keys to change
this example, we will set to 0.00 A.
cursor position shown by the LED light
next to either A, B, C, or D (These four
Press C View to go and configure
denotes cursor position, with A selecting
the next parameter.
the most significant figure and D the
least significant figure.
