20 MHz DDS Sweep Function Generator with Arb Function
Model 4045B
2
Main
output
Sync
output
Output
On/Off
button
USB interface
Modulation input
connector
Trigger/counter input connector
Rotary
control knob
Color LCD
display
Numeric
keypad
Dedicated
waveform keys
Lin/Log
sweep key
Modulation
key
Utility
key

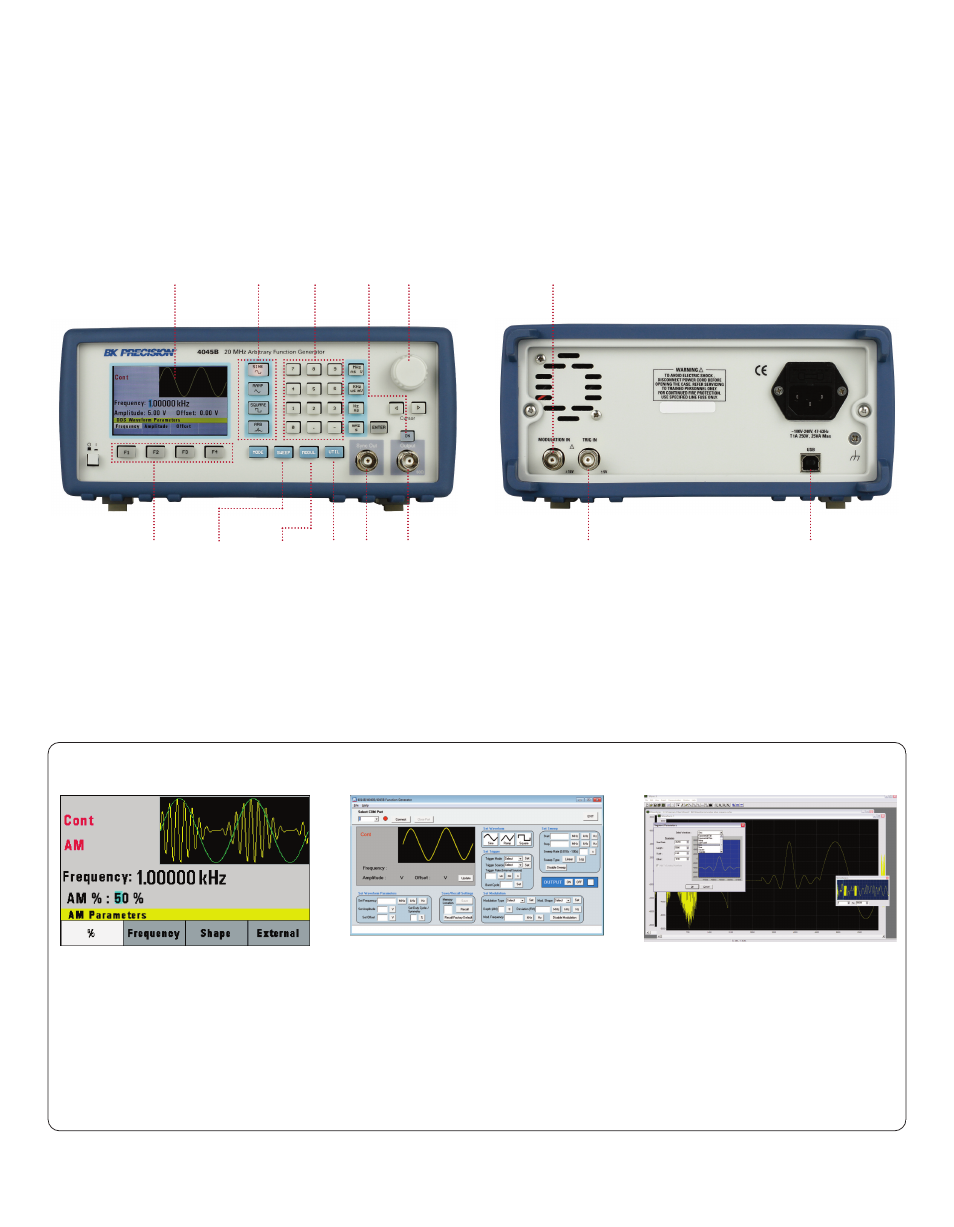

Front panel Rear panel
Menu function
keys
Easily change all waveform parameters using the intuitive menu-driven front panel keypad, rotary control knob, and large color LCD display that shows a preview of
the output waveform. Convenient waveform and range selection buttons let users make quick and precise adjustments to the output signal.
Versatile tools Easy PC connectivity
The signal generator can be programmed
remotely via the USB (virtual COM) interface
using SCPI commands. B&K Precision also offers
application software (available for download at
www.bkprecision.com) that provides virtual front
panel emulation, allowing users to remotely
control their instrument without the need for
programming. The 4045B provides AM and FM modulation
along with linear/logarithmic sweep and built-in
counter capabilities. Internal and external sources
can be used for triggering and modulating the
signal. Use waveform editing software to easily generate,
edit, and download custom arbitrary waveforms.
Generate waveforms by importing a text file, or
define via freehand, point draw, or waveform
math. Waveforms can also be loaded from the
generator for documentation purposes.
Generate waveforms with ease
Intuitive user interface
