Dual Channel Function/Arbitrary Waveform Generators
4050 Series
3

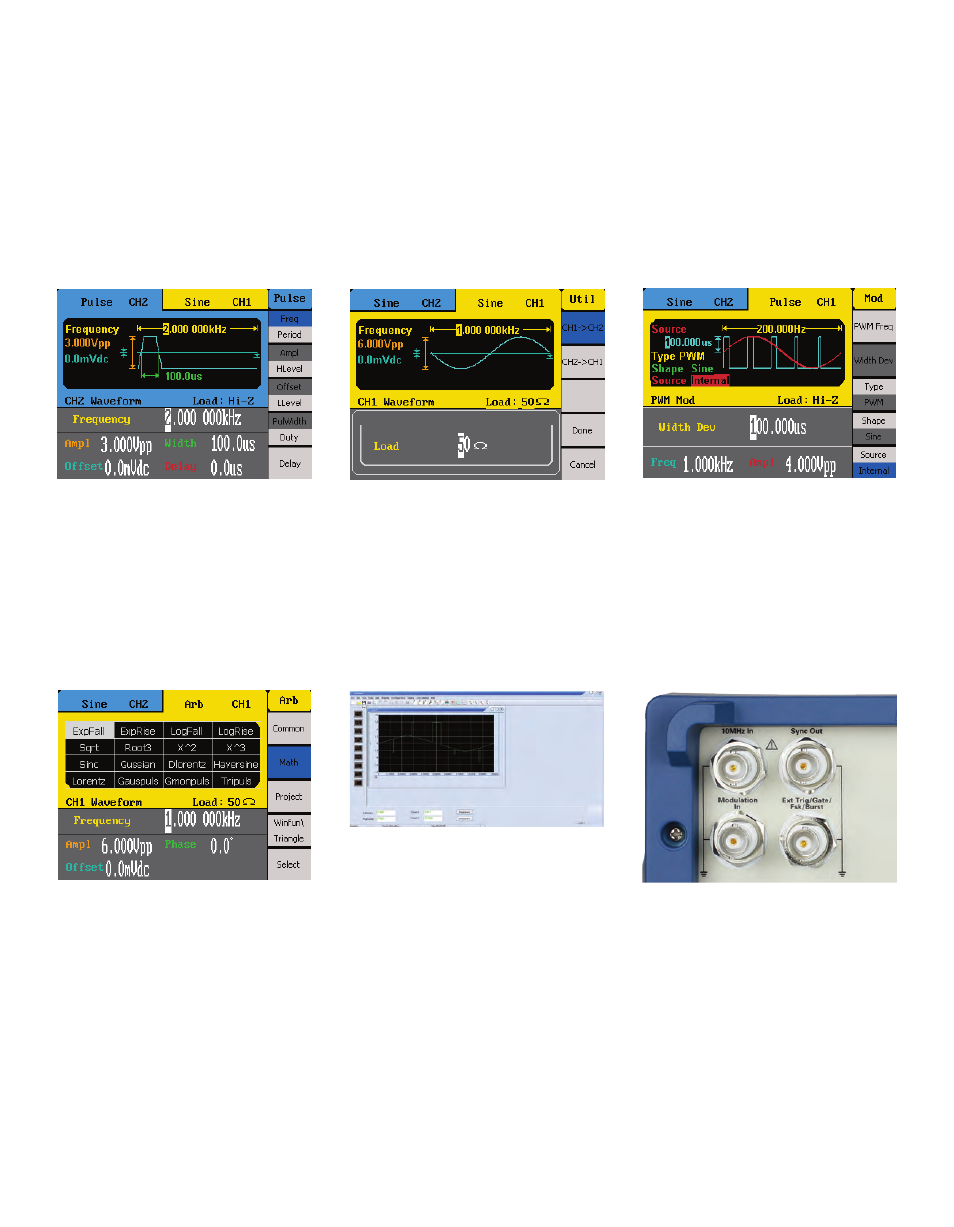

Flexible operation
Duplicate channel parameters
Quickly copy all waveform parameters between
channels via the Utility menu. This feature can
help you save time when you need to set up two
identical output signals.
Generate waveforms with ease
The provided waveform editing software can
be used to create point-by-point arbitrary
waveforms via freehand or waveform math
functions. A standard USBTMC-compliant USB
device port on the rear panel allows users to
easily interface with a PC to load these arbitrary
waveforms into the instrument.
Arbitrary waveform generation
All models in the 4050 series have non-volatile
memory to create, store, and recall up to 10
different arbitrary waveforms of up to 16,000
points each. Users can also output any of the 48
built-in predefined arbitrary waveforms.
Wide variety of modulation schemes
These instruments are capable of many different
types of modulation for various applications.
Modulate your waveforms with AM, DSB-AM,
FM, PM, ASK, FSK, and PWM modulation
schemes.
Color display with waveform preview
The large 3.5” color display highlights the
currently selected channel and shows all relevant
parameters with a preview of the waveform being
generated.
Synchronization and external triggering
Use the external 10 MHz clock input to
synchronize your signals to a master time base.
The Sync output generates a TTL pulse for
synchronization to a channel’s frequency. An
external trigger connector is also available for
inputting or outputting trigger signals.
