Avision AV3200C User Manual
Page 50
5-4
5.3
REPLACING THE ADF SNAP-IN PAD MODULE
After scanning approximately 20,000 pages
through the ADF, the separation pad may be worn out
and you may experience problems with document
feeding. In this case, it is highly recommended to
replace the pad module with a new one. For ordering
the pad module, please consult your nearest dealer and
follow the procedure below to replace it.
Disassembling Procedure
1.
Open the ADF cover.
2.
Remove the ADF snap-in pad module by pulling
out the upper part of the pad clamp as shown in
Figure 6-3.

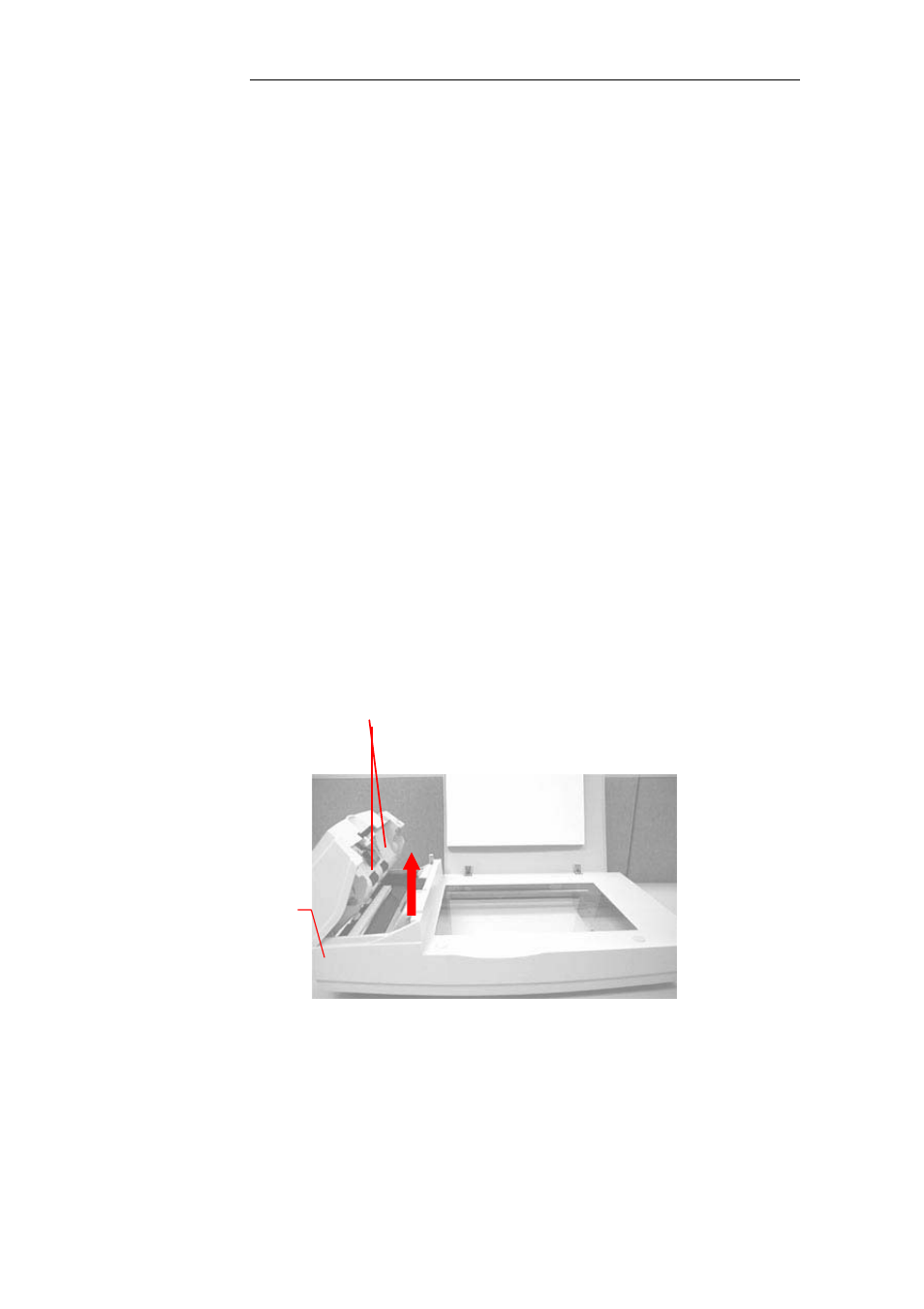

Figure 6-3 Remove the pad module
Upper Part of ADF Pad Clamp
ADF
Cover
