Avision AV3200C User Manual
Page 15

2-8
2.4 ADF OUTPUT TRAY
i).
Hold the output paper tray some 30 degrees
aslant as shown in Figure 2-4.
ii).
Insert the three protrusions on the output paper
tray to the three slots on the ADF.
iii).
Release the paper tray gently. Make sure the
tray is firmly attached to the ADF.
iv).
Pull out the output paper tray extension wire to
the desired length.

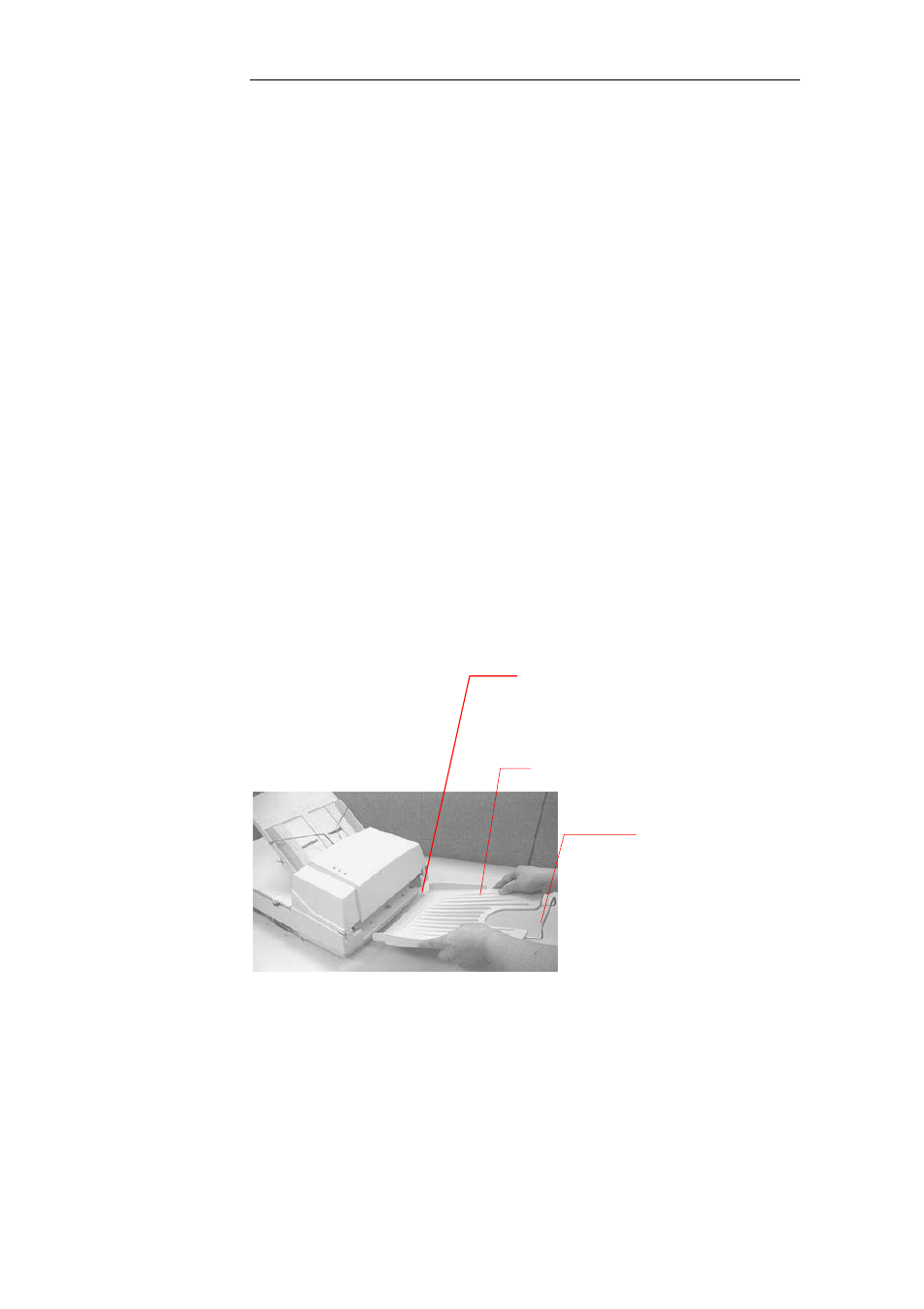

Figure 2-4 Install the ADF Output Paper Tray
Extension
ADF Output Tray
Protrusions
