5

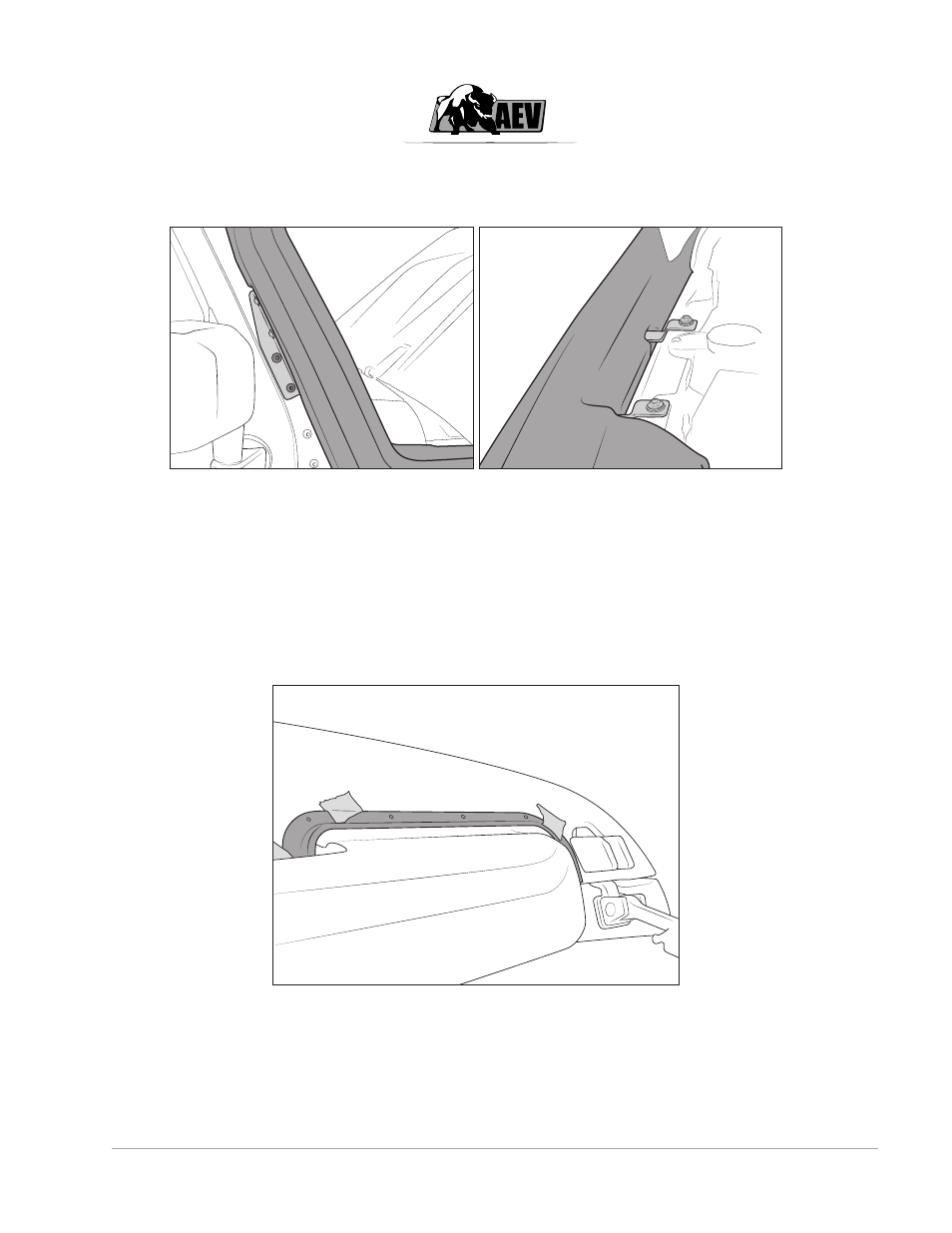

8. Install the fender bolts and windshield bolts temporarily in order to fit the snorkel for adjustment.
9. Test fit the hood to snorkel clearance. The snorkel and hood should have roughly a 1/8” (3mm) gap
surrounding the front and top of the snorkel.
10. Adjust the brackets for the best fit and then tighten every bolt and bracket.
11. Install the AEV Trim Ring (optional on AEV Heat Reduction Hoods). Place the AEV Trim Ring on the
hood and adjust it so that the visual gap between the hood and the snorkel is even. Mark the location
of the holes on the hood and drill to 1/8”. Paint the holes with touchup paint and install the AEV Trim
Ring using the supplied stainless steel rivets.
