D. INSTALL THE SNORKEL
1. Install the mounting brackets to the snorkel. Center the mounts in
the recessed areas in the snorkel and attach the brackets using the
1/4”-20 bolts and washers. Do not tighten completely at this time —
just enough to allow some movement for adjustment (fig 3.1).
2. Remove the fender bolts (fig 3.2) and windshield bolts (fig 3.2) to
prepare the vehicle for mounting the snorkel.
M10 SOCKET T40 TORX BIT

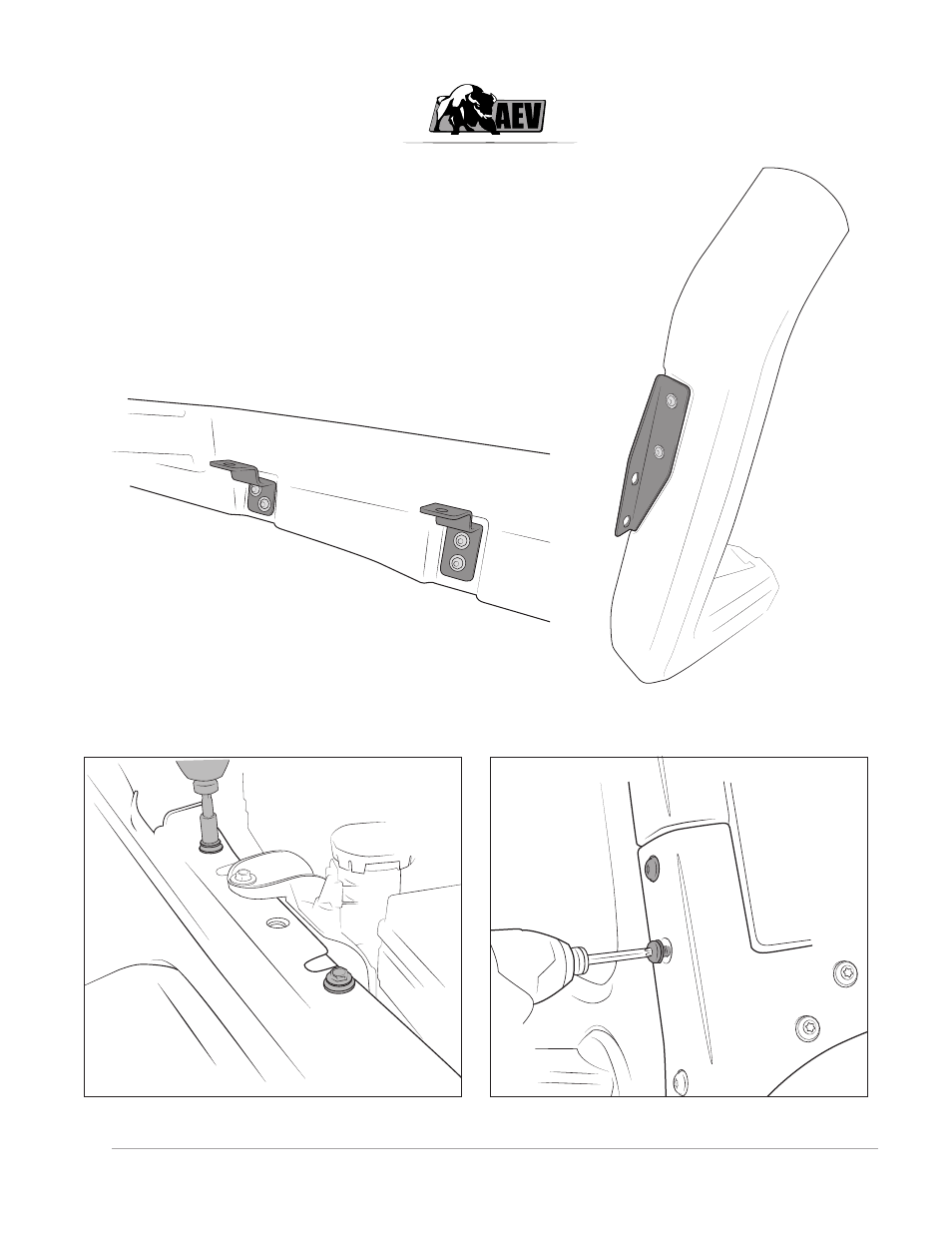

Figure 3.1
Figure 3.2 Figure 3.3
