Alpha Technologies Cordex 125-4.4kW - Manual (Page 34)

SIZE DWG NO. TYPE
B
SHEET
TITLE
ISSUE
DATE
OF
SCALE
FOR MANUFACTURING WITHOUT ITS WRITTEN CONSENT.
ARGUS TECHNOLOGIES AND SHALL NOT BE COPIED OR USED
THESE DESIGNS AND SPECIFICATIONS ARE THE PROPERTY OF
REV 030-769-08

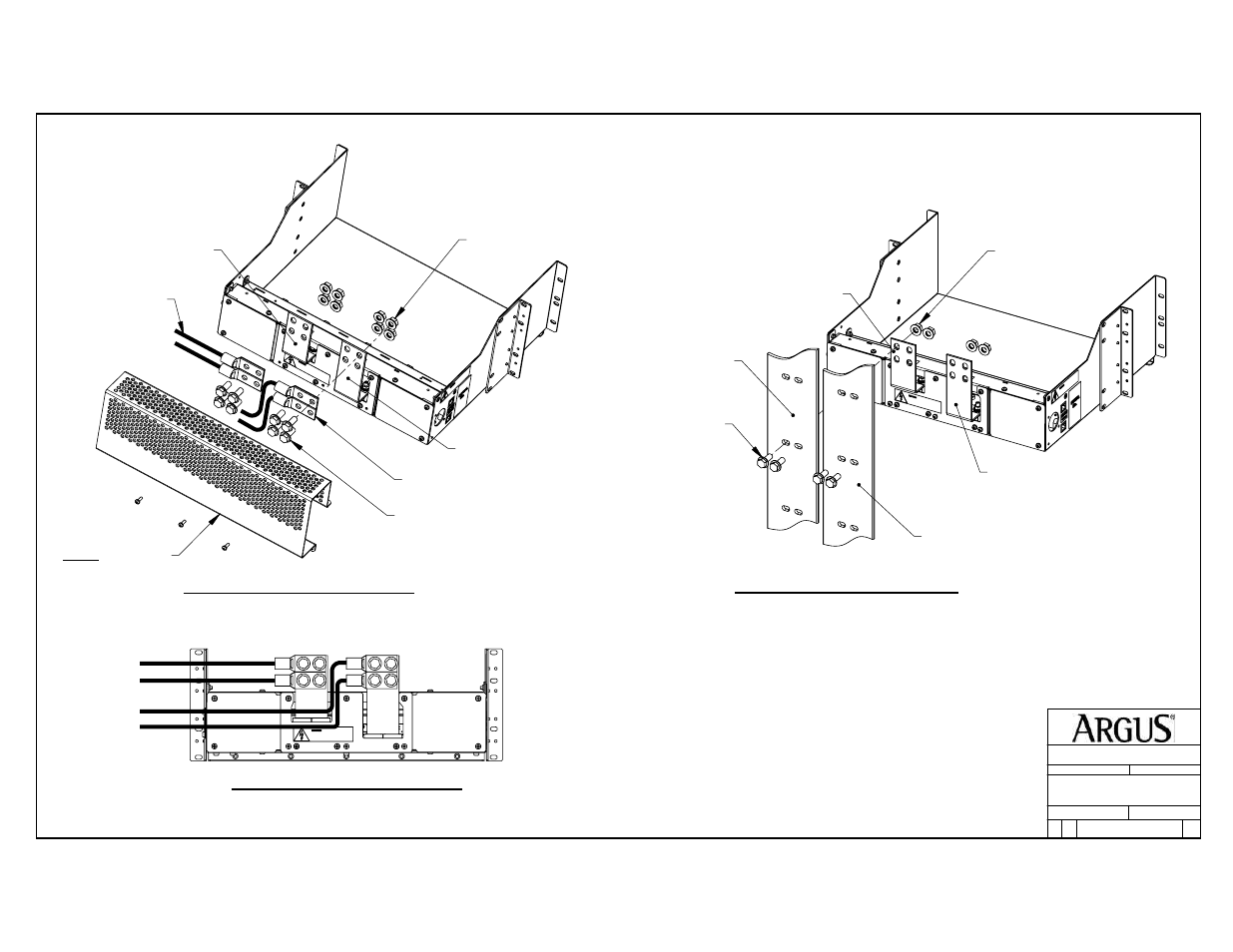

CUSTOMER CONNECTION
19" SHELF, 4.4kW CORDEX
2 2
D2
c 2006 ARGUS TECHNOLOGIES O
B
N.T.S.
REAR VIEW - BUS BAR INSTALLATION
POSITIVE (+)
OUTPUT TERMINAL
NEGATIVE (-)
OUTPUT TERMINAL
3/8" FLAT WASHER
3/8" LOCK WASHER
3/8-20 NUT
3/8" FLAT WASHER
3/8-20 x 1" HEX BOLT
NEGATIVE (-) BUS BAR
(CUSTOMER SUPPLIED)
POSITIVE (+) BUS BAR
(CUSTOMER SUPPLIED)
REAR VIEW - DC CABLE INSTALLATION
POSITIVE (+)
OUTPUT TERMINAL
NEGATIVE (-)
OUTPUT TERMINAL
3/8" FLAT WASHER
3/8" LOCK WASHER
3/8-20 NUT
3/8" FLAT WASHER
3/8-20 x 1" HEX BOLT
DC WIRING
(CUSTOMER SUPPLIED)
3/8" 2 HOLE COMPRESSION TERMINAL
1" SPACING (CUSTOMER SUPPLIED)
LIST 89 - REAR COVER
REAR VIEW - DC CABLE INSTALLATION
REAR COVER NOT SHOWN
