Step 8
Final Assembly

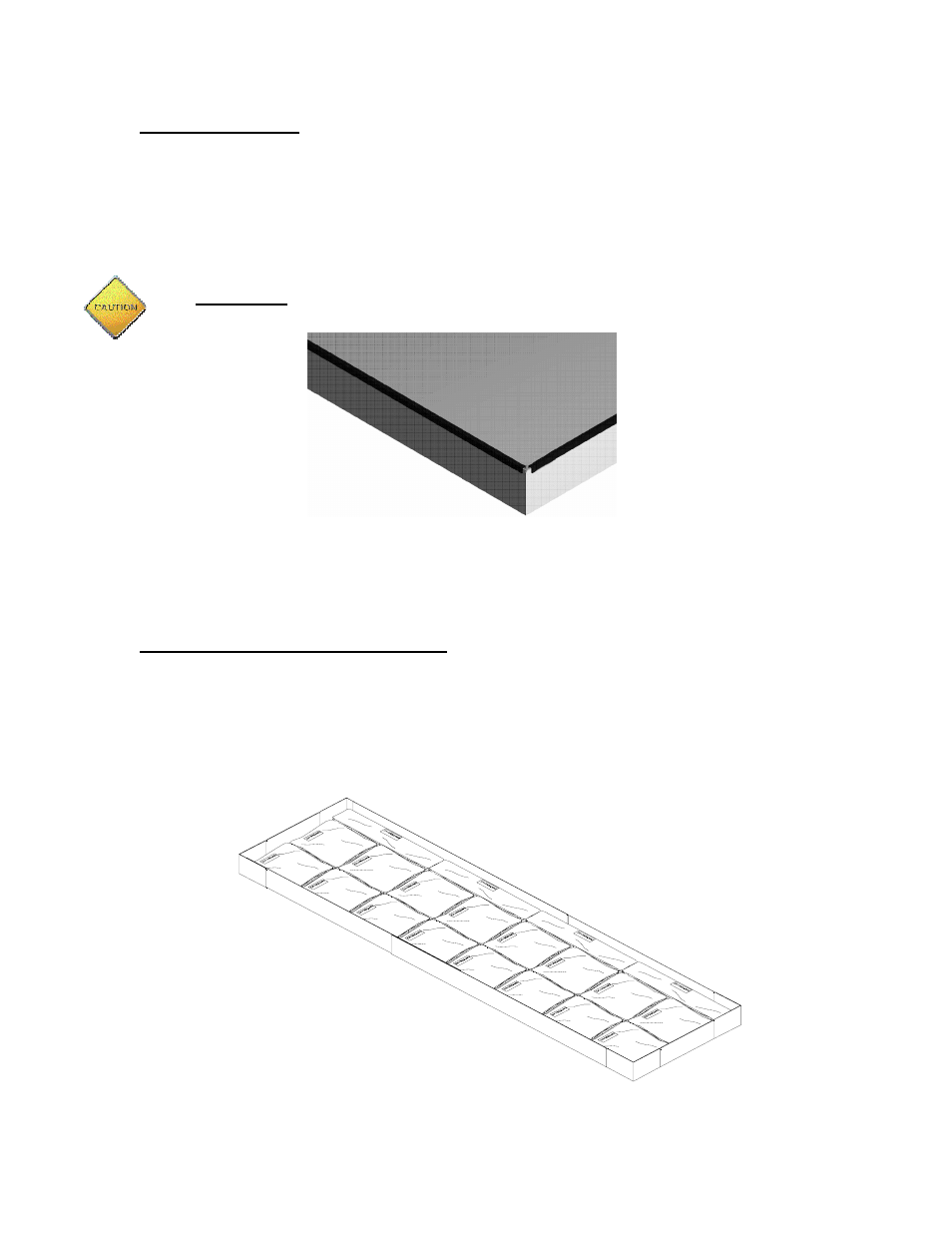

Place the Extrusion Clips over the top of the Barrier Wall securing the liner
to the wall. In the event that height of the liner exceeds the Barrier Walls,
trim the liner as necessary after liner has been pushed fully into
containment. Continue installing the extrusion clips over Barrier Walls and
liner (Figure 10).
CAUTION: DO NOT USE BARRIER WALL AS A GUIDE TO TRIMMING!
Figure 9
Figure 10
Step 9
Installing Neutralizing Pillows
Install pillows inside the floor of the liner. Spread pillows out to cover the
maximum amount of space. Place serial numbers facing up and in the
same direction whenever possible. Please note that the rack stanchions
may interfere with uniform pillow layout (Figure 11).
Figure 11
Page 9
