033-090-C0-001, Rev.A 20
2.0 Installation, continued
2.6 Installing PWE-SG Enclosure Batteries
CAUTION!
Before you install batteries, please read the Safety Notes at the beginning of this manual.
Each battery contains a date code, which is usually located near the positive (+) terminal of
the battery. Record this code in the maintenance log. If batteries, other than those supplied
by Alpha are used, consult the manufacturer's documentation of the date code type and
placement.
Month: June. (06)
Year: 2005 (05)

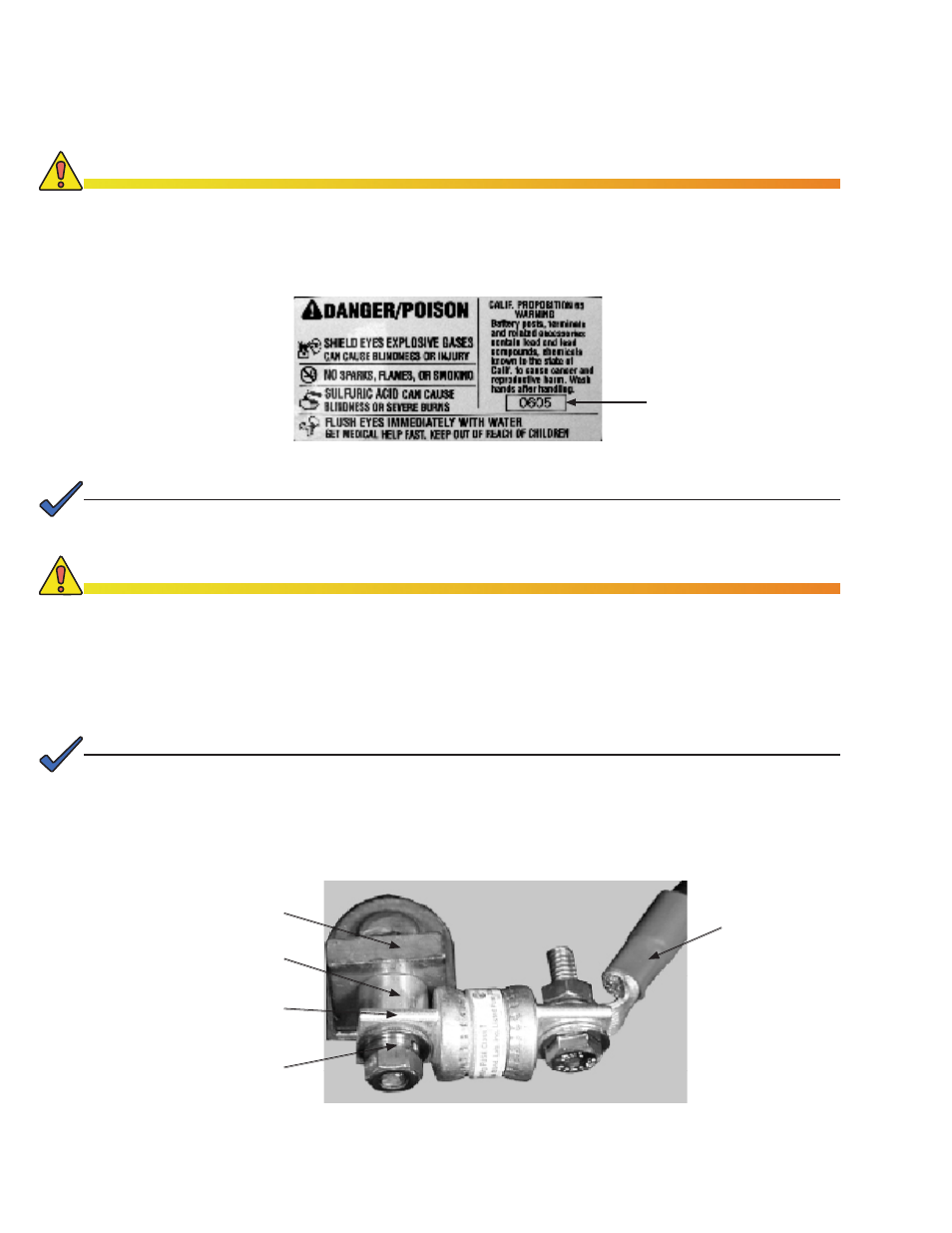

Fig. 2-14, Date Code for Alpha Batteries after September 2001.
NOTE:
The date code label format and location may vary depending on the age of the battery being used.
2.6.1 Battery Terminal Connections
Always refer to the battery manufacturer's instructions for correct mounting hardware
and torque requirements for installation as well as maintenance specifications.
Figure 2-15, In-line Fuse Link Mounting
Battery Cable, and
Crimp Connector to
Next Battery
Battery Terminal
In-line Fuse Link
Spacer
Washers and Nut
If you are installing a battery heater mat, it must be installed prior to the batteries. See Section 2.7
for instructions on installing the heater mat.
CAUTION!
Mounting hardware requirements vary with different manufacturers. Use the
appropriate hardware for your battery type. The following photo and drawing are for
illustrative purposes only.
NOTE:
While the use of an in-line fuse is optional, Alpha recommends the use of the fuse in all installations.
