2.0, Installation, continued
2.4 Assembling the Conduit, continued
In the PWE-SG enclosure, using the provided Anderson connectors, terminate the battery 7.
cable. See Fig. 2-9.
If you are installing a battery heater mat, terminate the battery heater mat line cord with
8.
the receptacle provided. See. Fig. 2-10

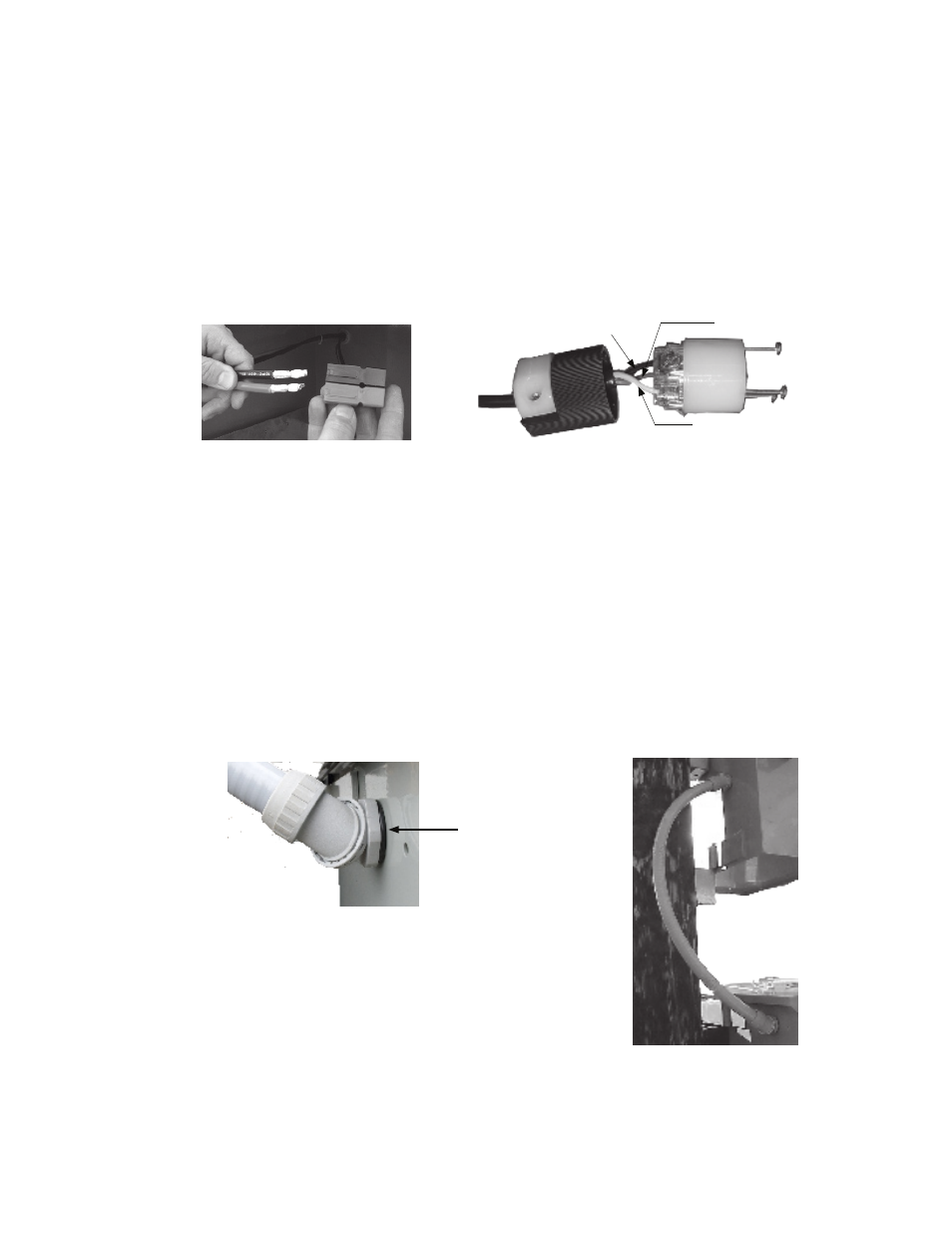

Fig. 2-9, Attaching Anderson
Connectors to Battery Cables
Fig. 2-10, Receptacle for
Battery Heater Mat Line Cord
White or blue to silver contact
Green to ground Black or brown to gold contact
Carefully run the upper wires through the drilled hole in the legacy enclosure. 9.
Using the plastic locknut, attach the upper conduit connector. Use channel locks to 10.
carefully tighten the connector, sealing the black rubber O-ring securely against the
enclosure. See Fig. 2-11
The conduit is in place. Optimally, the conduit connectors should be swiveled to 45°F.
11.
See Fig. 2-12.
Fig. 2-11, Attaching Connector
Black O-ring secured
against enclosure
Fig. 2-12, Conduit in Place
