031-040-B0-002 Rev. B
21
2. INSTALLATION
Temp Probe Connector: The Remote Temperature Sensor (RTS) plugs directly into the temperature
probe (RJ-11C type) connector. The sensor end of the RTS is routed to the battery compartment and
taped directly to the side of the center battery (See Fig. 2-12). The RTS provides battery temperature
measurements used to adjust the battery charge voltage. Attach the probe to the side of the battery so
that it is protected by the cover.
2.5 Temperature Sensor

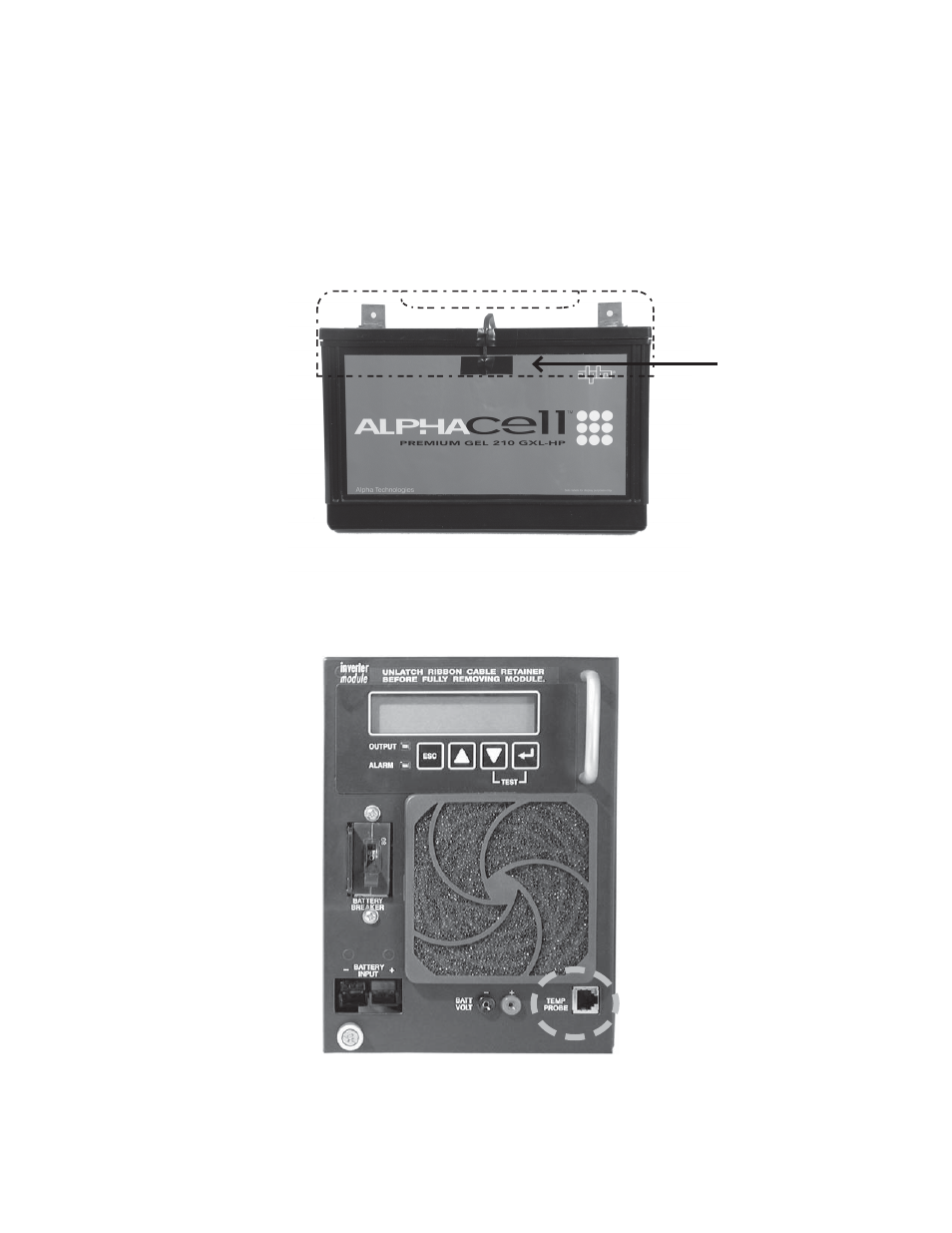

Fig. 2-12 Location of Temperature Probe on Battery
Fig. 2-13 Temp Probe Connector
