2. INSTALLATION
2.3 Battery Connection, continued
+
-
+
-
+
-
12V 24V 36V
+
-
+
-
+
-
12V 24V 36V
To TEMP PROBE connector
To BATTERY INPUT
connector
Black
Brown
Orange
Yellow
Black
Brown
Orange
Yellow
Remote temperature sensor attached to
side of central battery
Fuse on battery
terminal
AG-CMT-3SC-P-C
Fuse on battery
terminal
AG-CMT-3SC-P-C
Locate this connection above high
water mark or source of high humidity
Locate this connection above high water
mark or source of high humidity

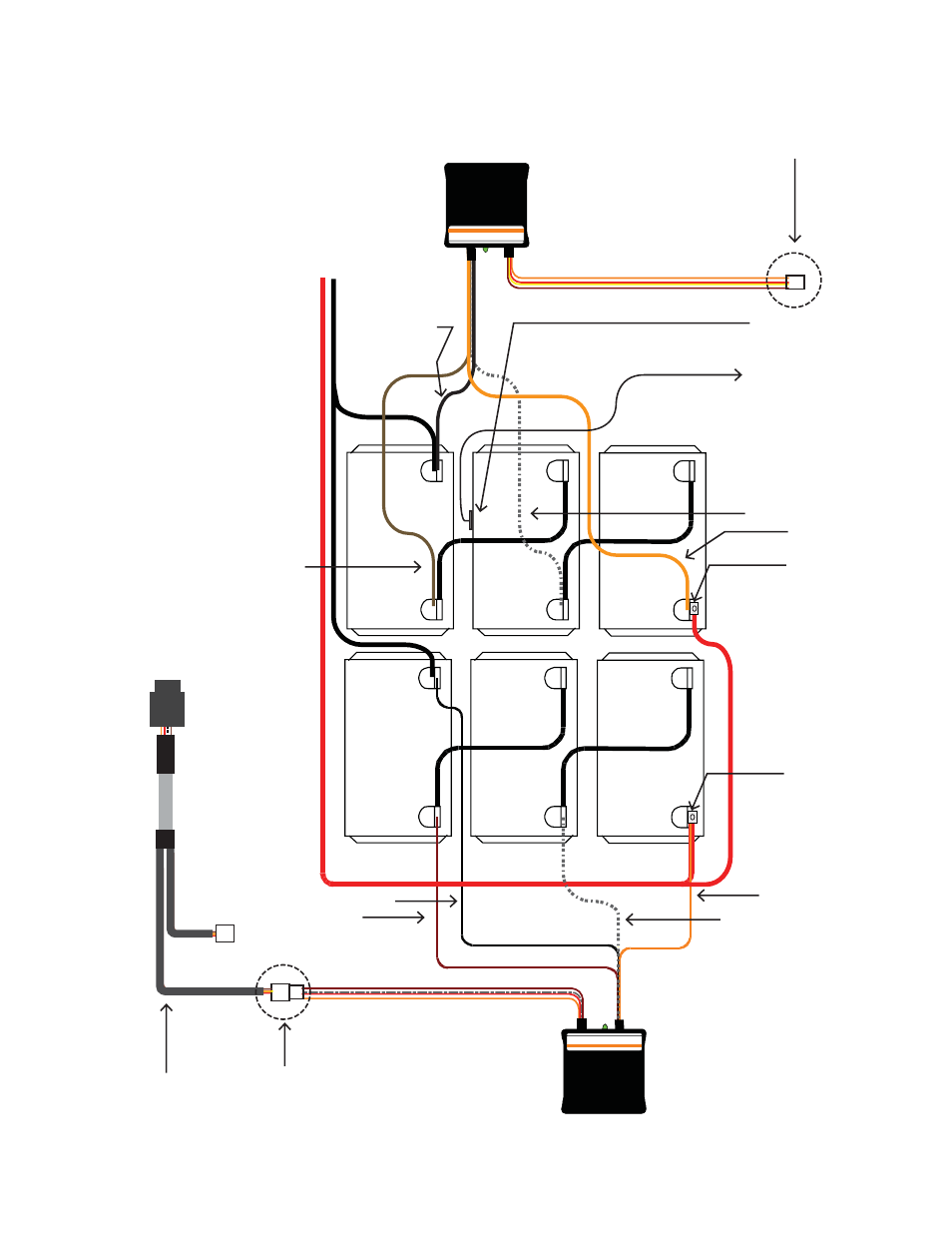

2.3.2 Dual 36V Battery String Wiring Diagram
Fig. 2-5 AG-CMT-3SC-P-C Wiring for Dual 36V Battery String
Battery Monitoring
cable
To
Status
Monitoring
Card
To
Second
AlphaGuard
