2. Installation
2.8 Service Power Inserter

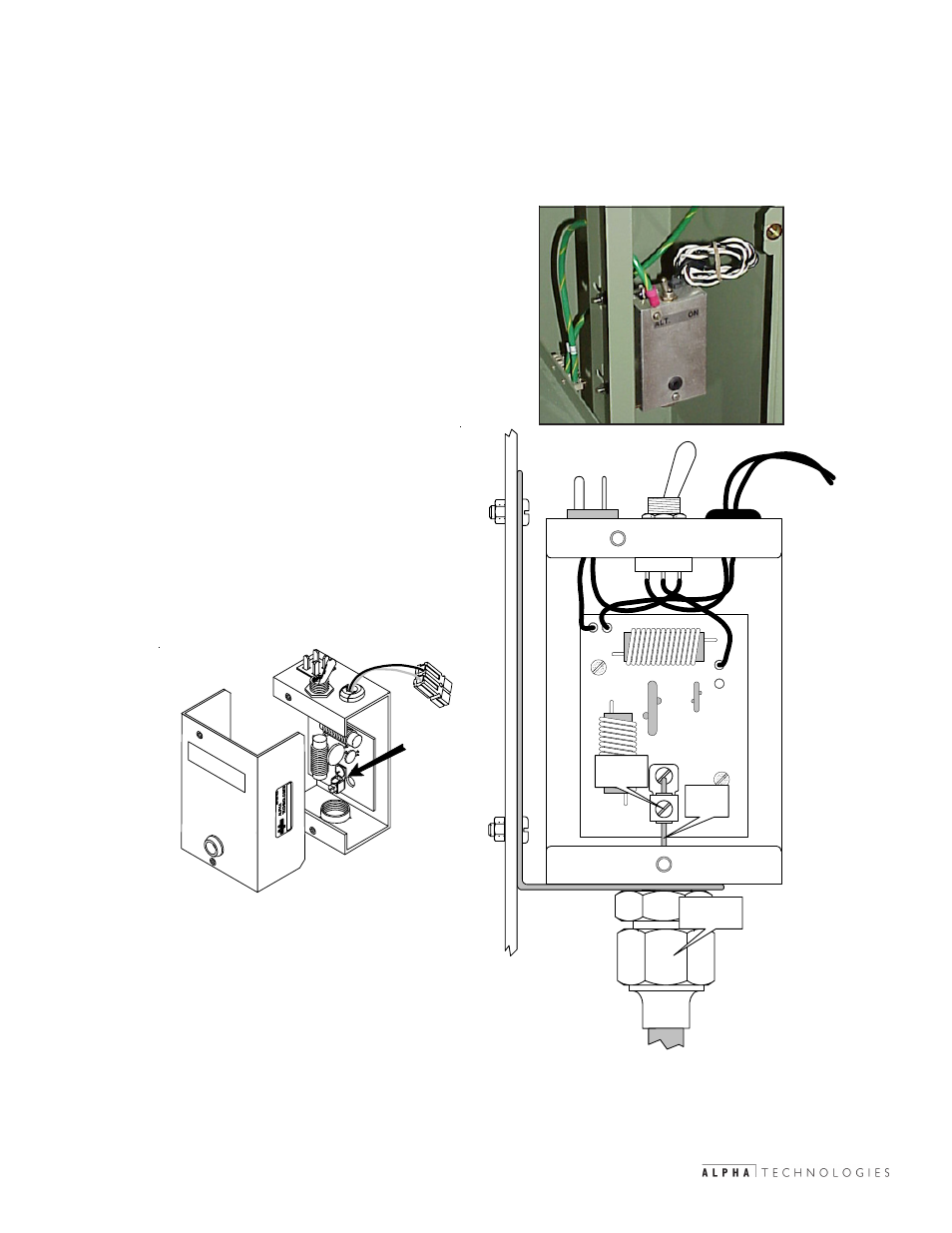

1. The SPI box(es) are mounted on the shelf support bracket.
2. Remove the two screws on the face of the SPI and lift off
the cover to gain access to the Seizure Screw Assembly.
Loosen the Seizure Screw several turns so that the stinger
will pass through the clamp. (Fig 2-3)
3, Insert the Coaxial Termination into the output
port on the bottom of the SPI. Ensure that the
stinger goes through the Seizure Screw Assembly.
Tighten the Coaxial Termination.
4. Tighten the seizure screw to 35.0 Inch-Pounds.
Replace the SPI cover and screws.
Ensure that the switch on the top or the SPI is
in the ON position, the AUX position is used only
when an alternate power source is connected to
the 'Jones" connector on the top of the SPI.
Seizure Screw
Assembly
Coax
Termination
Seizure
Screw
Coax
Stinger
