14
031-099-C0-001 Rev. A © 2002 TM

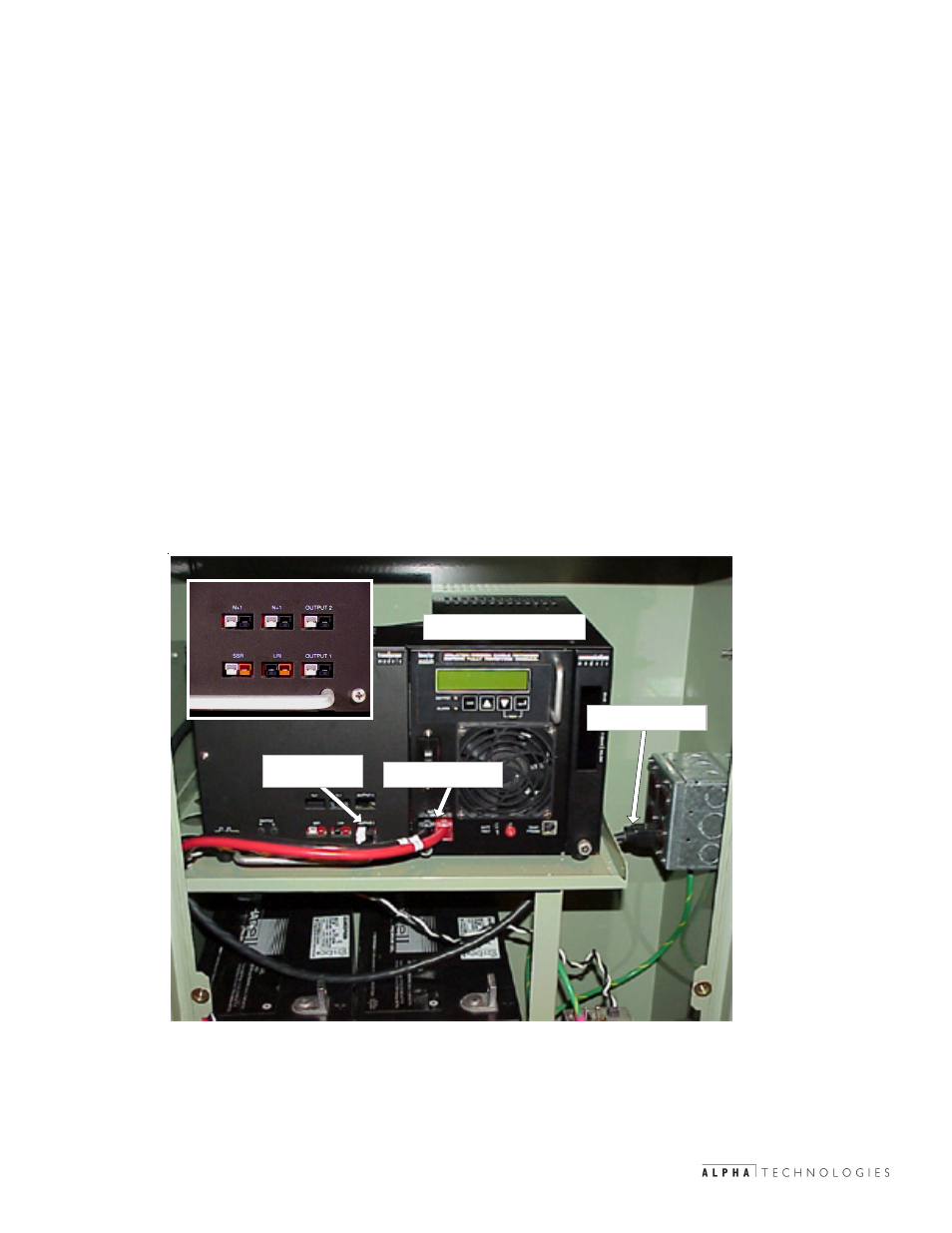

XM2 Power Supply
Output to SPI
and Fan
Battery Pack Input
AC Power Cord
2.6 Power Supply Placement
1. Place the XM2 power supply onto the top shelf of the side car.
2. Verify that the AC Input Breaker in the service entrance is in the OFF position.
3. Verify that the Battery Breaker on the front of the power supply is in the OFF
position.
4. Plug the AC power cord into the Input Power Panel on the side of the enclosure.
5. Plug the Battery Input Cable from the battery pack into the Battery Input
connection on the front of the power supply.
6. Plug the wire leading from the fan into the OUTPUT 1 connection on the front of
the power supply.
7. Plug the wire leading from the top SPI into the other set of plugs on the wire
from the fan.
8. If a second SPI is installed, plug it into the OUTPUT 2 connection on the front of
the power supply.
2. Installation
