Installation, 4 internal components – Alpha Technologies CESC-3X User Manual
Page 12

12
031-099-C0-001 Rev. A
© 2002
TM

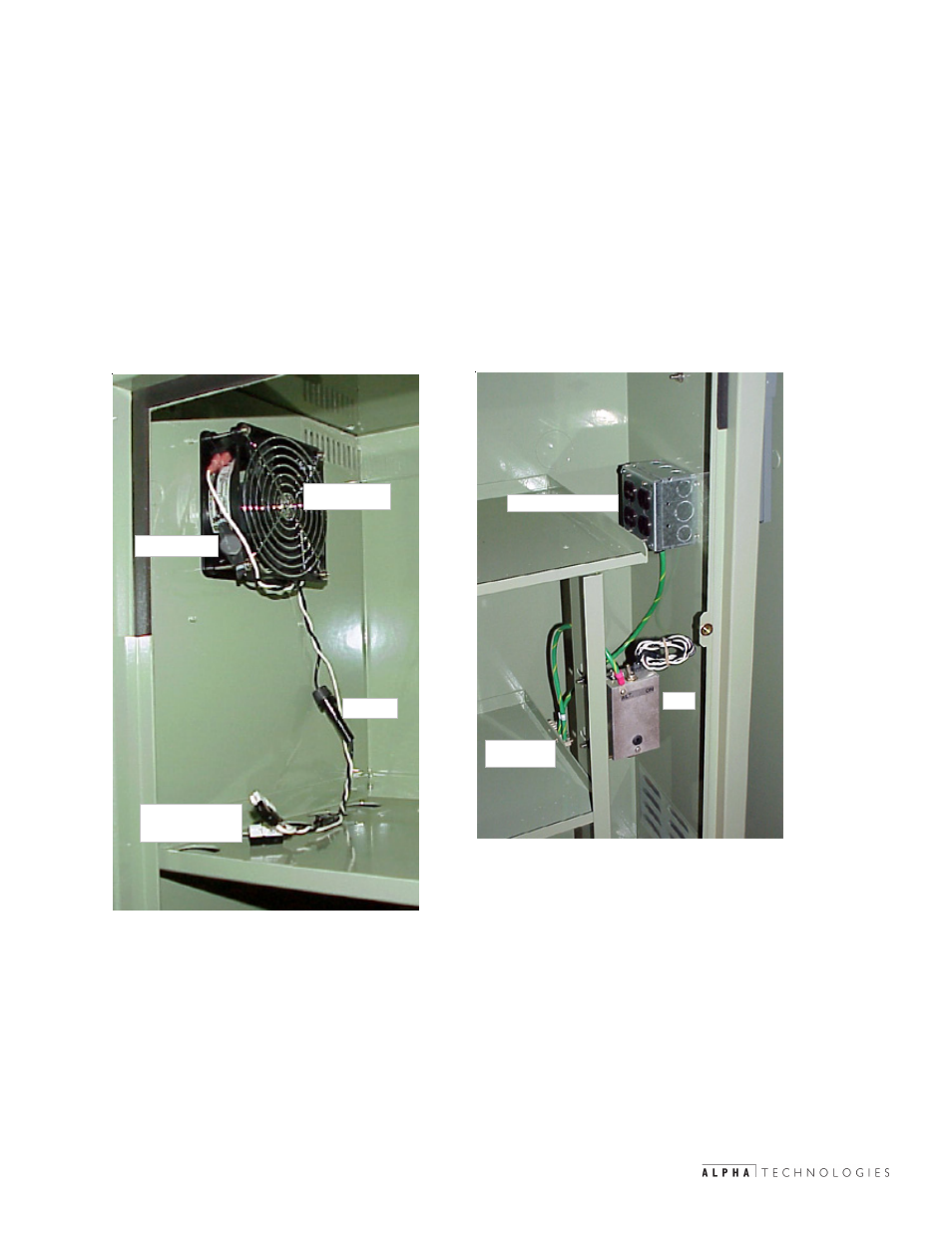

Input Power Panel (IPP)
SPI
Enclosure
Grounding Rail
A cooling fan is required any time a
Power Supply is housed in the side car.
The fan is thermostatically controlled to
turn on at 140 deg F and off at 110 deg
F. The fan cable has a 'T' connector
that attaches to the Power Supply
output connection. Replace fuse only
with a 1/4” X 1-1/4”, 5 Amp, 250 Volt
(Alpha P/N 460-025-10).
2.4
Internal Components
2. Installation
Cooling Fan
Fuse
AC Power Connections
Thermostat
The Sidecar enclosure contains an
Input Power Panel (IPP), one or two
Service Power Inserters (SPI),and the
Enclosure Grounding Rail. The Power
Supply rests on the upper shelf, and a
48 VDC battery pack on the lower two
shelves.
