3.0 Operation Using the Line Transfer Switch (LTS), continued
3.1 Installing the LTS, continued
4. Route the cord into the GEM enclosure through the generator access door and connect
to the generator output. Secure with the rubber grommet.
NOTE:
Confi guration of components in PWE enclosures will vary. Make sure the Primary Utility Cord from the LTS
reaches an open outlet prior to installing.

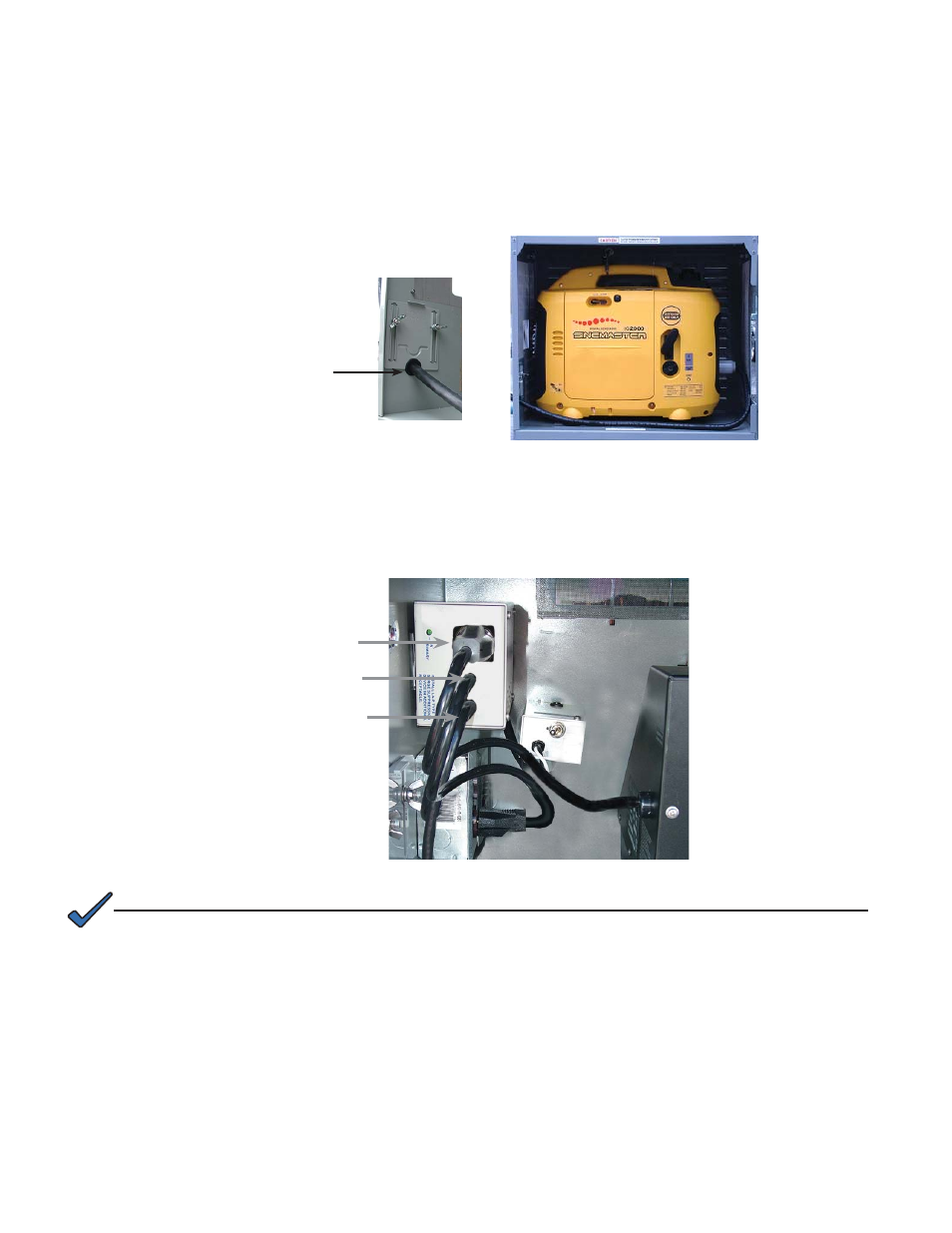

Power Supply Power Cord
To Primary Utility Outlet
To Generator
Rubber Grommet
5. Connect the Primary Utility plug from the LTS into the utility outlet and plug the power
supply power cord into the LTS.
