745-872-C0-002, Rev. B 14
CAUTION!
Before drilling, verify the areas behind the drilling locations are free from batteries, wiring, or
equipment.

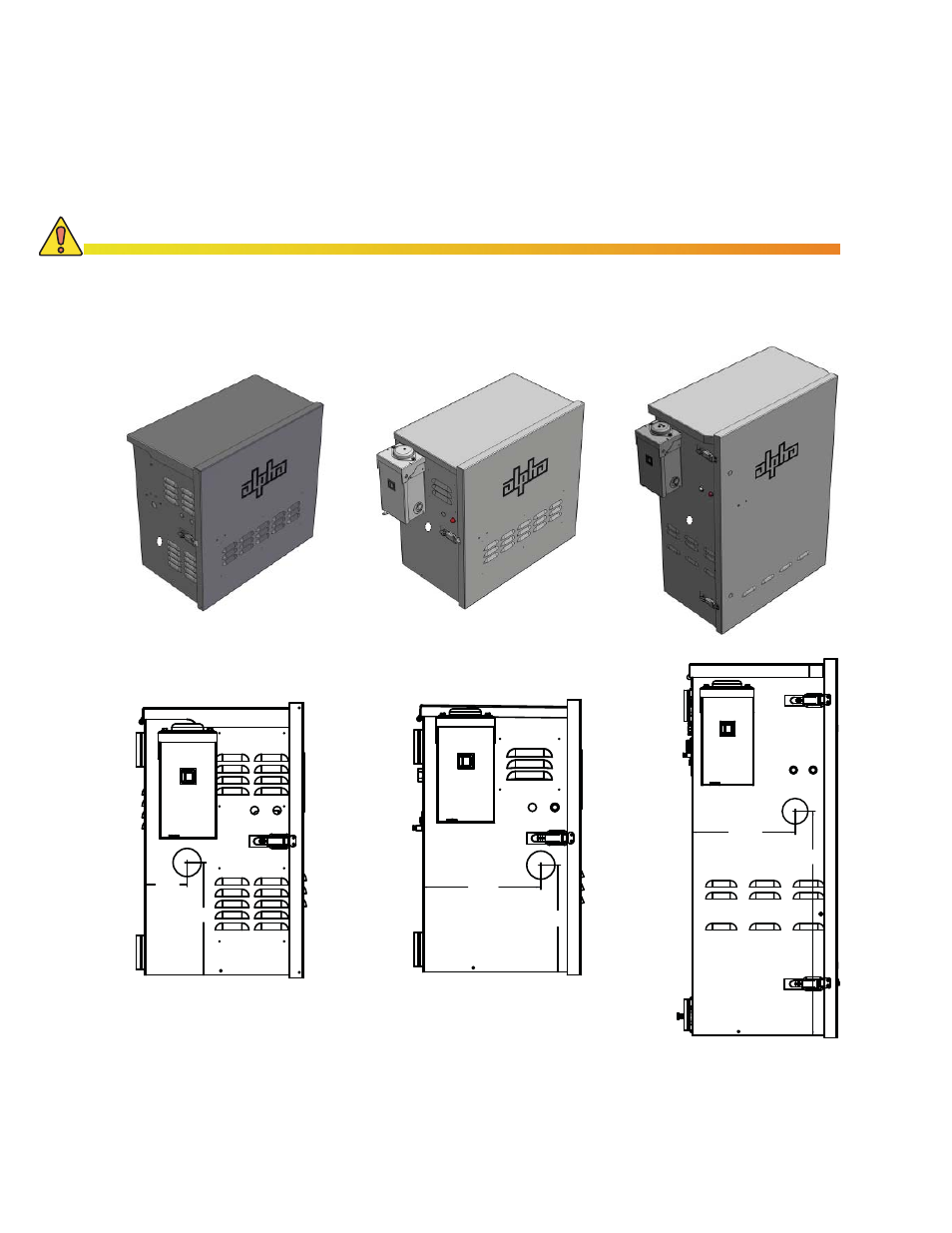

Fig. 2-3, Drilling Locations for Legacy Enclosures
PWE Thermal PWE Classic
PWE-V
10.00"
3.75"
9.50"
10.50"
10.00"
21.75"
3.0 Operation Using the Line Transfer Switch (LTS), continued
3.1 Installing the LTS, continued
3. If the enclosure does not have a generator door, drill a 2-1/2" hole in the side of the
enclosure as shown in Fig. 2-3. Alpha recommends using a 2-1/2" Punch Kit (Alpha P/N
745-131-20) and a grommet with plug (Alpha P/N 745-131-21) with this modifi cation.
