1 installing the enclosure ground wire – Alpha Technologies GEM User Manual
Page 11
11
745-872-C0-002, Rev. B
2.0 Installation,
continued
2.1 Installing the Enclosure Ground Wire
1. Slide the battery slide tray out and verify the area behind the drilling location is clear of
wiring or equipment. Drill a 1/4" hole in the side of the PWE enclosure and collect metal
shavings.
CAUTION!
Before drilling, verify the area behind is free from batteries, wiring, or equipment.

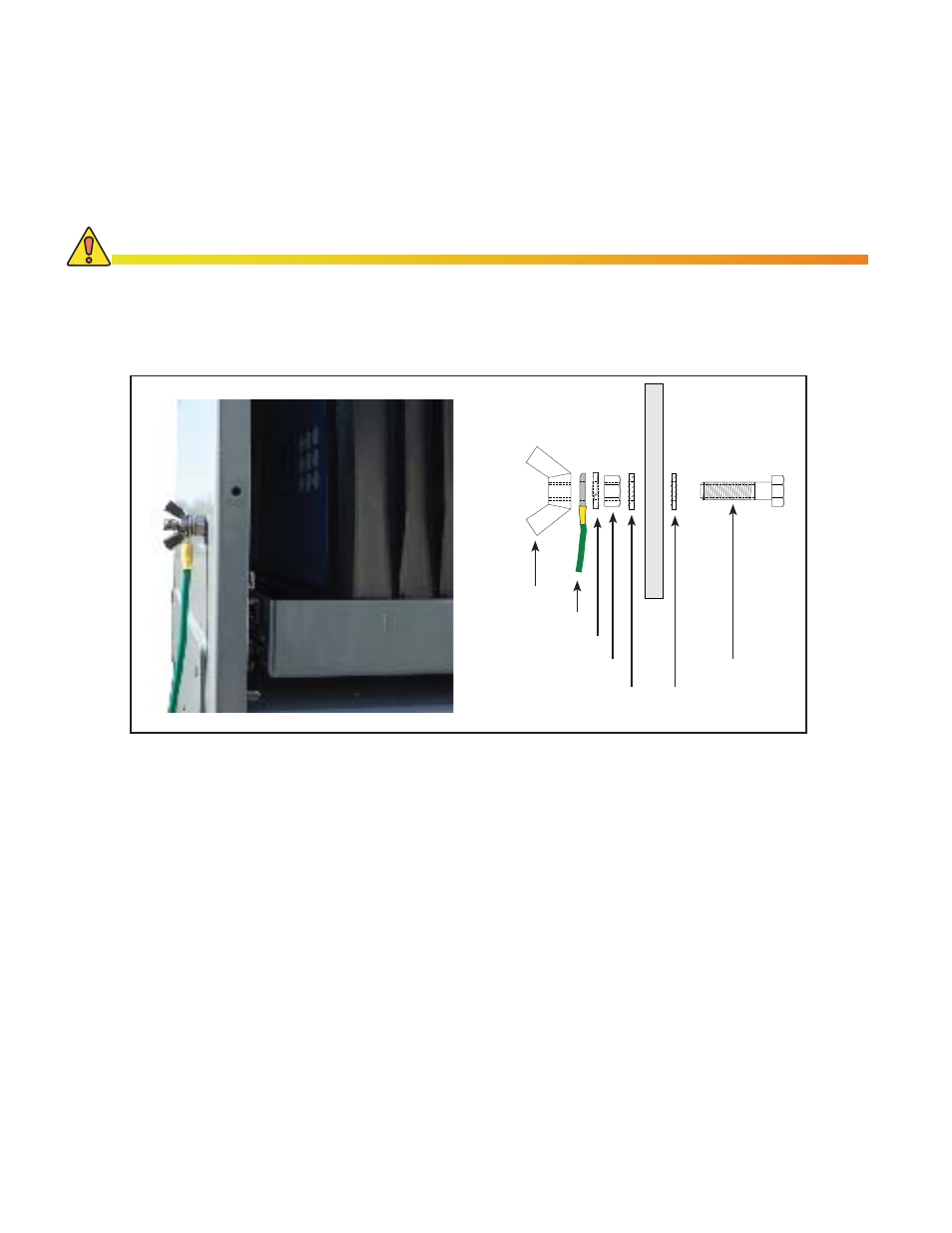

2. Slide the battery tray back in. Install the mounting hardware and ground wire as shown
below.
Wing Nut
Ground Wire
Split Washer
Nut
External Tooth
Lock Washer
External Tooth
Lock Washer
Enclosure W
all
1/4-20 Bolt
Fig. 2-2, Ground Wire Hardware Installation
3. Connect the terminal end of the enclosure ground wire to the 1/4-20" stud located on the
left side of the GEM enclosure and secure with the provided 1/4" nut.
