745-838-C5-001 Rev. A

Alpha AM/AP Series Power Supply

Switch the battery breaker OFF.

• The power supply must be disconnected from line voltage during installation.
• If not already installed, install an RPM card. Refer to RPM instructions for details

.

120VAC

TO

9VAC

CBL-PS-PWR-01-001

Alpha P/N 875-563-10

3 FT CORD

NEMA 6-15P

220V US

220VAC

IEC C13

9VAC

TO

CBL-PS-PWR-03-002

Alpha P/N 875-562-10

Or

CBL-PS-INTFC-01-002

Alpha P/N 875-564--10

Note:Rev. B of this cable does

not have a Violet wire

Necessary Cables

NOTE:

Outer band on

DIN connector

is black on older

ZTT+ models and

silver on newer

models.

Switch to ZTT Only for ZTT power

supplies. Switch to +Silver or +Black

for ZTT+ power supplies, depending

on whether the outer band on the

DIN connector is silver or black.

Lectro ZTT and ZTT+ Power Supplies

Switch the battery breaker OFF.

ZT

T

ZT

T+

ZT

T+

SIL

VE

R

GRO

UND

TAMPE

R

BL

AC

K

CBL-PS-INTFC-02-005

9VAC

120VAC

TO

220VAC

NEMA 6-15P

220V US

9VAC

3 FT CORD

IEC C13

TO

CBL-PS-INTFC-02-005

Alpha P/N 875-566-10

CBLPS-PWR-02-002

Alpha P/N 875-718-10

CBLPS-PWR-04-001

Alpha P/N 875-717-10

Necessary Cables

or

NOTE:

Maintain correct polarity when making this connection. If

reversed, the transponder will be damaged and Vout will

not be readable.

Power Supply

PWR

Power

110V AC Line Input

14 PIN

ONLINE
US
DS

16 PIN

CB

L-

PS

-IN

TR

FC

-0

1-

00

1

Battery

C

B

L-

P

S

-B

A

T-

04

-0

04

18 PIN

DOCSIS Transponder

AlphaNet

R

0A C4 36

BLACK

RED

CB

L-P

S-IN

TR

FC

-01

-00

2

Alph

a

S E

R

I E

S

Tec

hno

ligie

s

AM/

AP

1

2

3

4

5

6

7

8

9

10

NO

COM

NC

LAMP

OUTPUT

BATT

+

-

RED

BLACK

0A C4 36

DOCSIS Transponder

AlphaNet

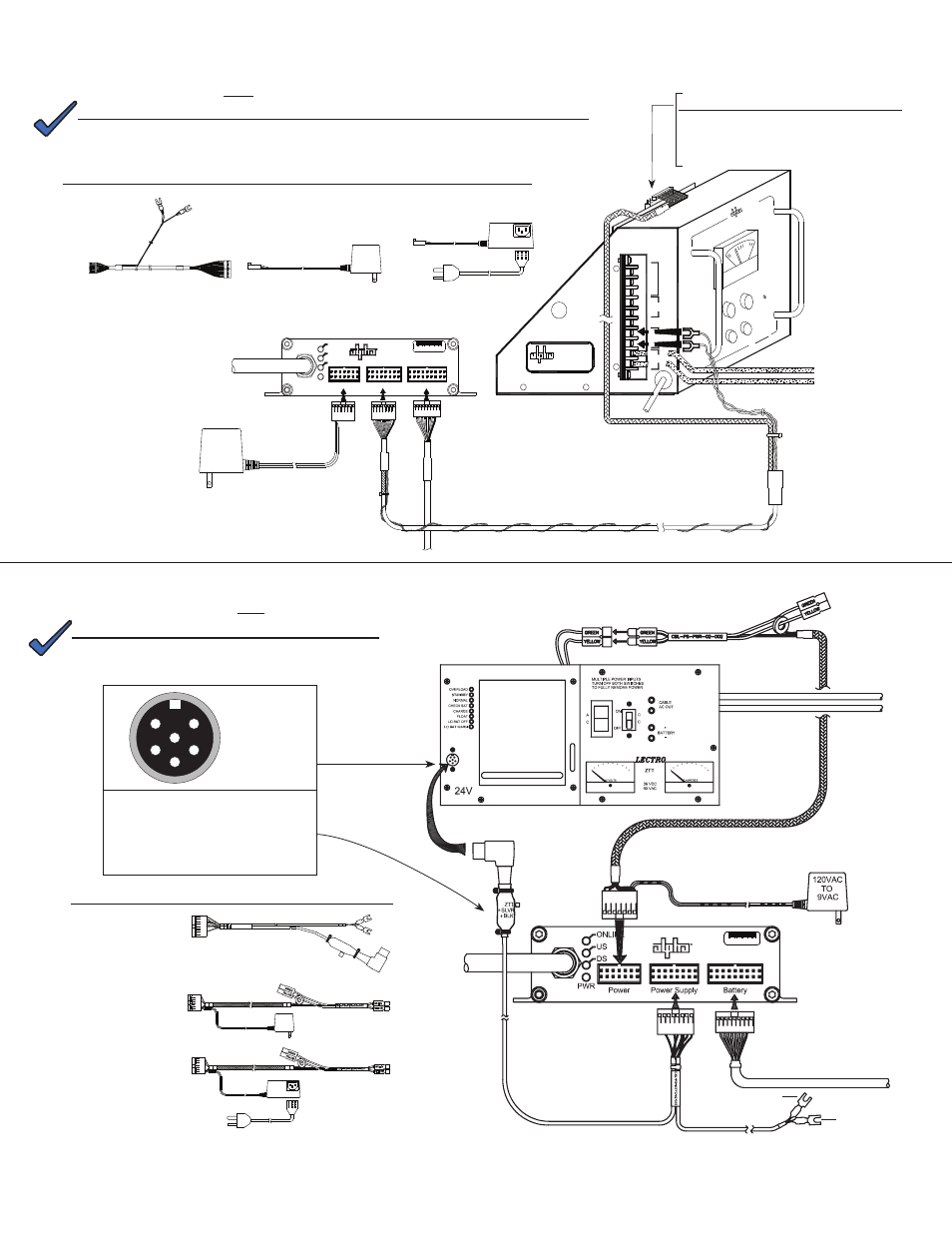

To Battery Harness

Power Supply Interface Cable

p/n 875-566-10

To Batteries

System RF

Cable in

Ground

Tamper

Power Output Cable with transformer

120V p/n 875-718-10, 220V p/n 875-717-10

To Load

The power supply must be disconnected from line

voltage during installation.

Important!

Plug in the 13 pin connector so the black wire is in pin

one (the right-hand pin) and two open pins are on the

left for tamper switch connection. If present, cut the

Violet wire (pin 9).

CBL-PS-INTRFC-01-002

HOT

NE

UT

CBL-PS-INTFC-01-002

Alpha P/N 875-564-10
