Alpha Technologies XP-EDH-A2 - Manual

1 745-838-C5-001 Rev. A
Power

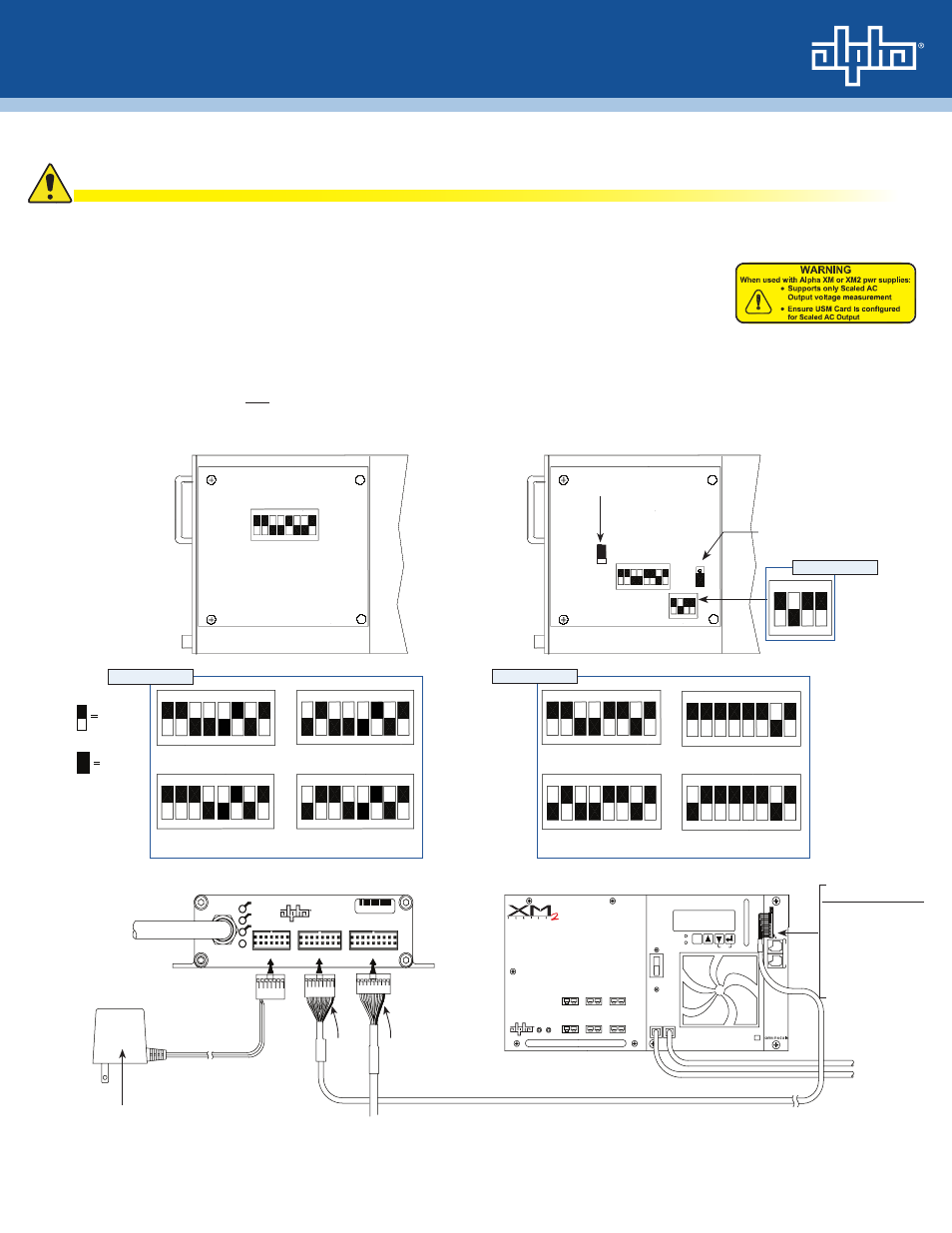

Alpha XP-EDH-A2 Transponder Field Installation Instructions
A grounded Surge Protector (Alpha P/N 162-028-10) or equivalent) is required for all installations.
Do not place the transponder on top of the power supply or the batteries.
Make all battery harness connections to the batteries and connect the interface cables to the power supply before connecting the cables to the
transponder.
First, verify the transponder bears the warning label as shown at right. This indicates the unit is an XP-EDH-A2,
and the jump and switch settings described in this instruction will work properly.
Verify the transponder's MAC address is loaded into the CMTS, and DOCSIS configuration file options should be
set. Detailed instructions for field installation procedures are available in the XP-EDH-A2 Technical Manual
(Alpha P/N 745-838-B2) available at www.alpha.com.
Alpha XM Series 2 Power Supply
1. Switch the battery breaker OFF.
2. Remove the Inverter Module from the power supply. See the power supply's technical manual for instructions.
3. Position jumpers and switches as shown below.
ON
USM2.5
48V and ≥ 20A
ON
48V and <20A
ON
<48V and ≥ 20A
ON
ON
<48V and <20A
ON
JUMPED
ON
ON
1
2
3
ON
USM2
ON
48V and ≥ 20A
ON
48V and <20A
<48V and ≥ 20A
ON
<48V and <20A
ON
JP2: 2-3 Jumped
JP1 (5V Position)
SW1
SW1 Settings: SW1 Settings:
SW2 Setting:
SW1
SW2
UNLATCH RIBBON CABLE RETAINER
BEFORE FULLY REMOVING MODULE.
OUTPUT 1
OUTPUT 2 N + 1
SSR OUTPUT
N L
LRI
W H T
RE
D
B LA
C K
BATTERY
B LK
INPUT
BREAKER
BATTERY
transformer
m o d u l e module
inverter
ALARM
OUTPUT ESC
M
TEMP
PROBE
BLACK
RED
TEST S
S
C O
Y
TMPR
Power Supply
PWR
Power
14 PIN
US
DS
Battery
18 PIN 16 PIN
ONLINE
DOCSIS Transponder
AlphaNet 0A C4 36
System RF Cable in
To Battery Harness
Black
wire
Yellow
wire
To Batteries
Important!
Plug in the 13 pin
connector so that the
black wire is in pin 1 (the
bottommost pin) and two
open pins are left at the
top for tamper switch
connector.
AC voltage input (USM2 cards only)*
Power Supply Interface Cable
cbl - ps - intfc - 01-003, Alpha p/n: 875-565-10
* CBL-PS-PWR-01-001 120V p/n: 875-563-10
CBL-PS-PWR-03-002 220V p/n: 875-562-10 (3' cord with IEC C13 connector and 220V US NEMA 6-15 plug)
CAUTION!
(AC Scaling of
Output Voltage)
