Alpha Technologies Cordex 48-1kW 19 - Manual (Page 41)

CAN TERMINATED
JUMPER SETTING FOR P1
CAN UNTERMINATED
TB1
TB1 FEEDS RECTIFIER 3
TB2 FEEDS RECTIFIER 2
TB3 FEEDS RECTIFIER 1
( TB1 SHOWN )
TYPICAL AC INPUT TERMINAL BLOCK
L2/N L1
RIGHT SIDE VIEW
1. GND
2. CAN H
3. NOT CONNECTED
4. CAN L
5. NOT CONNECTED
6. NOT CONNECTED
CAN OUT RJ12 OFFSET
PIN OUT (J3)
P1
J3
SIZE DWG NO. TYPE
B
SHEET
TITLE
ISSUE
DATE OF
TOLERANCES
SCALE
APPROVED
CHECKED
DRAWN
DESIGN MATERIAL
FINISH
FOR MANUFACTURING WITHOUT ITS WRITTEN CONSENT.
ARGUS TECHNOLOGIES AND SHALL NOT BE COPIED OR USED
THESE DESIGNS AND SPECIFICATIONS ARE THE PROPERTY OF
REVISIONS
LTR DESCRIPTION APPD DATE
REV
X.X 0.04"
X.XX 0.02"
X.XXX 0.01"
[X] 1mm
[X.X] 0.5mm
[X.XX] 0.25mm
030-713-08

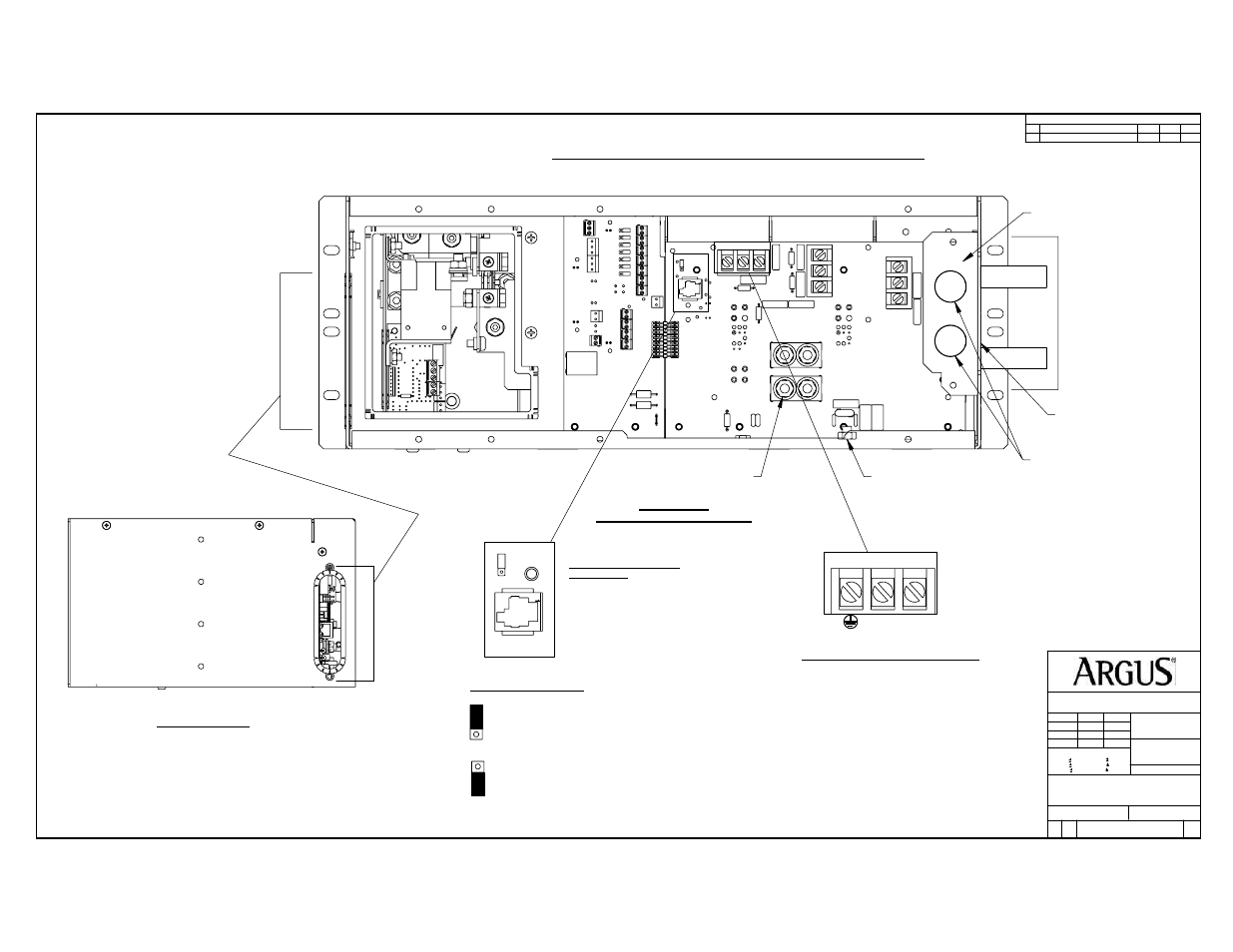

CUSTOMER CONNECTION
3MDL,CXC,DIN DISTRN, 48-1KW
1 3
DGW
EOF
2004/09
2004/09
D2
c 2004 ARGUS TECHNOLOGIES O
B
WES 2004/09
NTS
REV BY
B ADDED LIST 80 S.D.W.
REAR VIEW
(BACK COVER REMOVED)
0.875" KNOCKOUTS
ACCEPT 3/4" CONDUIT
1.125" KNOCKOUTS
ACCEPT 1" CONDUIT
AC INPUT
KNOCKOUT PLATE (REVERSIBLE)
P1
TB1
TB2 TB3
E2 - COMMON (+)
E1 - LIVE ( - )
AC
INPUTS
J3
SIDE ACCESS
DC OUTPUT
LIST 0,9 - 3 MODULES WITH CXC CONTROLLER & DISTRIBUTION
1/4-20 CHASSIS GROUND
USES 1/4-20 HARDWARE
TIGHTEN TO 8FT-LB
