Alpha Technologies Cordex Controller Panel Mount_Rack Mount User Manual
Page 23
Argus Technologies Ltd.
018-587-C0 Rev A WC
Printed in Canada. © 2008 Argus Technologies Ltd. ARGUS and CORDEX are trademarks of Argus Technologies Ltd. All Rights Reserved.
Page 13 of 19

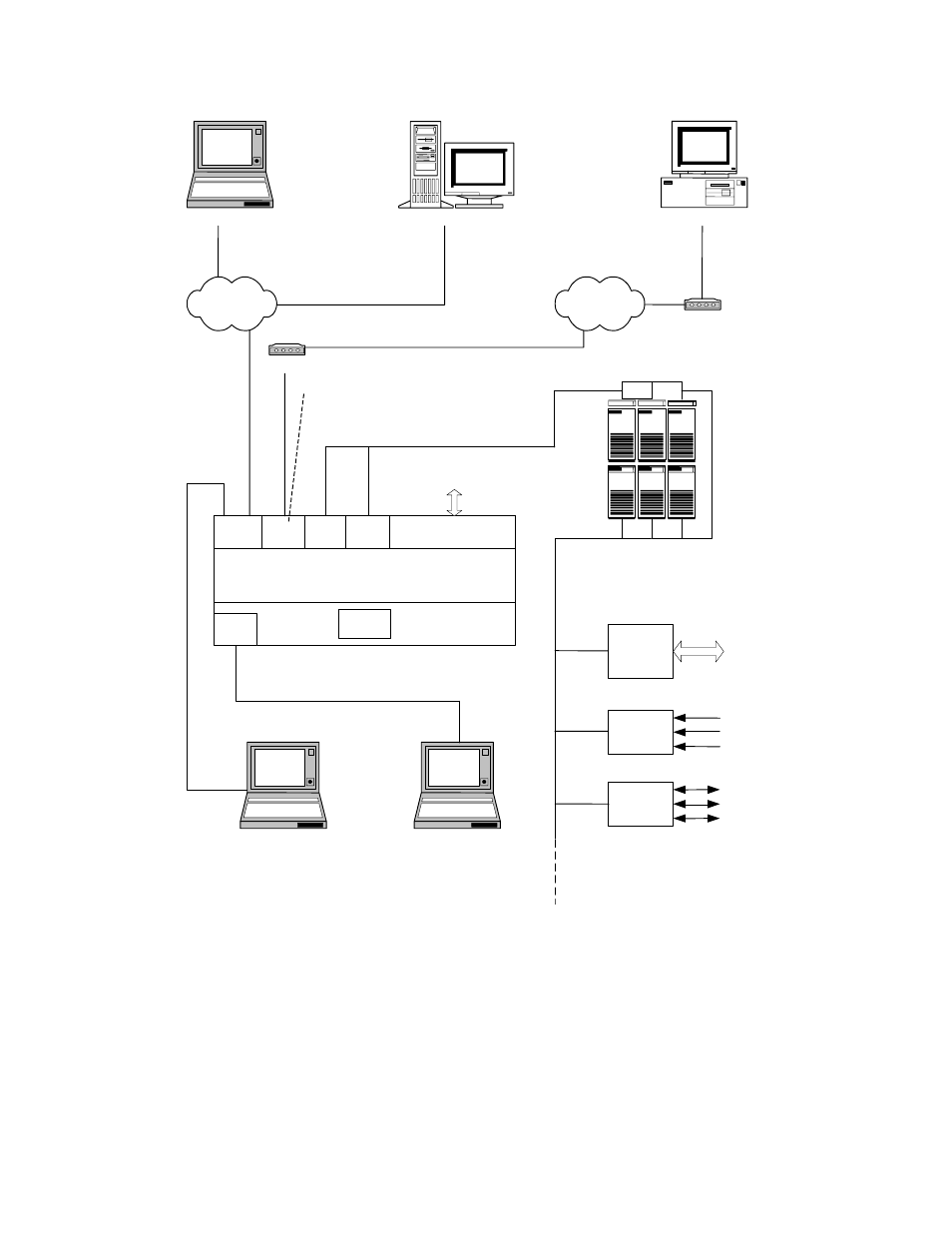

See Figure 9 below for a rendering of CXC connections for power system communications:
SNMP Server
Remote Monitor
Technician's PC
Modem
Modem
PSTN
Cordex Controller (CXC)
LCD
Ethernet
RS-232
RS-485
CAN
Analog + Digital I/O
System I/O
I/O
Expansion
Battery
Cells
3 Phase
Mains
System
I/O
Rectifiers
Intranet
Internet
RS-232
[Communication Expansion Board]
Technician's PC
Mains
Monitor
Battery
Cell
Monitor
Technician's PC
or
Crossover
Cable
Null Modem Cable
Standard Network Cable
Straight Through Cable
For Can Serial Port and Cordex Rectifiers:
CAN Bus continued – last node must be terminated
Rectifier Bus
(RS-485 required for Argus Pathfinder rectifiers)
Figure 9–Communications connections
See also Remote Communications in the Software manual for more details on local and remote communications.
