Sample system drawings, Ample, Ystem – Alpha Technologies Cordex Controller Panel Mount_Rack Mount User Manual
Page 24: Rawings, 6sample system drawings
Argus Technologies Ltd.
018-587-C0 Rev A WC
Printed in Canada. © 2008 Argus Technologies Ltd. ARGUS and CORDEX are trademarks of Argus Technologies Ltd. All Rights Reserved.
Page 14 of 19
6
Sample System Drawings

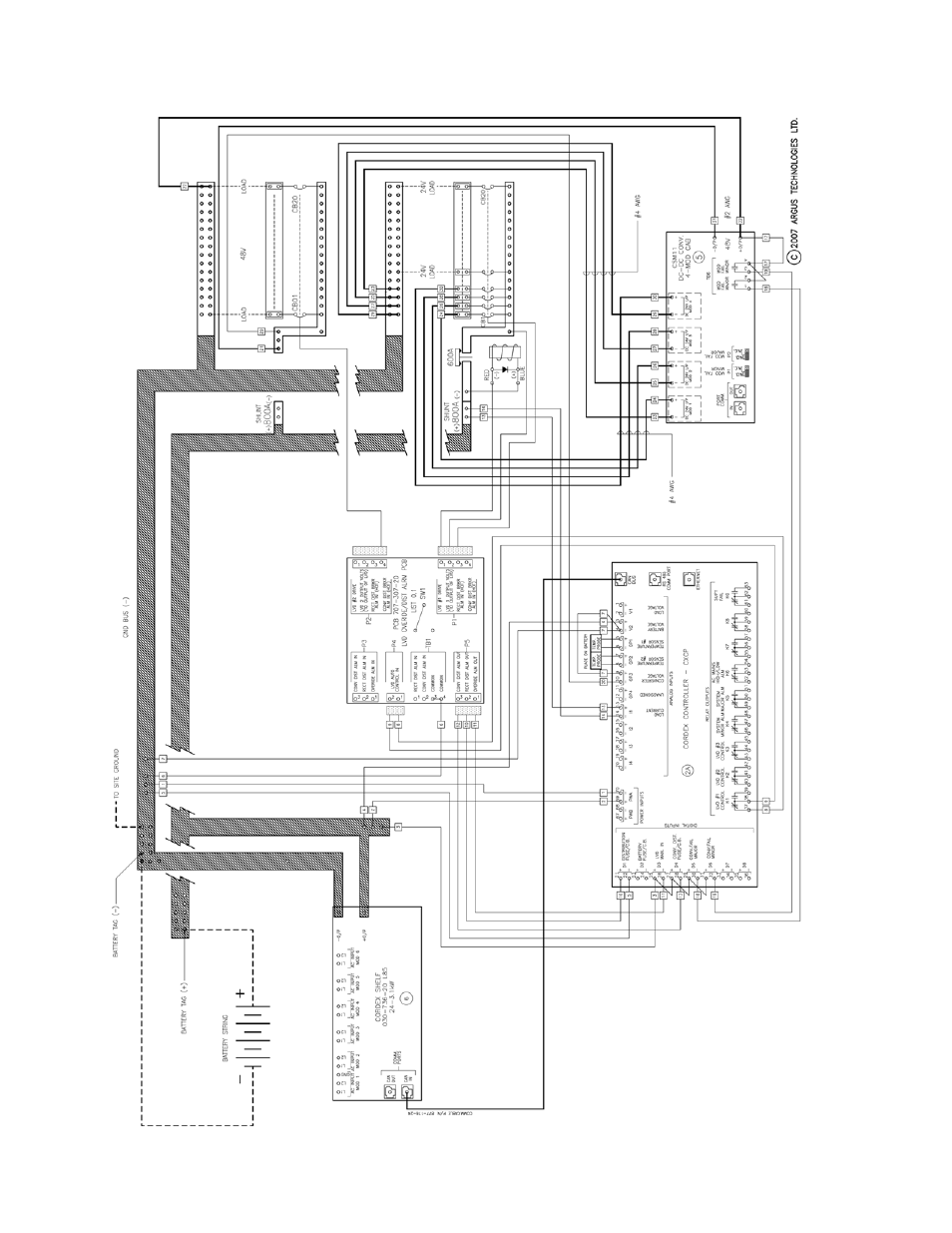

Figure 10–Sample system 1, CXCP with 2-tier Vista, LVD, temp comp, CSM11, and Cordex 24-3.1kW
