Alpha Technologies Te25xh - Manual (Page 36)

SCALE 1 : 5
DETAIL B
5 SEE NOTES 6 4
TYP 4 PLACES
DETAIL A
SEE NOTES
SCALE 1 : 5
4
TYP. 4 PLACES
7

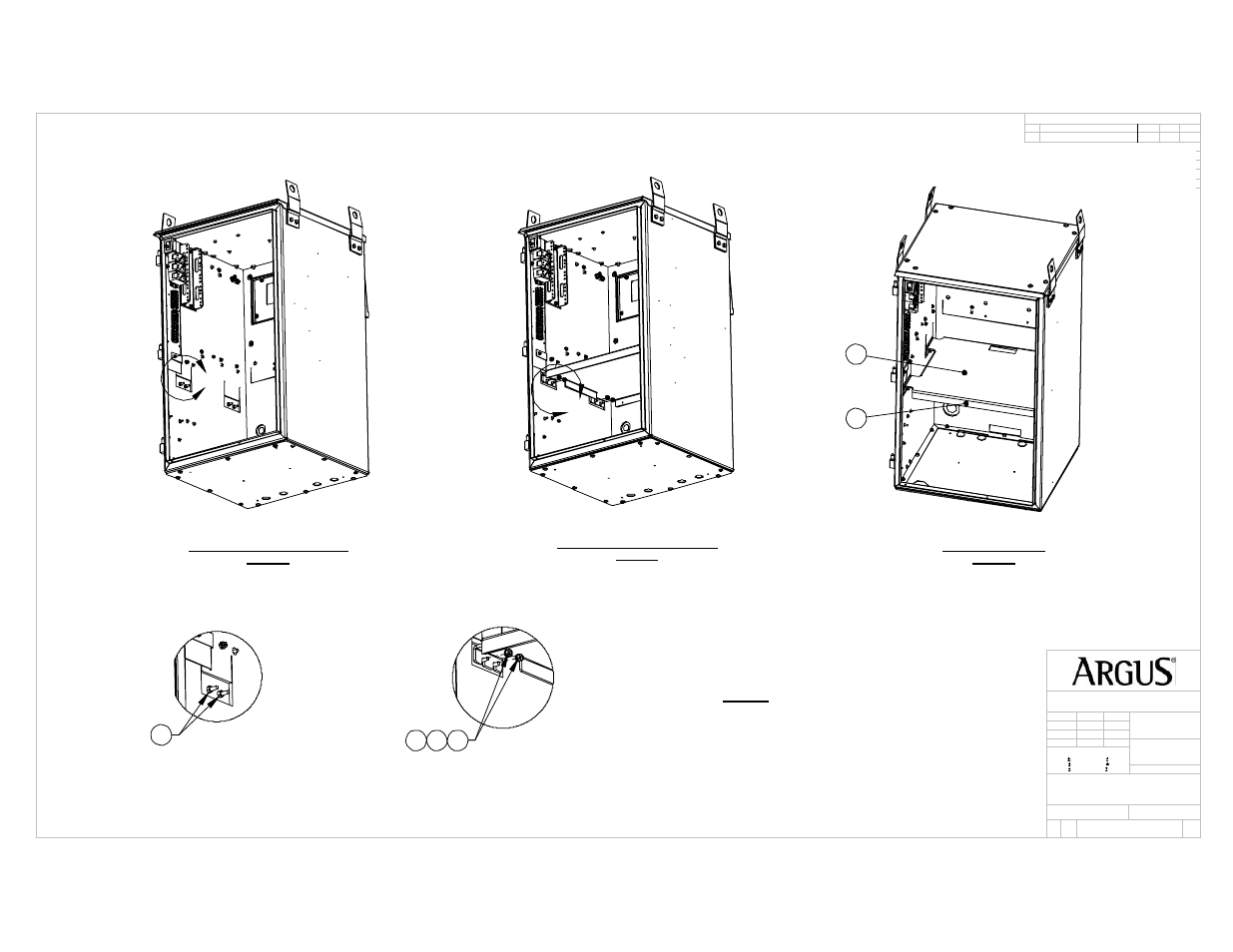

STEP 3
ISOMETRIC VIEW
1
STEP 1
BOTTOM ISOMETRIC VIEW
A
NOTES:
STEP 1: INSTALL NUT (ITEM 4) ONLY AS SHOWN IN DETAIL 'A'
STEP 2: LOWER SHELF (ITEM 1) INTO POSITION BY TILTING
LEFT HAND SIDE IN FIRST UNTIL IT SITS PROPERLY
ON PROVIDED MOUNTING STUDS
STEP 3: SECURE SHELF WITH PROVIDED HARDWARE
(ITEMS 4, 5 & 6).
STEP 2
BOTTOM ISOMETRIC VIEW
B
