ReCeSSed / MMR, MMRA SG TID
MMR, MMRA Slot GRID
Technical Installation Data
InStAllAtIon InStRuctIonS
Adjust Slot Grid opening to prescribed dimensions.
1.
Remove shielding from fixture and set aside.
2.
Remove supply wire access plate from top of fixture housing.
3.
Attach access plate to supply flex.
4.
Raise fixture to ceiling. Make electrical connections to fixture and reattach access plate.
5.

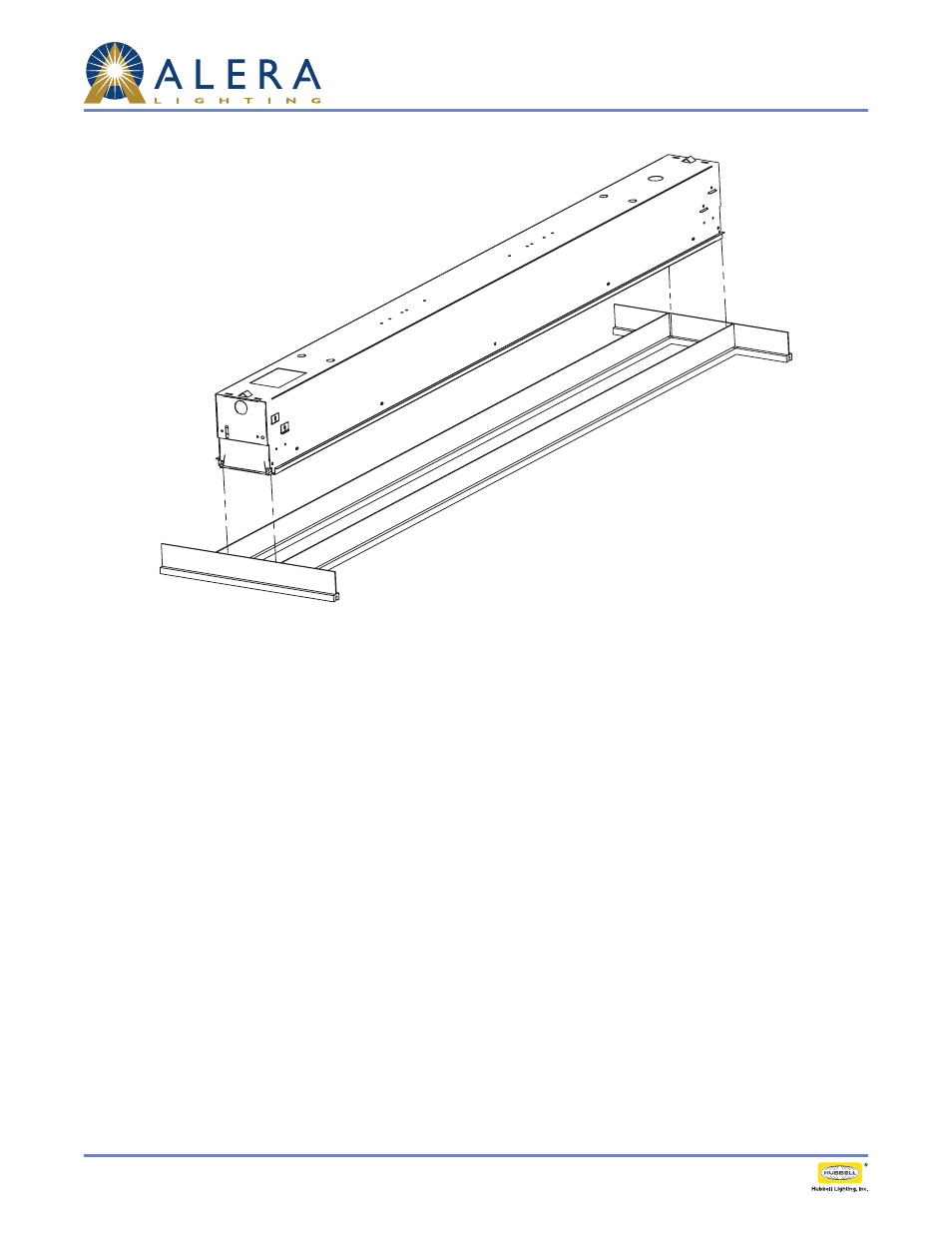

Pass fixture over Slot Grid and lower until the fixture is flush with ceiling.
6.
Install lamps in fixture.
7.
Install shielding.
8.
