BeAMS / S6 WM TID

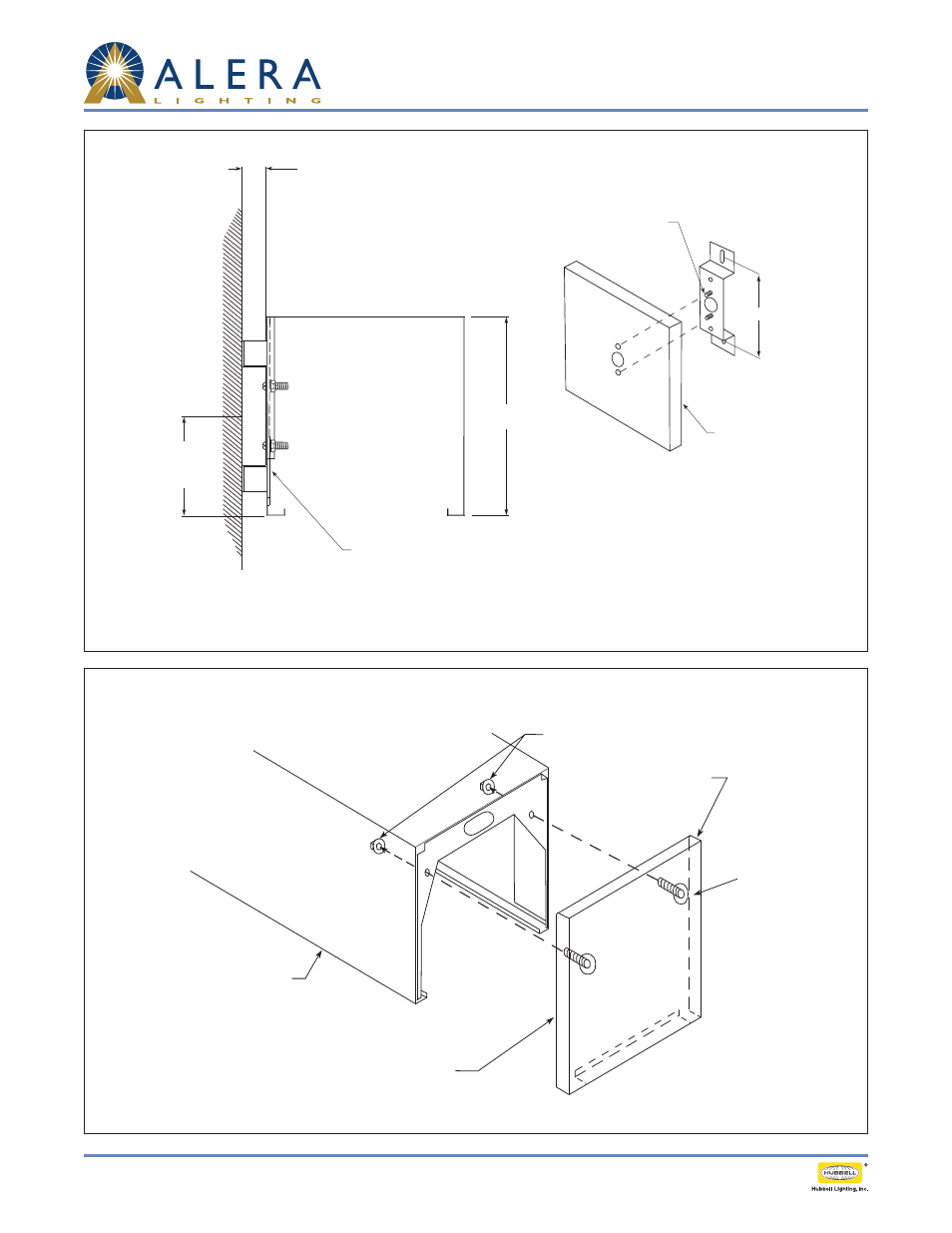

s6 Wall Mount
Technical Installation Data
3" bottom of
fixture to center
of wall bracket
6"
Screws are pre-set
in bracket
3/4"
Install 2" wide brace inside fixture housing.
Secure with washers and nuts provided.
4 1/2" square copy
2 3/4" center to center
Secure bracket to
j-box or wall with
fasteners by others
Nuts supplied with
end of row end cap
End of row end cap
Bolts welded to
inside of end cap
Housing
All end cap flanges
to inside of housing
