Page 2/2 Rev. 09/04/09 BeAMS / F4 SurFace SuSpended TId
F4 SurFace SuSpended
Technical Installation data

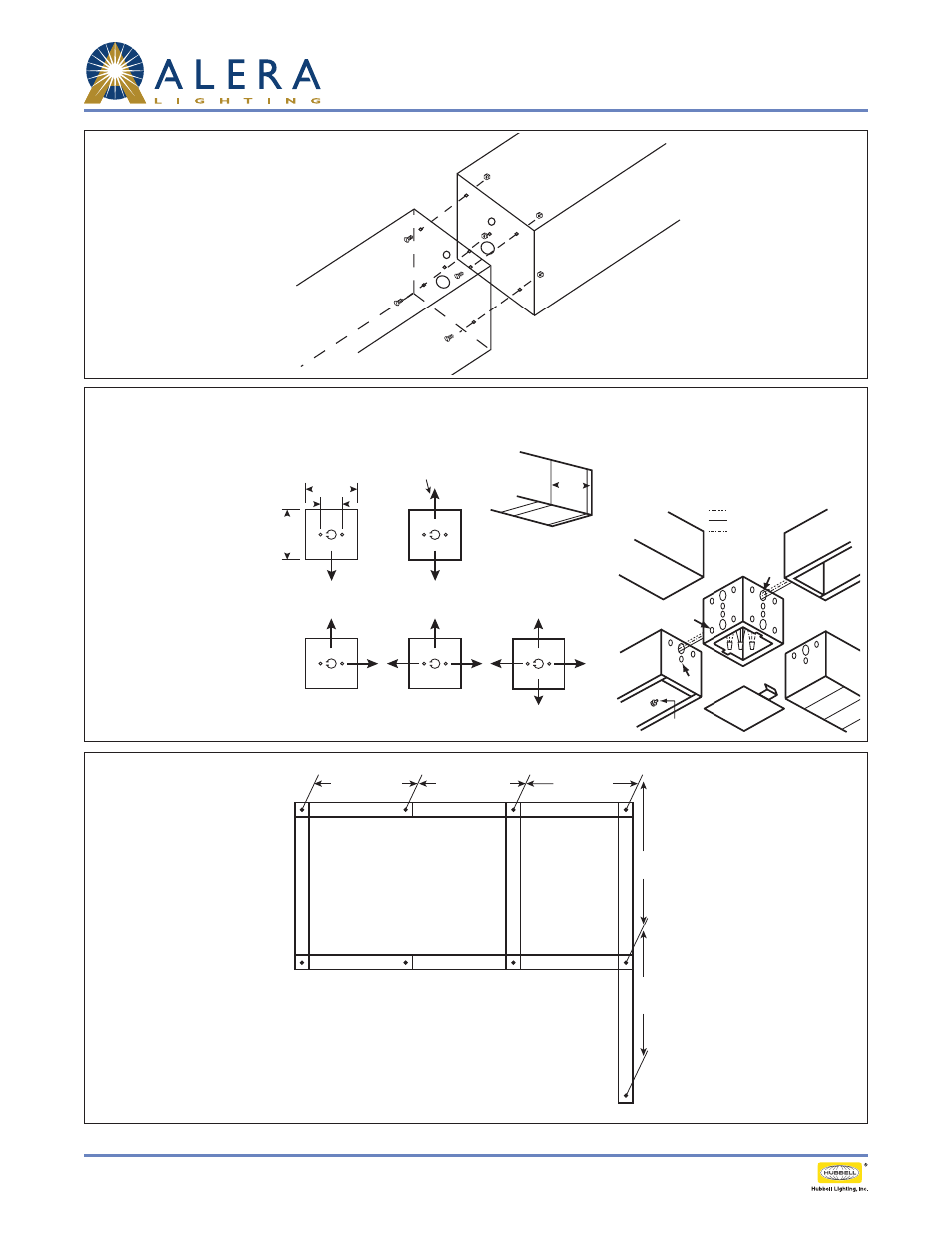

Connectors
Installation Instructions:
1. Install pendant connectors (using
knockouts “A” and “B”) with stems or
cable.
2. Bring fixture to connector and insert
leads through hole “D”.
3. Insert pre-driven screws in end plate
through keyslots in connector. Fixture
will hang.
4. Using 1/4-20 screw and hex nut
(provided) fasten fixture to connector
thru hole "E". Tighten hex nut and
screws (used in step 3) from inside
connector.
5. Make service lead connections inside
connector.
6. Install snap-on cover.
Connector boxes are needed for all patterns with corners.
Knockout Chart:
A- 7/32" Diameter knockout
B- 7/8" diameter knockout
C- keyslot
D- 1" diameter hole
E- 9/32" diameter hole
Indicates opening on
side where fixture
may be mounted.
White wire
Black wire
Green wire
6" typ
1 5/8"
6" typ
6" min
7 1/2"
max
End
89956
Straight
89957
Adjustable Wall
Connector
89987
For surface mount
contact factory.
90° Corner
89958
Tee
89959
Cross Tee
89960
Cover Plate
E
C
D
1/4-20-1/4 R.H.M.
screw w/ hex nut
501/2" or 991/2" 531/2" or 1021/2" 55" or 104"
4' or 8' pendant suspension points
55" or
104"
50 1/2" or
99 1/2"
