CuRveS / SOLO SuSpended TId

SOLO SuSpended

Technical Installation data

SectiOnS

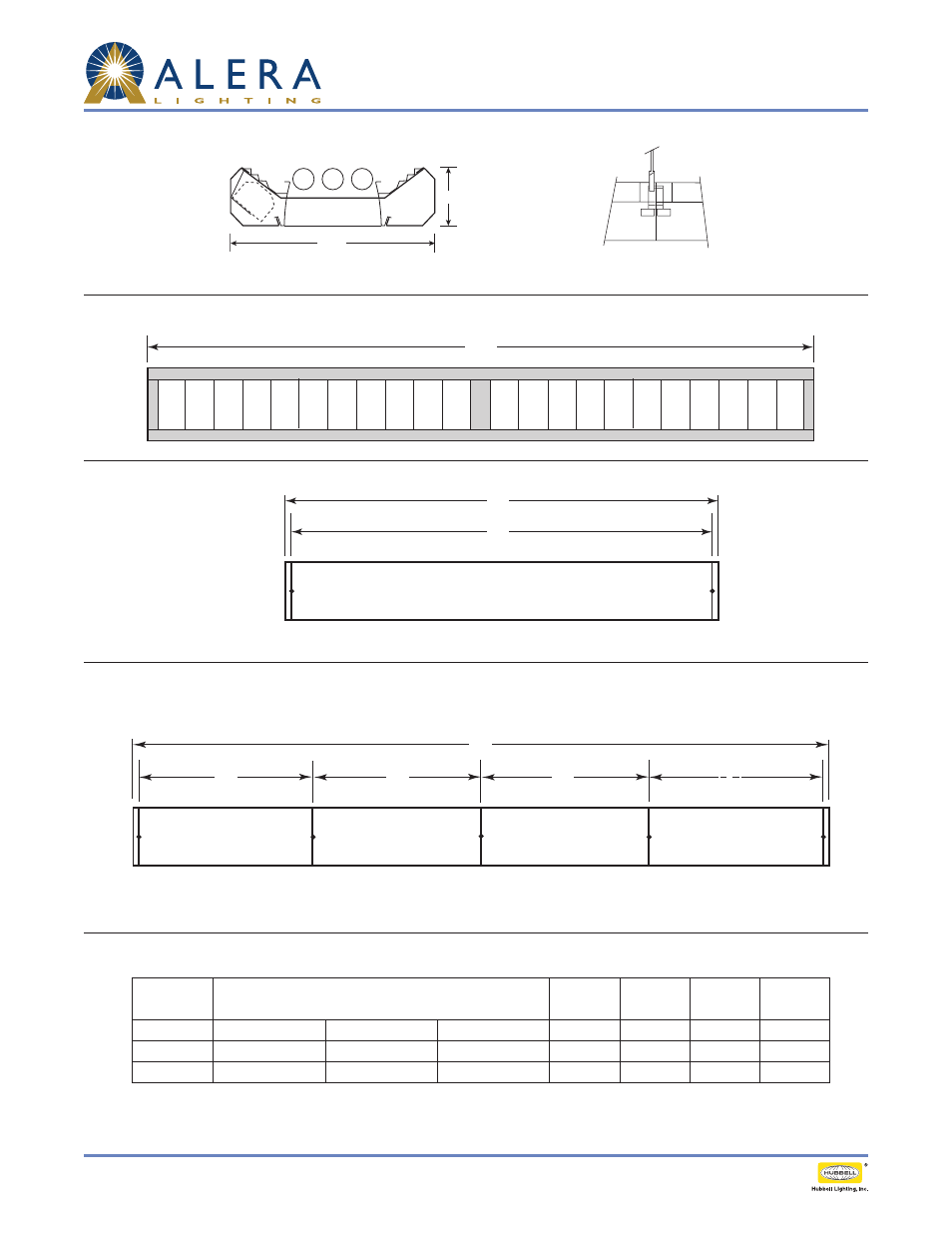

BOttOm View

data chart

SingLe mOunting

Cross Sections

2 3/4"

A

Nominal

Length

Approx. Weight

A

B

C

E

1-lamp

2-lamp

3-lamp

4'

12 lbs.

12 lbs.

12 lbs.

48 1/8"

47 1/2"

192 1/8"

48"

8'

21 lbs.

21 lbs.

24 lbs.

96 1/8"

95 1/2"

384 1/8"

96"

12'

30 lbs.

33 lbs.

36 lbs.

144 1/8"

143 1/2"

576 1/8"

144"

Connection Section

9 1/2"

rOw mOunting

B

4 and 8 ft.

C

B

E

E

E

Note: Suspension data is computed using the standard aircraft cable assembly. The use of rigid stems will yield different data.
Please consult factory for stem data.

8'
